The multimedia applications have strict requirements on network parameters,
particularly, QoS parameters such as throughput, delay, jitter, packet loss
and collision (Saraireh et al., 2007; Dogman
et al., 2012). Time-sensitive applications were assigned as high
priority traffic while time-insensitive applications were assigned as low priority
traffic. Traffic differentiation can be achieved by accessing the Type of Service
(ToS) field in the Internet Protocol (IP) header. In the ToS field up to six
classes can be handled where class zero is assigned for high priority (Muller,
IEEE 802.11 MAC protocol is categorized into distributed and centralized control
schemes (ISO/IEC 8802-11, 1999). The centralized scheme
is not considered due to its complexity and lack of scalability. However, the
distributed scheme is considered due to its simplicity, scalability, robustness
and ease of implementation (i.e., each node can operate as a source, destination,
or a router). For the distributed scheme, QoS support is classified as priority-based
and fair scheduling-based (Pattara-Atikom et al.,
2003). In this work the priority-based is employed due to its simplicity.
The packets transmission in IEEE 802.11 MAC protocol is affected by many parameters.
One of these parameters is the minimum contention window (CWmin).
CW is considered as an integer number of time slots that a wireless device needs
to wait before it can transmit a packet (ISO/IEC 8802-11,
1999). It is within range of two parameters of CWmin and CWmax.
The IEEE 802.11 sets a default value of 31 and 1023 time slots for CWmin
and CWmax, respectively. CW has the responsibility to determine the
probability of medium collisions; therefore CWmin and CWmax
should be set to realize the balance between collision probability and medium
The value of the CW is unchanged when a packet is successfully transmitted. But, if there is a collision between two or more packets due to more than one node simultaneously transmitting, the current value of CW is adjusted according to:
where, m is the number of transmission attempts and CW = CWmin+1
(Saraireh et al., 2007) and (ISO/IEC
8802-11, 1999). Larger values of CWmin introduce an improvement
to the performance of the transmission by reducing the packet drop probability
and increasing throughput values but in some situations the packet delay may
be increased (Chatzimisios et al., 2005).
The IEEE 802.11 was proposed with minimal QoS provision and supports a best
effort service. This minimal support is insufficient for transmitting multimedia
Several researches have been carried out to improve the performance of the
IEEE 802.11 based on modifying the value of the CW. In Li
and Battiti (2003) and Li et al. (2007)
an analytical model has been proposed. Tt computes the throughput and packet
transmission delays to support service differentiation. The proposed model employed
the scaling of the CWmin value and the packet length according to
the priority of each traffic flow. The simulation results of the proposed approach
showed that good accuracy can be obtained to support the performance evaluations.
According to the results of the proposed analytical approach in (Chatzimisios
et al., 2005), the CWmin, CWmax size and the
data rate considerably affects the performance of IEEE 802.11 protocol for channel
access. The results showed that high values of CWmin size improved
the performance in terms of lower packet drop probability and higher throughput
values but packet delay in certain cases is increased.
In Pang et al. (2004) a self-adaptive CW adjustment
as presented. The results indicated that the initial parameter settings affect
the performance of the IEEE802.11 MAC protocol.
In Gannoune and Robert (2004) a dynamic for the CWmin
was introduced to improve the performance of the IEEE 802.11. In this technique
the channel utilization, throughputs were improved while the delay and jitter
were reduced for the high priority traffic.
The studies in Li and Battiti (2003), Bononi
et al. (2004), Cali et al. (2000),
Wu et al. (2002) and Chen
et al. (2003) showed a major enhancements in the network performance
could be achieved by modifying the MAC protocol transmission parameters (e.g.,
CWmin, CWmax, number of retransmission). But the proposed
methods only considered a fixed packet size, limited number of the QoS parameters
and only one type of traffic.
Moreover, some of the proposed approaches were based on major modifications
of the IEEE 802.11 standard as in (Liu and Hsu, 2005).
The proposed approaches in (Wu et al., 2002;
Song et al., 2003) were only effective when there
are many active nodes in the same Independent Basic Service (IBSS), (i.e., high
competition between nodes and under heavily loaded networks). The adaptive mechanisms
proposed in (Peng et al., 2002) for adjusting
the CWmin value were based on that all nodes have data packets ready
for transmission and also based on estimating the number of contending nodes
such as in (Chen and Wu, 2004). These assumptions are
not appropriate for networks with burst traffic.
Wu et al. (2002), Chatzimisios
et al. (2005), Song et al. (2003)
and Aad et al. (2002) suggested decreasing the
CW value with static scale, if a successful transmission occurs. The main issue
in those schemes that, the network load is not considered.
In Bianchi and Tinnirello (2004), Deng
et al. (2008) and Bononi et al. (2004)
the CW size was adjusted based on the estimated number of nodes. The main problem
in this approach is high power consumption (Balador et
al., 2012). Deng et al. (2004) and Kwon
et al. (2003) suggested to increase the CW value in any node overhearing
a collision. In Lin et al. (2008), the size of
CW was changed exponentially and linearly, according to the network load.
In Zhang et al. (2008), the CW sized was calculated
according to the statistical data collected by each node and the number of successful
The study proposed in Barry et al. (2001), Ayyagari
et al. (2000), Chen et al. (2002),
Gannoune (2006), Upadhyay et al.
(2013) and Ghazvini et al. (2013) was based
on CW differentiation (CWD). In Ayyagari et al. (2000),
the small values of CWmin and CWmax were assigned to high
priority traffic. While large values of CWmin and CWmax
were assigned to low priority traffic. Another example that used the CWD scheme
to provide service differentiation was proposed in (Chen
et al., 2002). In this approach the CW range was dynamically adjusted
with respect to the variation in the number of active nodes.
In the CW Separation (CWS) scheme, the CWmin and CWmax
values of high priority traffic are completely separated from the Cwmin
and CWmax of low priority traffic. The scheme in (Deng
et al., 2004) is an example of the CWS. Two different CW values for
high and low priorities were specified.
Significant research efforts were carried out but these studies experienced several drawbacks. For instance, some of these approach required exchange of control messages between nodes; others imposed sophisticated computations and significant adjustments to the structure of the IEEE 802.11 standard. Some of previous researches depended on the current network situations without considering the past history of the network. Most of the proposed approaches statically set the differentiation parameters. These parameters were only used at the initial transmission. The parameter settings were not based on the variations of the traffic load and did not lead to service differentiation. Some of the proposed approaches only considered one or two QoS metrics particularly delay and throughput. None of the proposed approaches evaluated the QoS of multimedia applications.
Therefore; the directions of interest in this study are: (1) MAC protocol parameter CW is dynamically adjusted, (2) different QoS metrics are evaluated such as throughput, delay, packet loss, jitter, MAC efficiency and collision rate.
DESCRIPTION OF THE PROPOSED SCHEME
The proposed approach is represented in Fig. 1. The first
part is the classification, it classifies the traffic into high and low priorities.
This is achieved by accessing the ToS bit pattern in the IP header. The second
part is the recording part. Each node record the required information such as
the number of generating packets, sent packets, successfully acknowledged packets
and collided packets.
|| Adaptive service differentiation scheme
In the calculation part, CR, CRV and packet loss rate are computed and fed
to the final part. The final part makes the decision on choosing appropriate
Contention window adjustment after successful transmission: The packet
loss rate and CRV are required by each node to adjust the CW size. CR and the
average collision ratio at the current history window wi, Rwiaverage
values are computed using Eq. 2-3. The values
are obtained when part of previous collisions are considered with the current
where, Num(collisionswi[N]) is the number of collisions for node N that is extracted from the history window wi, Num(successfulwi[N]) represents the number of packets that have been successfully acknowledged for node N that is extracted from the same history window wi, Rwicurrent[N] is the current collision ratio of node N.
The sliding window wi is employed to keep continuous knowledge about transmission
history. An Exponentially Weighted Moving Average (EWMA) (Crowder,
1989) is used to compute Rwicurrent[N] as in Eq.
where, Rwicurrent is the current collision ratio for node N; λ is a weighting factor which determines the memory size; Rwi-1average represents the previous average collision ratio that is computed from the previous history window (wi -1); while Rwiaverage is the average collision ratio at the current history window wi.
The packet loss rate of high priority node Ni, (l[Ni]) is calculated using Eq. 4. This is computed based on the number of successfully received acknowledgements Num(success_Ack[Ni]) for a node N; i stands for high priority class and the number of generating packets at the sender Num(gen_packets[Ni]). Packet loss rate is updated at a constant period of time. The update period is chosen to be sufficiently long in order to get good reactivity (i.e., provided the loss rate value when required) and not to be too short in order to avoid the complexity (i.e., Less computation):
The packet loss rate is chosen since it provides a relevant indication of the application perceived QoS. Therefore, when the packet loss rate (l[Ni]) of a given high priority node exceeds a certain threshold (l_ths[Ni]) (the value of this threshold is chosen to be 5% to meet the QoS for time-sensitive applications), the CW of the high priority node is rapidly decreasing as depicted in Eq. 5, in order to reduce the delay and to avoid excessive packet loss. As a result of the sharp decrease in the CW size of the high priority node, the high priority node becomes more aggressive to access the medium which in turn increases the probability of collisions over the medium:
The increase in the number of collisions leads to an increase in the CRV value of low priority traffic (i.e., CRV [Nj]>0), this forces the low priority node to gently increase its CW size as described in Eq. 6:
where, CWnew[Ni] is the new CW for high priority traffic and CWnew[Nj] is the new CW for low priority traffic, CWnew-1[Ni] and CWnew-1[Nj] are the previous CW for high and low priorities, respectively. f is a scaling factor chosen based on extensive simulations for several scenarios, Rwiaverage[Ni] and Rwiaverage[Nj] represent the average collision ratio of high and low priority traffic, respectively.
To ensure that scale factor f parameter is carefully chosen, many simulations are executed using different topologies and traffic loads. Therefore; 10 nodes are used to transmit CBR traffic to 10 destinations.
In Fig. 2a-b, the relationship between
the f and average delay and throughput are illustrated. As shown in Fig.
2a-b, the appropriate value f is around 3, since it provides
trade-off between average delay and throughput. As a result, it will be considered
in the simulations.
|| (a) Average delay and (b) Average throughput
When the packet loss rate of high priority traffic goes below l_ ths[Ni], the CW of the high priority node is gently decreased as represented in Eq. 7:
The gradual decrease in the CW size of the high priority node leads to a reduction in the CRV value of low priority traffic, once the CRV value of low priority traffic becomes below zero (i.e., CRV [Nj]<0), a low priority node gradually decreases its CW as described in Eq. 8. The gradual decrease in the CW size of the low priority node provides more access opportunities. This in turn improves the whole network performance:
Note that, the CW size of low priority traffic is gradually changed according to the computed CRV value (CRV [Nj]). So, if CRV [Nj]>0, the low priority node assumes high contention over the network and gradually increases its CW using Eq. 6 to reduce the collisions. When CRV [Nj]<0, a low priority node assumes less contention and therefore decreases its CW using Eq. 7 to reduce the idle time slots.
Contention window adjustment after unsuccessful transmission: As in the case of successful transmission, the CR and the Rwiaverage values can be obtained using Eq. 2 and 3. Large values of Rwiaverage indicate that many nodes contend to access the medium, whereas, small values of Rwiaverage indicate fewer nodes contend to gain access to the medium.
Packet loss rate (l [Ni]) in Eq. 4 and packet loss threshold (l_ths[i]) is also used to maintain a high level of QoS for high priority traffic and to provide service differentiation. For low priority traffic, the obtained CR and Rwiaverage[Nj] values are used to limit the access of low priority traffic, particularly in overloaded networks. To achieve this goal, each high and low priority node computes its CR and Rwiaverage values, as the collision ratio value is an indication of the number of active nodes. Thus, low priority nodes use the CRV value to update their CW size. The CRV value determines whether the current collision ratio is smaller or larger than the previous one. High priority nodes use the packet loss rate (l [Ni]) and packet loss rate threshold (l_ths[i]) to update their CW size in order to maintain high throughput and less delay. For high priority traffic and after a collision, the packet loss rate value is examined. If the packet loss rate (l [Ni]) is greater than the packet loss rate threshold (l_ths[i]), the CW size is slightly increased in order to minimize the wasted time slots as described in Eq. 9:
If the packet loss rate (l [Ni]) is smaller than the packet loss rate threshold (l_ths[i]), then the CW size is rapidly increasing to reduce the collision and the retransmission of the collided packets as described in Eq. 10:
For low priority traffic and after unsuccessful transmission, the CRV [Nj]
value is examined. If the CRV [Nj] is greater than zero, the value
of CW is sharply increased by a multiplication factor (f+2) to reduce the collisions
and to protect the high priority traffic from degradation as in Eq.
If the CRV [N j] value is less than zero, the CW size of low priority
traffic is also increased by a smaller multiplication factor as shown in Eq.
In order to ensure that the CW sizes of the two classes do not go below the CWmin or do not exceed the CWmax, the following conditions are set:
||If (CWnew[Ni] or CWnew[Nj])<CWmin
then (CWnew[Ni] and CWnew[Nj])
||If (CWnew[Ni] or CWnew[Nj])>CWmax
then (CWnew[Ni] and CWnew[Nj])
The high priority traffic gains smaller values of CW than low priority ones. This enables a high priority node to gain more access to the wireless medium which results in a smaller delay and a smaller packet loss rate. Simultaneously, low priority is not ignored. The value of CW for both priorities is varied in an adaptive manner, in which service differentiation is provided. High priority traffic has small values of delay and packet loss rate and low priority traffic has high throughput and fewer drops at the buffer.
To avoid starvation for low priority traffic, after each update of the CW,
the adaptive contention windows differentiation approach examines the values
of this parameter. If CW experiences high values (these values were determined
by extensive simulations), the proposed scheme sets this parameter as shown
in Eq. 13 and 14.
A full description of the adaptive contention windows differentiation schemes is provided in Fig. 3:
The proposed approach tries to narrow the gap between the two priorities in normal operating conditions and extend this gap when the network becomes overloaded.
This can be described as follows: Smaller values of packet loss rate and collision ratio indicate that the network operates in normal conditions. As a result, high priority nodes increase slightly their CW in order to give low priority nodes more opportunities to access the channel. Simultaneously, due to the increase in CW of high priority nodes, the CRV values of low priority nodes decrease and go below zero. Because the current collision ratio is less than the previous collision ratio and low priority nodes decrease their CW value, this improves their access to the medium and finally achieve better overall performance. This in turn reduces the differentiation between low and high priorities. For a heavily loaded network, when the packet loss rate of high priority nodes exceeds the packet loss rate threshold (i.e., l[Ni]>l_ths[Ni]), high priority nodes decrease their CW value as they attempt to reduce their delay and to avoid excessive packet losses. Hence, after, the reduction in the CW of high priority nodes, results in more collisions.
|| Description of proposed scheme
Subsequently, this increases the CRV values of low priority nodes which in turn make low priority nodes increase their CW value. This increases the service differentiation gap between high and low priorities in order to protect high priority traffic from the impact of low priority traffic at overloaded conditions.
Simulation model: To evaluate the validity of the proposed service differentiation scheme and compare their functionalities with the standard IEEE 802.11 DCF scheme, a network models with different scenarios have been proposed for the simulations.
The proposed model uses 40 fixed nodes which are randomly arranged in an area
of 100x100 m to represent a wireless ad-hoc network as shown in Fig.
4. The nodes in this model are classified into high priority nodes that
transmit high priority CBR traffic and low priority nodes that transmit low
priority CBR traffic.
|| Random IBSS single-hop topology
All nodes in this model could hear each others transmission. The packet
sizes for CBR traffic are 512 and 800 bytes for high and low priority traffic,
respectively. Each high priority node generates 192 kbps. Each low priority
node generates 480 and 160 kbps as high and low bit rate, respectively. The
simulation time lasts 300 sec and 10 simulation runs in order to obtain an accurate
and consistent result in a steady state condition.
The simulations were performed for the following two scenarios:

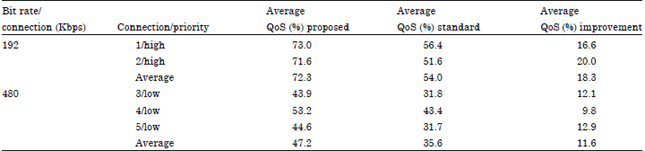

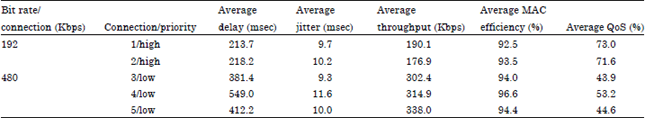

||The first scenario contains five connections, two high priority
connections and three low priority connections

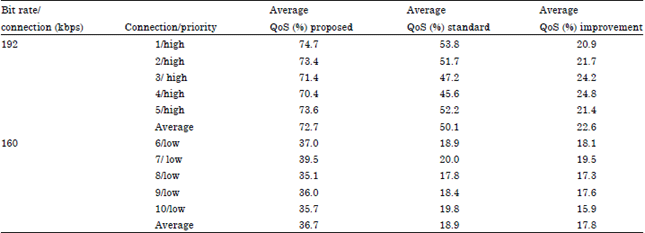

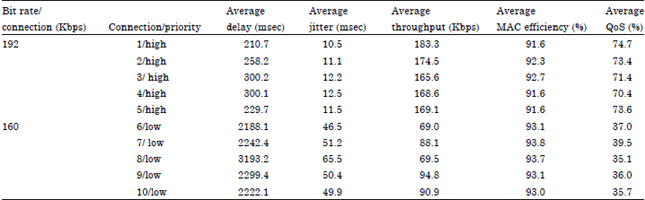

||The second scenario involves 10 connections, five high priority
connections and five low priority connections
They total offered load in each scenario is more than 110% of the effective channel capacity (i.e., it is considered 1.6 Mbps without considering the protocol overhead) and more than 90% of the total channel capacity (i.e., 2 Mbps, with considering the impact of protocol overhead).
RESULTS AND DISCUSSION
For the first scenario, Fig. 5a plots the cumulative distribution
of packets that have delay below certain values. For time-sensitive application,
these values should not exceed 400 msec to meet the minimum QoS requirements.
The distribution of delay for high priority packets is clearly better than the
distribution of delay for low priority packets. More than 80% of high priority
packets have values of delay less than 400 msec while less than 70% of low priority
packets have a delay of less than 400 msec. Thus, the proposed scheme reduces
the delay for high priority traffic and hence provides service differentiation
between high and low priority packets as shown in Fig. 5b.
In Fig. 5b, the QoS of low priority traffic is also improved.
The three low priority connections have good QoS levels with mean values equal
to 43.9, 53.2 and 44.6% for the 1st, 2nd and 3rd connections, respectively.
At the same time, high priority nodes maintain excellent QoS levels by means
of 73 and 71.6% for the 1st and 2nd high priority connections, respectively.
It can be observed that the average QoS of high priority connections is 25.1%
higher than the average QoS of low priority connections. This confirms the capability
of the proposed scheme in providing service differentiation as shown in Fig.
||Adaptive CW differentiation for 5 connections (high and low
priority nodes), (a) Cumulative distribution of delay, (b) Average QoS and
(c) Cumulative distribution of QoS
The mean values of delay, jitter, throughput, MAC efficiency and the assessed
QoS of each connection are summarized in Table 1.
Table 2 summarizes the QoS results for the proposed approach as compared with the standard IEEE 802.11 protocol for 5 connections. These results are also shown in Fig. 6. The average of QoS of proposed scheme increased from 54-72.3% for the high priority connections and from 35.6-47.2% for the low priority connections. These results show that the use of the proposed approach enhances QoS in wireless networks.
In the second scenario, the proposed scheme improves the performance when the
number of high and low priority connections is increased to 10. For instance,
Fig. 7a shows that more than 80% of high priority packets
meet the QoS requirements for the time-sensitive applications. Figure
7b-c indicate that more than 70% of high priority packets
maintain an excellent QoS with an average of 72.7%. This is at the cost of average
QoS of low priority nodes which have an average QoS equal to 36.7%. The reason
for this is that in an overloaded condition, it is critical for high priority
traffic to get faster access to the medium than low priority traffic.
|| QoS parameter values for the proposed scheme
|| Comparison of IEEE 802.11 DCF QoS with proposed scheme for
|| QoS parameter values for the proposed scheme using 10 connections
|| Comparison of IEEE 802.11DCF QoS with proposed scheme for
The proposed scheme assigns a larger CW size for low priority traffic and a
smaller CW size for high priority. This enables high priority traffic to gain
an earlier access to the medium before low priority traffic and therefore achieves
higher QoS and smaller delays. The results are presented in Table
||Adaptive CW differentiation for 10 connections (5 high priority
nodes transmitted 192 kbps and 5 low priority nodes transmitted 160 kbps),
(a) Cumulative distribution of delay, (b) Average QoS and (c) Cumulative
distribution of QoS
|| Comparison of IEEE 802.11 DCF QoS with proposed scheme for
Table 4 summarizes the QoS results achieve using the proposed
approach as compared with the standard IEEE 802.11 DCF protocol for 10 connections.
These results are also shown Fig. 8.
|| Comparison of IEEE 802.11 DCF QoS with proposed scheme for
The use of the proposed mechanism as part of IEEE 802.11 DCF increases the
average QoS from 50.1-72.7% for the high priority connections and from 19.8-36.7%
of the low priority connections. These results indicate that the use of the
proposed mechanism improves QoS in wireless networks.
In this study, an extension to the IEEE 802.11 DCF scheme to support QoS and provide service differentiation has been proposed. The service differentiation scheme is based on adjustment the CW at runtime. The adjusted CW parameter includes the application types that have been employed for providing service differentiation at MAC layer in single-hop networks.
The variation of CW value for time-sensitive applications has been implemented in an adaptive manner that attempts to meet the QoS requirements of those applications. For time-insensitive applications the variation of CW parameter is related to achieving high throughput regardless of the amount of delay they might experience taking into account less packet drops at the buffer.
The findings reveal that the CW of the standard IEEE 802.11 MAC protocol requires dynamic adaptation to improve its performance. The results indicated that using CW for service differentiation improves the performance of high and low priority classes compared to the standard IEEE 802.11 DCF scheme.
The simulations results indicate that the average of QoS for the high priority traffic is enhanced by 18.3 and 22.6% for the 5 and 10 connections, respectively. And for the low priority traffic is improved by 11.6% and 17.8 for the 5 and 10 connections, respectively.
