Intelligent Vertical Handover Scheme for Utopian Transport Scenario

Sourav Dhar, Amitava Ray, Sandeep Chakravorty and Rabindra Nath Bera
Facebook Twitter Digg Reddit Linkedin StumbleUpon E-mail

Intelligent Transportation System (ITS) needs an “always best connected” communication to ensure vehicular safety. ITS is an application of 4G which is characterized by heterogeneous radio access networks. The heterogeneous co-existence of access technologies with largely different characteristics creates a decision problem for determining best available network at a point of time. A context aware intelligent vertical handover algorithm for vehicular communication is presented here. The proposed work, studies the implementation of an intelligent vertical handover scheme based on Analytic Hierarchy Process (AHP) and fuzzy decision process. The priorities of the factors which play an influencing role in the handover process is calculated using the concept of AHP and the decision algorithm for handover is developed using the fuzzy rules based on the priorities obtained from AHP. The uses of fuzzy takes into account the uncertainty that may arise for minor difference of the priorities and hence helps to make the system more robust. A case study has been presented to demonstrate the effectiveness of this model and the selection of the optimum network with the varying speed of the vehicle in the utopian environment. The results show that the presented model not only realistically optimizes the best available network on the move but also avoids unnecessary handovers. This algorithm is specific to vehicular communication system and hence variation in network selection with vehicle speed is shown. Simulation work has been carried out in the MATLAB environment.

Related Articles in ASCI
Search in Google Scholar
View Citation
Report Citation

  How to cite this article:

Sourav Dhar, Amitava Ray, Sandeep Chakravorty and Rabindra Nath Bera, 2011. Intelligent Vertical Handover Scheme for Utopian Transport Scenario. Trends in Applied Sciences Research, 6: 958-976.

DOI: 10.3923/tasr.2011.958.976

Received: February 25, 2011; Accepted: April 20, 2011; Published: May 30, 2011


Reduction in road accident casualties is now the part of national strategy in most of the countries. The primary objective of Intelligent Transportation System (ITS) is to provide safety to human lives and improve the security, efficiency and comfort of the transportation system. To achieve this goal, Intelligent Transportation System (ITS) converges remote sensing and communication technologies. Moreover, demand for voice, data and multimedia services, while moving in car, increase the importance of Broadband wireless systems in ITS (Huang, 2006).

Safety applications and non safety applications are the two major categories of ITS applications. Adaptive Cruise Control (ACC), Driver Assistance Systems (DAS) and Collision avoidance and warning systems (CAWAS) are some examples of safety application. On the other hand, internet access from car, vehicle to vehicle (V2V) and vehicle to infrastructure (V2I) communication (Gozalvez and Sepulcre, 2007), satellite television from car, radio taxi and automatic toll collection are categorized as non-safety applications.

International Telecom Union (ITU) and International Organization for Standardization (ISO) have promoted a new family of ITS standards with the overall branding of “Continuous Air-interface for Long and Medium range (CALM)”. The aim of CALM is to provide wide area communications to support ITS applications that work equally well on a variety of different network platforms.

The development of the future Vehicle-to-Vehicle (V2V) and Vehicle-to-Infrastructure (V2I) communications systems imposes strong radio channel management challenges due to their decentralized nature and the strict Quality of Service (QoS) requirements of traffic safety applications. An intelligent, Network independent handoff which is also known as vertical handoff, decision algorithm is important for a seamless “Always Best Connected” (ABC) vehicular communication.

In homogeneous networks, horizontal handovers (between different cells of the same network) are typically required when the serving access router becomes unavailable due to mobile terminal’s movement. In heterogeneous networks, the need for vertical handovers (between different types of networks) can be initiated for convenience rather than connectivity reasons (e.g., according to user choice for a particular service). Two of the major challenges in vertical handover management are seamlessness and automation aspects in network switching. These particular requirements can refer to the Always Best Connected (ABC) concept, of being connected in the best possible way in an environment of multiple access technologies, according to policies (expressed by rules based on parameters such as network conditions or user preferences) (Gustafsson and Jonsson, 2003).

The deployment of various wireless technologies (3G, WLAN, WiMAX, etc.) in combination with the modern and advanced Mobile Terminals (MTs) with multiple network interfaces and the development of IP-based applications (non-real-time or real-time) has allowed the user to have access to IP services anywhere at anytime from any network. This is the vision of fourth Generation (4G) of wireless communications (McNair and Zhu, 2004; Frattasi et al., 2005; Kim and Prasad, 2006; Korhonen, 2003). This next-generation of wireless systems represents a heterogeneous environment with different access networks technologies that differ in bandwidth, latency or cost. In this kind of environment, mobility management is the essential issue that supports the roaming of users from one system to another. Handover management, one of the mobility management components, controls the change of the MT’s point of attachment during active communication (Akyildiz et al., 2004).

For that, a handover management technique must choose the appropriate time to initiate the handover and the most suitable access network for a specific service among those available, and must maintain service continuity.

In the context of future wireless networks, the literature survey reveals that none of the vertical handover schemes were proposed specific to a transport scenario. This research shows the context aware vertical handover scheme and focuses on decision problem in vehicular communication environment. In general a vertical handover is basically a decision making process which selects as to where to handover in heterogeneous network. In this study, the decision criteria include user preferences, network conditions, application requirements and terminal capabilities, all these are evaluated and compared, to detect and to trigger a vertical handover. The research shows that how advanced multi criteria decision tools like AHP (Analytic Hierarchy Process) and soft computing tools like fuzzy logic can be used to solve such a problem and thus answering ABC requirement.


The key aspect for supporting mobility scenarios is the handover management. It is the process by which mobile terminal maintains its connection active while moving from one point of attachment (base station or access router) to another. The handover management concept features: mobility scenarios, handover process, types, control and performance.

Many works describe the handover process in three phases:

Handover information gathering: The information required to identify the need for handover are collected. Handover will be initiated on the basis of this information. This stage can also be called handover initiation phase
Hand over decision: This stage determines whether and how to perform the handover by selecting the most suitable access network (taking into account some criteria such as user preferences) and by giving instructions to the execution phase. It is also called network selection
Handover execution: Result of the decision phase is executed in this stage


As both communications and computing technology advanced, it was inevitable that the two continue to integrate, defining the field known today as Software Defined Radio (SDR) (Rondeau and Bostian, 2009). Communication devices are increasingly putting signal processing capabilities into software. SDR provides many advantages and improvements in waveform design. SDRs offer flexibility and hardware re-configurability which make the better use of the available communication system. To achieve the seamless connectivity it is necessary to re-configure the communication system’s hardware based on the decision of the handover management system.

Mitola and Maguire (1999) and Mitola (2006) is credited with inventing the field of cognitive radios (Doyle, 2009; Haykin, 2005) with an interest in using the radio system as a personal assistant of sorts that intelligently reacts to the user’s perceived needs. The concept of cognitive radios has since evolved towards a more communications-centric view of the radio. With a reconfigurable SDR system, a cognitive radio uses sensors to collect environmental information as well as an intelligent core (cognitive engine) to react to changes and challenges provided by the environment and user needs. A cognitive radio reacts and adapts to changes in the environment to provide continuous communications at a required quality of service (QoS).

The context aware intelligent vertical handover algorithm presented in this paper is a step towards the development of a cognitive engine to be implemented in next generation cars.


Vertical handover/handoff is a mandatory requirement to implement CALM and it is the vision of 4G (Kim and Prasad, 2006; Korhonen, 2003; Dhar et al., 2010a). A review of vertical handover decision algorithms are discussed by Sun (2007), Ei and Furong (2008) and Dhar et al. (2010b). A robust algorithm should ensure good Quality of Service (QoS) irrespective of physical environment (Lee et al., 2006; Eshanta et al., 2009). QoS depends on the type of application, i.e., conversational, streaming and interactive applications require different bandwidth, delay, jitter etc. A right vertical handover decision algorithm by determining the “best” network at “best” time among available networks based on dynamic factors such as “Received signal strength (RSS)” of network and “velocity” of mobile station simultaneously with static factors like usage expenses, link capacity and power consumptions is presented by Goyal and Saxena (2009). Ei and Furong (2010) has developed a trajectory aware vertical handoff protocol for handover between WiMAX and 3G. Importance of mobile station velocity and movement pattern is considered by Lee et al. (2007). Competitive and cooperative relationships among the major ITS communication technologies, WiMax, WLAN and WCDMA, are considered by Ma and Jia (2005). Sabrie and Salleh (2009) have proposed a handoff enhancement technique using IAPP. Leni and Srivatsa (2008) have presented a handoff technique to improve TCP performance. An Analytic Hierarchy Process (AHP) based network selection algorithm for UMTS and WLAN is presented by Song and Jamalipour (2005a). Along with WCDMA and WLAN, DVB-H which supports both data and broadcast services correspondingly, is explained by Seo et al. (2007). In study of Sun et al. (2008), the vertical handoff decision problem is formulated as a Constrained Markov Decision Process (CMDP). A two step, i.e., a pre-handoff decision algorithm followed by a handoff decision algorithm is presented by Hwang et al. (2007). An AHP based comparison of different vertical handoff algorithms is presented by Stevens-Navarro and Wong (2006). An AHP based multi-criteria decision making (MCDM) tool is designed for vertical handover among WLAN, UMTS and GPRS and is presented by Isakson and Fiedler (2007). Measurements of application perceived throughput in DAB, GPRS, UMTS and WLAN is done for automatic network selection in (Chevul et al., 2005). A 3-step network selection strategy for new cell arrival in a road condition is shown by Nitiwong et al. (2009). AHP and Grey Relational Analysis (GRA) based network selection mechanism for UMTS and WLAN is presented by Song and Jamalipour (2005b) for next generation networks. Dhar et al. (2010c), have proposed an AHP based vertical handover algorithm for intelligent transportation systems. A framework for both horizontal and vertical handover in wireless network based on mobile IPv6 has been proposed by Cheng et al. (2005). Handoff triggering and network selection algorithm in CDMA-WLAN integrated networks is proposed and QoS performance against velocity of mobile terminal is discussed by Kim and Prasad (2006). A load balancing vertical handover algorithm which will maximize the collective battery lifetime of Mobile Nodes, is proposed by Lee et al. (2009). Context aware vertical handoff algorithms, proposed by Wei et al. (2006) and Ahmed et al. (2006) introduced a context repository and an adaptability manager for network selection.

After a thorough review of the literature, we conclude with the following criticisms:

The traditional vertical handover algorithms consider constraint resources but it does not provide the optimal solution for “always best connected” communication for ITS in the context of multiple constraints
The mathematical formulation of traditional vertical handover is rigorous and needs longer execution time
Selection of best network against vehicular speed variations is not presented in the traditional vertical handover models as discussed above except in Dhar et al. (2010a, b, c)

The vertical handover model, presented here, analyzes the case of a utopian transport scenario in which a vehicle is assumed to pass through the different positions of a highway and the network ranking optimizes the “best” network in multiple constraint environments. This evaluation technique requires knowledge of vehicular speed, Received Signal Strength (RSS), type of application (bandwidth), initial delay for connection establishment, network traffic load and cost of the service.


Unlike horizontal handoff, Vertical handoff does not only take place in cell edges. There are many other factors that should be considered for a proper vertical handover. Authors have taken an initiative to develop a cognitive radio (Mitola and Maguire, 1999; Mitola, 2006; Doyle, 2009; Haykin, 2005; Arslan, 2007) based embedded system which will perform both remote sensing and communication for ITS. Software Defined Radio (SDR) based such a system is already presented by Dhar et al. (2008) and Bera et al. (2008, 2009). Intelligent algorithms are required to upgrade this SDR based system to a Cognitive Radio based system. The aim of this study is to design and simulate a context aware vertical handover among WiMAX, UMTS and WLAN for ITS using AHP-fuzzy tools.

Handover criteria are the qualities that are measured to give an indication of whether or not a handover is needed. We can regroup different criteria as follows:

Network-related: coverage, bandwidth offered, latency, network availability (RSS (Received Signal Strength), CIR (Carrier-to-Interferences Ratio), SIR (Signal-to-Interferences Ratio), BER (Bit Error Rate), network traffic load, security level, etc.

Terminal-related: velocity, battery power, location information, etc.

User-related: user profile and preferences (data rate/bandwidth required), affordable cost for the service.

Service-related: monetary cost of service, service capabilities, QoS, etc.

We are taking the following criteria into consideration, in this problem, while selecting the technology on entering a cell having two or more of the above radio access networks available:

Received Signal Strength (RSS) (Availability of the network)
Mobility (Speed of the vehicle)
Data rate/bandwidth (Application)-user preference
Affordable cost for the service
Network traffic load
Initial delay

Suppose the user is moving from a cell to another as shown in Fig. 1.

In typical highway traffic, we have considered three different situations. The position ‘A’, here the vehicle is in a sub-urban area. Point ‘B’ is almost similar to point ‘A’, the vehicle is passing by the toll plaza and about to enter in a city. Thus all three radio networks are available here. Point-C is far from city and only UMTS network is available here.

Point-B, is near to toll plaza and UMTS, WiMAX along with dedicated short range communication (DSRC) network is available here. Currently, the IEEE standard proposed for DSRC, known as 802.11p, is based upon the IEEE 802.11a standard (Tan et al., 2008). The physical Layer of the 802.11p standard is the same as the physical Layer of the 802.11a standard, except for the used sample rate. The main application of 802.11p is vehicle-to-vehicle (V2V) and vehicle-to-infrastructure (V2I) communication. DSRC is already in use in USA, Europe and Japan for electronic toll collection (Dhar et al., 2008).

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario
Fig. 1: A Typical Radio Network Availability Scenario for ITS

The applications taken into consideration are Conversational, real time video streaming and real time file transfer (data streaming) (Stevens-Navarro and Wong, 2006). Each of these applications requires a different data rate. All the three technologies do not support these applications with equal QoS. Each wireless technology has a limit on the maximum amount of mobility it can support. As we are considering a transport system speed of the vehicle (mobility) is an important factor to be taken into consideration. WiMAX supports the highest mobility among the three and WLAN has the lowest support for mobility and the least coverage area (Dhar et al., 2008).

Another parameter taken into consideration is the Initial delay, which is the setup time for a connection. Initial delay is more in some systems compared to others. According to Fiedler et al. (2005), delay could be up to seven seconds for UMTS. WLAN connectivity, on the other hand, is perceived as responding instantaneously. WiMAX response could be faster than UMTS but slower than WLAN.

Cost of service offered by the particular radio access network is also taken into consideration. Users, if given the option, will always look for lower cost keeping QoS intact; hence a vertical handoff algorithm must try to select the most cost effective network.


The following assumptions are made for solving the problem defined in section V.

Situations of point “A” and point “B” of Fig. 1, where all the three networks are available, are considered for simulation. However, this handover scheme will be valid for any point on the highway
All the radio access networks will be equally loaded at a given instant. Random network traffic load distribution will be considered in future works
Two types of applications are considered, viz., conversational/ voice communication and streaming applications (audio, video streaming, internet access, data transfer etc.)

Figure 2 gives our proposed vertical handover functional architecture containing the following given modules.

The context repository module basically a database which collects all the contextual information, through monitoring and measurements, required to identify the need for handover and to apply handover decision. These data are monitored periodically and updated accordingly. All these data are supplied to the adaptability manager.

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario
Fig. 2: Functional architecture for vertical handover

Network context repository: This holds all the network related contexts. Static parameters like offered bandwidth, initial delay for connection establishment and dynamic data like network availability RSS (Received Signal Strength) and current network traffic load.

Terminal context repository: This holds the up to date speed of the vehicle, battery power, location information, etc.

User context repository: This accepts the inputs from the user. User preferences are basically the type of application (data rate/bandwidth required) and affordable cost for the service.

Service context repository: This stores mainly the static information like monetary cost of service, service capabilities etc.

The Adaptability manager module is responsible for providing transparent switching between networks. So, it encloses the main phases of a handover process: handover initiation, Handover decision (i.e., network selection) and Handover execution. Working of the adaptability manager is explained in the flowchart (Fig. 3).

Handover initiation is a continuous process of RSS and QoS measurement. If either of these two is found critical then spectrum sensing will be started. If any other network is found available then handover process will be initiated else the wireless device will continue the communication through the current radio access network.

Once the handover process is initiated, the gathered context information in context repository will be supplied to the adaptability manager. The optimum network will be selected based on the fuzzy rules. The fuzzy rules are made based on the priorities of the influencing factors obtained using AHP.

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario
Fig. 3: Working of the adaptability manager

In handover execution phase, the adaptability manager will first check whether the selected network is different from the current network. If so, then it will issue a vertical handover command and will direct the control unit of SDR to reconfigure the hardware according to the selected network.


AHP, developed by Saaty (1980, 1986, 1987, 1988, 1990 and 1994), addresses how to determine the relative importance of a set of activities in a multi-criteria decision problem. The process makes it possible to incorporate judgments on intangible qualitative criteria alongside tangible quantitative criteria. The AHP method is based on three principles:

Structure of the model
Comparative judgment of the alternatives and the criteria
Synthesis of the priorities

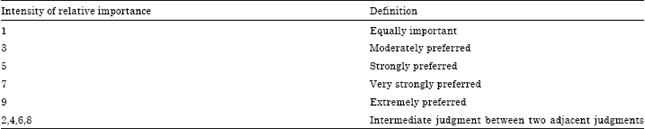

Table 1: The nine point scale of pair-wise comparison
Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario

In the literature, AHP, has been widely used in solving many complicated decision-making problems (Ray et al., 2008a, b; Taha, 2006).

Step 1: A complex decision problem is structured as a hierarchy. AHP initially breaks down a complex multi-criteria decision-making problem into a hierarchy of interrelated decision criteria, decision alternatives. With the AHP, the objectives, criteria and alternatives are arranged in a hierarchical structure similar to a family tree. A hierarchy has at least three levels: overall goal of the problem at the top, multiple criteria that define alternatives in the middle, and decision alternatives at the bottom.

Step 2: The comparison of the alternatives and the criteria. Once the problem has been decomposed and the hierarchy is constructed, prioritization procedure starts in order to determine the relative importance of the criteria within each level. The pairwise judgment starts from the second level and finishes in the lowest level, alternatives. In each level, the criteria are compared pairwise according to their levels of influence and based on the specified criteria in the higher level. In AHP, multiple pairwise comparisons are based on a standardized comparison scale of nine levels (Table 1).

Let C = {Cj |j = 1, 2,...., n} be the set of criteria. The result of the pairwise comparison on ‘n’ criteria can be summarized in an (nxn) evaluation matrix ‘A’ in which every element ‘aij’ (i,j = 1,2,..., n) is the quotient of weights of the criteria, as shown:

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario

Step 3: the mathematical process commences to normalize and find the relative weights for each matrix. The relative weights are given by the right eigenvector (w) corresponding to the largest Eigen value (λmax) as:

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario

If the pairwise comparisons are completely consistent, the matrix A has rank 1 and λmax = n. In this case; weights can be obtained by normalizing any of the rows or columns of A.

Step 4: Quality of the output of the AHP is strictly related to the consistency of the pairwise comparison judgments. The consistency is defined by the relation between the entries of A : (aij x ajk) = aik. The consistency index CI is:

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario

The final Consistency Ratio (CR), usage of which let someone to conclude whether the evaluations are sufficiently consistent, is calculated as the ratio of the CI and the random inconsistency (RI), as indicated.

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario

The number 0.1 is the accepted upper limit for CR (Saaty, 1980, 1986, 1987, 1988, 1990 and 1994). If the final consistency ratio exceeds this value, the evaluation procedure has to be repeated to improve consistency. The measurement of consistency can be used to evaluate the consistency of decision-makers as well as the consistency of overall hierarchy.


Availability of the networks (Received signal strength) and bandwidth (Application type) support will act as the triggering factors. Thus the priorities of the other influencing factors using AHP are found here. The factors under consideration are speed of the vehicle, affordable usage cost and network traffic load Table 2.

The consistency index (CI) = 0.032909
The consistency ratio (CI) = CI/ RI = 0.05674 < 0.1, (RI= 0.58 for n=3 (Ray et al., 2008b))

Hence the AHP matrix is consistent. Priority vector and the consistency ratio are calculated by following the steps.

It is evident from the Table 3, that the ‘speed of the vehicle’ is the most influencing factor followed by the network traffic load and cost of service for vertical handover scheme in ITS.

Table 2: AHP matrix of the influencing factors
Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario

Table 3: Normalized matrix of the influencing factors
Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario
Fig. 4: Triangular Fuzzy Number


To deal with vagueness of human thought, Zadeh first introduced the fuzzy set theory which was oriented to the rationality of uncertainty. A major contribution of fuzzy set theory is its capability of representing vague data. A fuzzy set is a class of objects with a membership function ranging between zero and one. It was specifically designed to mathematically represent uncertainty and vagueness. Fuzzy set theory implements groupings of data with boundaries that are not sharply defined (i.e., fuzzy). Any methodology or theory implementing “crisp” definitions such as classical set theory, arithmetic, and programming, may be “fuzzified” by generalizing the concept of a crisp set to a fuzzy set with blurred boundaries. The benefit of extending crisp theory and analysis methods to fuzzy techniques is the strength in solving real-world problems which inevitably entail some degree of imprecision in the variables and parameters measured and processed for the application (Pang, 2007). A triangular fuzzy number (TFN) is the special class of fuzzy number whose membership is defined by three real numbers, expressed as (l, m, u) given in Eq. 5 (Moon and Lee, 1999). Figure 4 displays the structure of a Triangular Fuzzy Number (μA).

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario

The operational laws between two triangular fuzzy numbers M1 and M2 are as follows

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario


The RSS and the application type (voice or streaming) are the critical factors. These factors act as trigger for vertical handover as discussed in section VIII. The information gathered by the context repository (speed of the vehicle, network traffic load, affordable cost), depending on their availability, are fed into the handover decision module which is basically a fuzzifier. Here these parameters are converted into fuzzy sets. A fuzzy set contains varying degree of membership in a set. The membership values are obtained by mapping the values retrieved for a particular variable into a membership function. Figure 5a and b gives membership functions of the input fuzzy variables.

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario
Fig. 5a: Membership function for speed

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario
Fig. 5b: Membership function for affordable cost

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario
Fig. 5c: Membership function for network traffic load

All the three fuzzy variables affordable costs, speed of the vehicle and network traffic load have three fuzzy sets: low, medium and high.

Affordable cost:

Low: 0-30%
Medium: 15-60%
High: 50-100%

Speed of vehicle:

Low: 0-30 kmph
Medium: 20-60 kmph
High: 50-100 kmph

Network traffic load:

Low: 0-30%
Medium: 15-60%
High: 50-100%

After fuzzification, a set of fuzzy rules (Table 4, 5) are applied to determine the rank of different networks. These fuzzy rules are set based on the priorities of the influencing factors as found using AHP. Fuzzy rules utilize a set of IF-THEN rules and the result is Low (signifies a network should not be selected) or High (signifies a network should be selected). As an example from Table 4, the rule 8 represents the case when speed of the vehicle is low, network traffic load is high and user can afford only low cost service then 3G/UMTS should be the selected network.

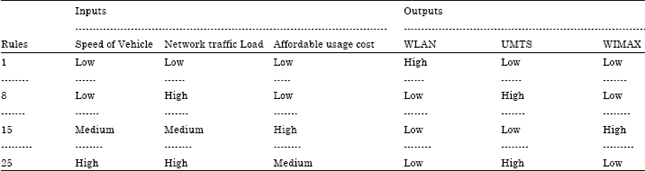

Table 4: Examples of fuzzy rules (Conversational Application)
Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario

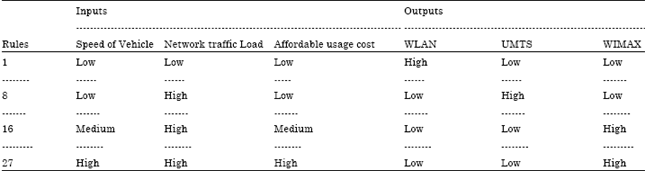

Table 5: Examples of fuzzy rules (Streaming Application)
Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario
Fig. 6: Network selection using fuzzy rules


Figure 6 is showing the selection of the optimum network depending on the values of the vehicular speed, traffic load and affordable cost of service. This selection is based on the fuzzy rules. Network with highest selection index will be the chosen network.

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario
Fig. 7a: Network selection at 35% network traffic and 50% affordable costs

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario
Fig. 7b: Network selection at 70% network traffic and 80% affordable costs

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario
Fig. 7c: Network selection at 35% network traffic and 80% affordable costs

Two types of applications are considered here, viz., voice or conversational application and streaming application (data transfer, audio and video transfer etc.).

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario
Fig. 8a: Network selection at 35% network traffic and 50% affordable costs

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario
Fig. 8b: Network selection at 70% network traffic and 80% affordable costs

Image for - Intelligent Vertical Handover Scheme for Utopian Transport Scenario
Fig. 8c: Network selection at 70% network traffic and 50% affordable costs

Voice application needs less bandwidth while streaming applications need very high bandwidth. WLAN and WiMAX offer higher bandwidth compared to UMTS. On the other hand, cost of service is less in UMTS compared to WLAN or WiMAX and UMTS supports much higher network traffic too. Mobility support and coverage of WLAN is poor compared to UMTS and WiMAX.

Figure 7 has presented the network selection with varying speed of vehicle for voice application under different network traffic loads and affordable usage costs.

In Fig. 7a, when network is less loaded and user can afford moderate cost of service, then WLAN is the selected network for low vehicular speed but UMTS is preferred at higher speed. There is a vertical handover situation at around 25 kmph vehicular speed.

Similarly in Fig. 7b, when network is loaded comparatively and user can afford higher usage charges, then up to 55kmph UMTS is the preferred network and beyond this speed WiMAX is preferred. Hence, there will be vertical handover at around 55 kmph vehicular speed. Unlike previous two cases, Fig. 7c depicts a situation, when network load is less and user can afford higher usage charges, WiMAX is always the selected network and thus eliminates the necessity of handover.

Figure 8 has presented the network selection with varying speed of vehicle for streaming application under different network traffic loads and affordable usage costs.

Since the streaming applications require higher bandwidth, thus WLAN and WiMAX are preferred over UMTS. When traffic load is less then WLAN is selected for lower vehicular speed and WiMAX is chosen at higher speed (Fig. 8a). But, if the network traffic load is high, then WiMAX is always preferred (Fig. 8b, c).


In this research, a vertical handover scheme for Intelligent Transportation System (ITS) has been studied. Here, the handover procedure will be initiated only when there will be more than one network available, i.e., RSS will act as a trigger to the handover initiation. Bandwidth requirement depends on the type of application. Therefore, the application type is another triggering factor. Different set of fuzzy rules are formed for two different kinds of applications as shown in Table 4 and 5. AHP is used to prioritize the handover influencing factors and fuzzy rules are set depending on the priorities of different factors.

Thus, selection of the best radio access network can satisfy user requirements anywhere and anytime in a flexible (using policies and context awareness) and efficient manner. In the presented vertical handover decision mechanism, the intelligence and precision have been explored in the whole process for practical mobile terminals. Periodically, the system re-evaluates handover initiation when the mobile user is already using a radio access network. In a case where a handover is needed and there is no better access network available for the ongoing application, system will continue with the current network avoiding subsequent unnecessary handovers (i.e., it avoids ping-pong effect).

The study focuses on the handover decision process which results in the reconfiguration of the hardware. This work is the continuation of the authors’ previous work (Dhar et al., 2010a-c; Bera et al., 2008, 2009) where the proposed algorithm was adaptive but not intelligent. Here intelligence is added to the vertical handover decision process using fuzzy logic. The algorithm is tested successfully using MATLAB/SIMULINK simulation and the results are discussed in detail. This program is to be ported in SDR to develop a reconfigurable hardware in future and hence SIMULINK is chosen as the platform for development.


1:  Huang, X., 2006. Smart antennas for intelligent transportation systems. Proceedings, of the 6th International Conference on ITS Telecommunications, June 2006, Chengdu, pp: 426-429
CrossRef  |

2:  Gozalvez, J. and M. Sepulcre, 2007. Opportunistic-driven adaptive radio resource management technique for efficient wireless vehicular communications. Proceedings of the 66th IEEE Conference on Vehicular Technology, Sept. 30-Oct. 3, Baltimore, MD, pp: 2116-2120
CrossRef  |

3:  Gustafsson, E. and A. Jonsson, 2003. Always best connected. IEEE Wirel. Commun., 10: 49-55.
CrossRef  |

4:  McNair, J. and F. Zhu, 2004. Vertical handoffs in fourth-generation multi network environments. IEEE Wirel. Commun., 11: 8-15.
CrossRef  |

5:  Frattasi, S., H. Fathi, F. Fitzek, M. Katz and R. Prasad, 2005. A new pragmatic methodology to design 4G. Proceedings of the International Conference on Networking, (ICN`05), Reunion Island, pp. 366-373

6:  Kim, Y.K. and R. Prasad, 2006. 4G Roadmap and Emerging Communication Technologies. Artech House Publisher, Boston and London, ISBN-13: 978-1580539319

7:  Korhonen, J., 2003. Introduction to 3G Mobile Communications. 2nd Edn., Artech House Publishers, London, ISBN-13: 9781580535076

8:  Akyildiz, I.F., J. Xie and S. Mohanty, 2004. A survey of mobility management in Next-generation all-IP-based wireless systems. IEEE Wireless Commun., 11: 16-28.
CrossRef  |  Direct Link  |

9:  Mitola, J. and G.Q. Maguire, 1999. Cognitive radio: Making software radios more personal. IEEE Personal Commun., 6: 13-18.
CrossRef  |  Direct Link  |

10:  Rondeau, T.W. and C.W. Bostian, 2009. Artificial Intelligence in Wireless Communications. 1 Edn., Artech House Publishers, London, ISBN-13: 978-1607832348

11:  Doyle, L.E., 2009. Essentials of Cognitive Radio. 1st Edn., Cambridge University Press, Cambridge, UK., ISBN-13:978-0521897709, Pages: 250

12:  Mitola, J., 2006. Cognitive Radio Architecture: The Engineering Foundations of Radio XML. John Wiley and Sons, New York, ISBN-13: 978-0-471-74244-9, pp: 473

13:  Haykin, S., 2005. Cognitive radio: Brain-empowered wireless communications. IEEE J. Sel. Areas Commun., 23: 201-220.
CrossRef  |  Direct Link  |

14:  Dhar, S., A. Ray and R. Bera, 2010. Design, simulation and sensitivity analysis of vertical handover algorithm for vehicular communication. Int. J. Comput. Sci. Software Technol., 2: 5509-5525.

15:  Ei, T. and W. Furong, 2008. Cross-layer handoff management algorithm on heterogeneous wireless networks. Inform. Technol. J., 7: 820-824.
CrossRef  |  Direct Link  |

16:  Sun, J.Z., 2007. A review of vertical handoff algorithms for cross-domain mobility. Proceedings of the International Conference on Wireless Communications, Networking and Mobile Computing, Sept. 21-25 Shanghai, pp: 3156-3156
CrossRef  |

17:  Sun, C., E. Stevens-Navarro and V.W.S. Wong, 2008. A constrained MDP-based vertical handoff decision algorithm for 4G wireless networks. Proceedings of the International Conference on Communications, May 19-23 Beijing, pp: 2169-2174
CrossRef  |

18:  Lee, D., Y. Han and J. Hwang, 2006. Qos-based vertical handoff decision algorithm in heterogeneous systems. Proceedings of the 17th Annual IEEE International Symposium on Personal, Indoor and Mobile Radio Communications, Sept. 11-14, IEEE, pp:1-5
CrossRef  |

19:  Eshanta, O.M., M. Ismail, K. Jumari and P. Yahaya, 2009. VHO strategy for QoS-provisioning in the WiMAX/WLAN interworking system. Asian J. Applied Sci., 2: 511-520.
CrossRef  |  Direct Link  |

20:  Goyal, P. and S.K. Saxena, 2009. A dynamic decision model for vertical handoff across heterogeneous wireless networks. Int. J. Comput. Syst. Sci. Eng., 31: 676-681.
Direct Link  |

21:  Ei, T. and W. Furong, 2010. Trajectory-aware vertical handoff protocol between WiMAX and 3GPP networks. Inform. Technol. J., 9: 201-214.
CrossRef  |  Direct Link  |

22:  Lee, W., E. Kim, J. Kim, I. Lee and C. Lee, 2007. Movement-aware vertical handoff of WLAN and mobile WiMax for seamless ubiquitous access. IEEE Trans. Consum. Electron., 53: 1268-1268.
CrossRef  |

23:  Ma, L. and D. Jia, 2005. The competition and cooperation of WiMax, WLAN and 3G. Proceedings of the 2nd International Conference on Mobile Technology, Applications and Systems, Nov. 15-17, Guangzhou, pp: 1-5
CrossRef  |

24:  Sabrie, O.H. and R. Salleh, 2009. Enhancing handoff process using IAPP with caching techniques. J. Applied Sci., 9: 3999-4005.
CrossRef  |  Direct Link  |

25:  Leni, A.E.S. and S.K. Srivatsa, 2008. A handoff technique to improve TCP performance in next generation wireless networks. Inform. Technol. J., 7: 504-509.
CrossRef  |  Direct Link  |

26:  Song, Q. and A. Jamalipour, 2005. Network selection in an integrated wireless LAN and UMTS environment using mathematical modeling and computing techniques. IEEE Wirel. Commun., 12: 42-42.
CrossRef  |

27:  Song, Q. and A. Jamalipour, 2005. A network selection mechanism for next generation networks. IEEE Int. Conf. Commun., 2: 1418-1422.
CrossRef  |

28:  Seo, S.H., S.C. Lee and J.S. Song, 2007. Policy based intelligent vertical handover algorithm in heterogeneous wireless networks. Proceedings of the International Conference on Convergence Information Technology, Nov. 21-23 Gyeongju, 1900-1900
CrossRef  |

29:  Hwang, J.Y., J. Oh and Y. Han, 2007. A two-step vertical handoff algorithm in heterogeneous traffic and systems. Proceedings of the 66th Vehicular Technology Conference, Sept. 30-Oct. 3, Baltimore, MD., page: 1543-1547
CrossRef  |

30:  Stevens-Navarro, E. and V.W.S. Wong, 2006. Comparison between vertical handoff decision algorithms for heterogeneous wireless networks. Proceedings of the IEEE Conference on Vehicular Technology, May 7-10, Melbourne, Victoria, pp: 947-951
CrossRef  |

31:  Isakson, L. and M. Fiedler, 2007. Seamless connectivity in WLAN and cellular networks with multi criteria decision making. Proceedings of the 3rd Euro-NGI Conference on Next Generation Internet Networks, May 21-23, Trondheim, Norway, pp: 56-56
CrossRef  |

32:  Chevul, S., J. Karlssonz, L. Isakssony, M. Fiedlery, P. Lindbergz and L. Stranden, 2005. Measurements of application-perceived throughput in DAB, GPRS, UMTS and WLAN environments. Proceeding of Radio Science and Communications, Linkoping.

33:  Nitiwong, K., P. Komolkiti and C. Aswakul, 2009. Performance evaluation model of heterogeneous wireless network selection strategy with macroscopic user mobility model. Proceeding of the International Conference, May 5-6, Bangkok, pp: 19-26

34:  Cheng, W.L., L.M. Chen, M.C. Chen and Y.S. Sun, 2005. A framework of handoffs in wireless overlay networks based on mobile IPv6. IEEE J. Sel. Areas Commun., 23: 2118-2118.
CrossRef  |

35:  Dhar, S., D., A. Ray, R. Bera, S.N. Sur and D. Ghosh, 2010. A complete simulation of intra vehicle link through best possible wireless network. Int. J. Comput. Electr. Eng., 2: 673-681.
Direct Link  |

36:  Dhar, S., A. Ray and R. Bera, 2010. Design and simulation of vertical handover algorithm for vehicular communication. Int. J. of Engg. Sci. and Tech., 2: 5509-5525.

37:  Lee, S.K., K. Sriram, K. Kim, Y.H. Kim and N. Golmie, 2009. Vertical handoff decision algorithm providing optimized performance in heterogeneous wireless networks. Proceedings of the Global Telecommunications Conference, Nov. 26-30 Washington, DC., pp: 5164-5169
CrossRef  |

38:  Wei, Q., K. Farkas, C. Prehofer, P. Mendes and B. Plattner, 2006. Contextaware handover using active network technology. Comput. Networks, 50: 2855-2872.
CrossRef  |

39:  Ahmed, T., K. Kyamakya and M. Ludwig, 2006. A context-aware vertical handover decision algorithm for multimode mobile terminals and its performance. Proceedings of the IEEE/ACM Euro American Conference on Telematics and Information Systems. pp: 19-28,

40:  Arslan, H., 2007. Cognitive Radio, Software Defined Radio and Adaptive Wireless Systems. Springer, Berlin, Germany, ISBN: 978-1-4020-5541-6, Pages: 470

41:  Dhar, S., R. Bera, D. Kandar, N.B. Sinha and M. Mitra, 2008. Modeling and implementation of wireless embedded system for intelligent transport system application. Proceedings of the 3rd International Conference on Industrial and Information Systems, Dec. 8-10, Kharagpur, India, pp: 1-1
CrossRef  |

42:  Bera, R., S. Dhar and D. Kandar, 2008. Digital radar for collision avoidance and automatic cruise control in transportation. IEEE ISM 08, Dec. 3-6 Bangalore, India.

43:  Bera, R., D. Mondal, S. Dhar, S. Sil and S.N. Sur et al., 2009. Vehicular communication and safety in realization of intelligent transport system. Proceedings of the 4th International Conference on Computers and Devices for Communication, Dec. 14-16, Kolkata, India, pp: 1-4
Direct Link  |

44:  Tan, I., W. Tang, K. Laberteaux and A. Bahai, 2008. Measurement and analysis of wireless channel impairments in DSRC vehicular communications. Proceedings of the International on Conference, May 19-23, Beijing, pp: 4882-4888
CrossRef  |

45:  Fiedler, M., L. Isaksson and S. Chevul, 2005. Measurements and analysis of application-perceived throughput via mobile links. Proceedings of the 3rd Performance Modeling and Evaluation of Heterogeneous Networks, (PMEDN`05), IIkley, West Yorkshire, UK., pp: 1-33

46:  Saaty, T.L., 1980. The Analytical Hierarchy Process: Planning, Priority Setting, Resource Allocation. 1st Edn., McGraw-Hill, New York, ISBN: 0070543712

47:  Saaty, T.L., 1990. How to make a decision: The analytic hierarchy process. Eur. J. Operat. Res., 48: 9-26.
CrossRef  |  Direct Link  |

48:  Saaty, T.L., 1986. Exploring optimization through hierarchies and ratio scales. Socio-Econ. Plann. Sci., 20: 355-360.
CrossRef  |

49:  Saaty, T.L., 1994. How to make a decision: The analytic hierarchy process. Interfaces, 24: 19-43.
Direct Link  |

50:  Saaty, T.L., 1988. Multicriteria Decision Making the Analytic Hierarchy Process. RWA Publications, Pittsburgh, Pennsylvania

51:  Saaty, T.L., 1987. The analytic hierarchy process-what it is and how it is used. Math. Modeling, 9: 161-176.
CrossRef  |

52:  Ray, A., B. Sarkar and S. Sanyal, 2008. Outsourcing decision under utopian environment. J. Applied Accounting Res., 9: 181-191.
CrossRef  |

53:  Ray, A., B. Sarkar and S. Sanyal, 2008. Improved TOC for outsourcing decision. Int. J. Manage. Sci. Eng. Manage., 3: 303-311.
Direct Link  |

54:  Taha, H.A., 2006. Operation Research. 7th Edn., PHI Learning Pvt. Ltd., New Delhi

55:  Pang, B., 2007. Multi-criteria supplier evaluation using fuzzy AHP. Proceedings of the International Conference on Mechatronics and Automation, Aug. 5-8, Harbin, China, pp: 2357-2357
CrossRef  |

56:  Moon, T.H. and W.B. Lee, 1999. Construction of supporting system for decision making process of zoning designation and change that has fuzziness. Proceedings of the 6th International Conference Computers in Urban Planning and Urban Managemen, Venice, Italy.

©  2021 Science Alert. All Rights Reserved
