Wound healing is a natural process to return the skin or mucosa back to its
normal state. This process consists of inflammatory phase, proliferation phase
and remodeling phase. Debridement, irrigation, antibiotics and antiseptic administration
has been considered to be the usual treatment for the wound. Wound healing process
may be inhibited if the wound is not handled properly and could lead to complications,
for example, lack or exuberant wound healing component such as collagen fibers
and cells as well as excessive wound contraction (Peterson,
2003; Kumar et al., 2009).
Noni is a tropical plant which is distributed in Pacific, South America, Central
America and South East Asia region. All parts of this plant such as fruit, leaf
and seed are useful especially for food and medication. Empirically, the leaf
is used as dressing for wounded skin, sprained joint and also to relieve pain
or fever. Active ingredients found in the leaves are saponins, triterpens, tannins,
alkaloids, glycoside iridoids and flavonoid. Among the main effects of those
ingredients which related to wound healing are saponin as antibacterial agent,
tannin as hemostatic and astringent, alkaloid as analgetic and flavonoid as
antioxidant and anti-inflammatory agent (Wang et al.,
2002; Nayak et al., 2009; Rasal
et al., 2008).
Kumar et al. (2010) discovered that ethanol
extract of 10 mg mL-1 noni leaf has antimicrobial potency against
E. coli, Staphylococcus aureus and Bacillus subtilis. Study
by Yuslianti et al. (2013) suggested that pure
Indonesian 10% ethanol extract of noni leaf could accelerate wound healing process
on the skin of Wistar rats and significantly reduced the wound size on day 3,
7 and 14, as compared to the skin treated by 10% povidone iodine (Kumar
et al., 2010; Yuslianti et al., 2013).
Povidone iodine is one of the popular medications used topically on wounds
and it is usually applied on skin and oral mucosa. Povidone iodine has local
antibacterial effect but it could also trigger hypersensitivity reaction in
some individuals, cause irritation and it has bitter taste (Gottardi,
2001). Although, the side effects were seldom being reported, it would be
better if there existed another alternative for wound treatment that is more
effective, safer, cheaper, easier to acquire and taste better.
In this study, we analyze the effectiveness of noni leaves as traditional medication
to accelerate wound healing process by examining the clinical wound size, histopathologic
findings of fibroblast cells and new blood vessel and its effect against oral
bacteria Streptococcus mutans.
MATERIALS AND METHODS
The study was conducted at Biochemistry and Molecular Biology Laboratory of
Medical Faculty General Achmad Yani University and Pharmacy Laboratory of Science
Faculty General Achmad Yani University, Cimahi, West Java for the period of
November 2013-January 2014. Wistar rats were utilized in this study after an
ethical clearance was received from Ethical Committee of Hasan Sadikin Hospital,
Bandung, West Java.
Extraction of noni leaves: Five kilograms of noni leaves collected from
Cimahi, West Java were extracted into 100 g of thick ethanolic extract. An oven
was used to dry the leaves, macerator was purposed to extract the leaves into
light extract and the final thick ethanolic extract was done using rotary evaporator
with 96% ethanol. The extraction process was performed at PAU Laboratory, Bandung
Institute of Technology. Afterwards, the final extract was made into 10% gel
preparation at Pharmacy Laboratory, Faculty of Science, General Achmad Yani
Oral antimicrobial effect examination: Ethanol extract gel of noni leaves
was made into 5 different concentrations (6.25, 12.50, 25, 50 and 100%, respectively)
to examined the antibacterial activity against Streptococcus mutans.
Materials used in this study were sterilization device and disinfectant, micropipette,
microbiology kit for diffusion agar method, petri dish and jars, microscope,
spectrophotometer, Mueller Hinton Agar (MHA) plate, NaCl 0.9%, sterile aquadest
and 50% propolis concentrate as positive control.
Oral mucosa wound examination: Wistar rats were adapted in the laboratory
for 7 days before treatment. They were fed with pellets and given fresh water
every day and then their weights were measured after a week. Prior to creating
the wounds, rats were given 10 mL/1000 g ketamine as means of general anesthetic.
The wound was made with 4 mm diameter skin/mucosal punch device on the palatal
mucosa and subsequently irrigated with sterile aquadest.
Rats were made into four groups:
||Negative control group which was wounded but obtain no treatment
||Negative control group which was not wounded (K2)
||Treatment group which was wounded and given 10% noni leaf extract gel
||Treatment group which was wounded and given 10% povidone iodine solution
Noni leaf extract and povidone iodine were applied twice a day on wounded mucosa.
The wounds were measured by using caliper and ruler on 3 rats from each group
after they were terminated on days 0, 3, 7 and 14. Diameter of wound area was
measured using a formula:
where, Dx is diameter of wound on day x.
Histological sections stained with Hematoxylin-Eosin were made to examine new-formed
blood vessels and fibroblast amount, taken from the palatal mucosa about 5 mm
from the wounded area and 2 mm depth. Data was examined using 40x objective
expansion with light microscopy. The sections were prepared at Pathological
Anatomy Laboratory of Medical Faculty.
Data analysis: Data of this study was analyzed statistically with SPSS
17.0. Data found would be presented with comparison table and relation graph.
For inhibitory effect against S. mutans bacteria, data were analyzed
with Shapiro-Wilk (p>0.05) as normality test, Levene test for variant homogeneity
and subsequently one way ANOVA test (p≤0.05) for significance. If the normality
test was not significant, the significance test was accomplished by non-parametric
Wound measurement and histological findings in wound healing area were observed
with one-way ANOVA test (p≤0.05) and Shapiro-Wilk (p>0.05) as normality
test using SPSS software. The one-way ANOVA test was employed for normally distributed,
numerical data and non-paired sample with more than two groups. Causal relation
test was done with Post hoc test to find out if there was any significant
difference between every group.
Effectiveness of noni leaves on inhibiting growth of oral Streptococcus
mutans: Identification of oral bacteria Streptococcus mutans
was conducted using gram stain method and microscopic examination (Fig.
1). The examination showed purple-stained cocci with chain and paired formation.
The activity of noni leaves extract on inhibiting Streptococcus mutans
growth, as seen on diameter of inhibitory zone measured, were observed in concentrations
subsequently 6.25, 12.50, 25, 50 and 100%, respectively.
|| Gram stained Streptococcus mutans
|| Inhibitory zone formed after 18-24 h of incubation
The result of antibacterial effect examination of noni leaves to Streptococcus
mutans showed that the inhibition zone mean was only about 0.28 mm for 100%
concentration which was less than 6 mm. According to David Stout criteria, an
effective inhibitory zone is supposed to be more than 6 mm width. It means that
noni leaves has no effect in inhibiting growth of Streptococcus mutans
(Fig. 2). On control plate, there werent
any bacterial growth found which means the media was not contaminated.
|| Inhibitory zone of S. mutans by noni leaves extract
|+: Clear zone around the well, -: No clear zone around the

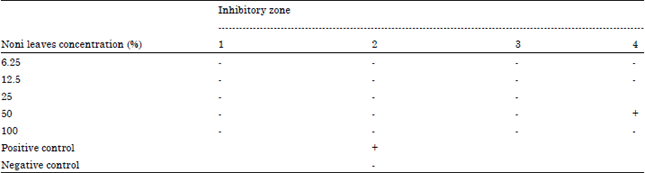

Minimum inhibitory concentration of noni leaves against Streptococcus mutans
can be seen in Table 1. Inhibitory zone diameter which was
created on 6.25, 12.5 and 25%, respectively concentration showed that there
wasnt any suppression on the
growth of the bacteria and on 50% concentration, there was only a slight inhibitory
zone seen. It could be concluded that noni leaves extract has no effect on inhibiting
the growth of Streptococcus mutans.
Effect of noni leaves ethanol extract gel on wound healing observed on wound
width and healing time
Palatal wound width on day 0: Wound width on day 0 was 4 mm on all groups,
equivalent with the diameter of mucosal punch blade. The wound area appeared
to be lighter by natural vasoconstriction process as hemostasis occurred on
the primary phase of wound healing.
Palatal wound width on 3rd day: Wound size was reduced to 3 mm in two
rats and 2 mm in one rat on noni leaves extract group. On povidone iodine group,
only one rat had its wound reduced to 3 mm. However, on the group without medication,
the wound diameter was still 4 mm, the same value as on day 0. The surface of
mucosal wound on povidone iodine group was drier than the group without medication.
A thin layer of new mucosa epithelium was seen on the palate of the rats on
noni leaves extract group.
Palatal wound width on 7th day: The wound size decreased to 3 mm on
one rat and on two other rats the wound diameter still measured as 4 mm. On
povidone iodine group, the wound was also reduced, 3, 1 and 0 mm, respectively.
The wound size was also reduced significantly on ethanol extract group.
Palatal wound width on 14th day: Two rats from noni leaves extract group
on 14th day had their wounds closed perfectly but one rat from the group still
had a slight 1 mm wound on the palate. On povidone iodine treatment group, two
rats had the wound size decreased to 1 mm and the other one had wound 3 mm in
diameter. Two of three rats from the group without medication experienced wound
closure to 1 mm and on the rest of it, the wound size was 1.25 mm.
The povidone iodine treatment group had the similar wound closure pattern with
the noni leaves extract group but the latter was slightly better. However, the
rats on the group without medication experienced a slow wound closure. On this
group, the wound closure happened on 14th day with mean value of the wound diameter
of size 0.6 mm but it was not completely closed.
Data analysis of wound width: Normality test using Shapiro-Wilk assessment
showed only three data had normal distribution which were wound size on 3rd
day of noni leaves extract group, 7th day of povidone iodine group and 7th day
of positive control group without medication. In this case, Kruskal-Wallis test
was conducted (p≤0.05). The result showed that the p-value of wound size
on 3rd day was p = 0.364; on 7th day was p = 0.044 and on 14th day, the p-value
was p = 0.558. It indicated that there was a significant difference of wound
size between the groups on day 7.
The result of Post Hoc Mann-Whitney test (Fig. 3)
showed the p value between non-medication group and noni leaves extract group
on day 3, 7 and 14; were p = 0.246, p = 0.034 and p = 0.317, respectively; comparison
of the group without medication and povidone iodine group were; p = 1.00 on
day 3, p = 0.058 on day 7 and p = 0.796 on day 14. On the other hand, between
noni leaves extract group and povidone iodine group on day 3, 7 and 14, respectively,
the p-values were p = 0.254, p = 0.317 and p = 0.317.
Based on the statistical analysis, the difference on wound size between the
control group without medication and noni leaves extract group was significant
on 7th day. However, comparison among the rest of the groups showed no significant
Effect of noni leaves ethanol extract on wound healing measured by angiogenesis
and fibroblast cells around the wound area
New blood vessel formation around wound area on day 0, 3, 7 and 14: The
wound were prepared on day 0 and subsequently the section was examined with
light microscope. There was no sign of new blood vessel formation around the
wounded area. Some red blood cells were seen among the connective tissue. Figure
4 showed the state of normal palatal mucosa tissue of Wistar rat.
Examination on the sections made on 3rd day after preparation of the wound
showed that on the group without medication, the amount of visible new blood
vessels on each sample were 2, 1 and 1; on povidone iodine group were 3, 2 and
5 and on noni leaves ethanol extract treatment group were 3, 5 and 7. Infiltration
of inflammatory cells were obvious on each group.
|| Comparison of wound width on 0, 3, 7 and 14th day
|| Histological section on day 0 normal oral mucosa of Wistar
By the 7th day, wound preparations were also made on each group. The amount
of visible new blood vessels on the group without treatment were 2, 3 and 3,
respectively; on povidone iodine group were 2, 1 and 2 and on noni leaves ethanol
extract treatment group were 13, 12 and 15, respectively (Fig.
5). New blood vessels examined on each sample for 14th day wound, were 3,
4 and 11, respectively on the group without treatment; on povidone iodine group
were 4, 4 and 7 and on noni leaves ethanol extract treatment group were 25,
28 and 32, respectively.
Fibroblast cell examined around wound area on day 0, 3 and 14: Fibroblast
cell amount on the day 14 was examined from three rats which had terminated
and sectioned. Fibroblast cells seen here were the cells on normal connective
tissue. The fibroblast cells were counted using tally counter with light microscope.
The area examined on newly formed granulation tissue was near the area close
to the wound made. On the group without treatment, amount of fibroblast cells
was 47, 50 and 61, respectively. On povidone iodine group there were 80, 82
and 98, respectively. On noni leaves extract group, the amount was 95, 69 and
85, respectively. Inflammatory cells were seen on each group (Fig.
The amount of fibroblast cells found on each section was 68, 57 and 87, respectively
on non-treated group, on povidone iodine group was 87, 82 and 115 and on noni
leaves ethanol extract treatment group were 110, 132 and 118, respectively.
Fibroblast cell examined on each sample on 14th day, on the non-treatment group
were 87, 55 and 82, respectively on povidone iodine group were 55, 104 and 114
and on noni leaves ethanol extract treatment group were 146, 118 and 114, respectively.
Inflammatory cells were still prominent on the group without any medication
and new connective tissue formation was dense in the group treated with noni
leaves extract (Fig. 7).
Statistical analysis on blood vessel formation and fibroblast count:
Normality test on blood vessel formation examined showed that all groups had
significancy, therefore, one-way ANOVA test (p≤0.05) was performed and the
result displayed that blood vessel count on day 3, 7 and 14, respectively were
significant (p = 0.024, p = 0.000 and p = 0.008).
Histological appearance of wound area
on day 7 (a) Positive control group, (b) Povidone iodine and (c) Noni
Microscopy of wound area on day 3 (a)
Control group, (b) Povidone iodine group and (c) Noni leaves extract group
Histological appearances on wound day
14 (a) Positive control group, (b) Povidone iodine group and (c) Noni

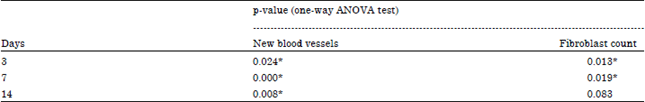

|| Statistical analysis of blood vessel and fibroblast cell
|| Post hoc tukey test result of blood vessel count
|| Post hoc tukey test result of fibroblast cell count
One-way ANOVA test (p≤0.05) was also performed on fibroblast cell count
since the normality test using Shapiro-Wilk showed normal distribution on every
group. On day 3, 7 and 14 examination, the statistical analysis result demonstrated
that all result were not statistically significant, in which the p-value for
3, 7 and 14th day, respectively were p = 0.013, p = 0.019 and p = 0.083 (Table
Post hoc Tukey test result for each groups showed there was significant
difference on blood vessel formation count on day 7 and 14 between noni leaves
extract group with both control and povidone iodine group. There was no significant
difference of blood vessel count between control group and the group given povidone
iodine (Table 3).
However, Post hoc Tukey test conducted on the data of fibroblast cells
showed no statistical significance on every other group mostly, except between
control group with two other group on 3rd day (Table 4), although
the numerical result showed a difference and the statistical analysis was significant
on day 3 and 7 (Table 2).
Noni leaves ethanol extract gel has a benefit on oral mucosa wound healing
possibly because of the active ingredients. Scopoletin, one of the active constituent,
has an anti-inflammatory effect and has an ability to help forming the granulation
tissue during the healing process. Antioxidant elements inside the leaves such
as glutamic acid, carotenoid and flavonoid are able to inhibit the release of
Reactive Oxygen Species (ROS) which damages the connective tissue and its cells
so that the new connective tissue formed during late inflammatory phase can
be maintained. Glutamic acid and carotenoid that have a role on preserving the
immune system. Antibacterial agents like xeronine, proxeronine, saponin, ursolic
acid and anthraquinon also affect the inflammatory process through antimicrobial
effect, they prevent bacteria around the wound area to invade it. Xeronine and
proxeronine work by inhibiting peptidoglycan construction of bacterial wall
and encouraging lysis of the bacteria. Saponin acts as an agent to stop bacterial
cell membrane function while, antraquinon inhibits bacterial synthesis. The
debridement effect, created by the interaction of noni leaves extract with the
wound, produce enzymatic activity of protease which can help in clear necrotic
debris, infected or damaged tissue to promote wound healing (Enoch
et al., 2008; Middleton et al., 2000;
Nayak et al., 2009; Lipsky
and Hoey, 2009; Rasal et al., 2008).
Based on the result of clinical wound examination, it can be assumed that noni
leaves extract has a potency to help the wound to heal faster and without complication.
The extract helped wound healed on day 3, 7 and 14 as compared to application
of povidone iodine treatment and without treatment. It also meant that noni
leaves extract offers as a medication on every phase of wound repair. Blood
vessel formation on the newly-formed tissue as one of the indicator of neoangiogenesis
was slightly higher in the group treated with noni leaves extract, although
it was not statistically significant. Possibly, antiseptic, anti-inflammatory
and antibacterial effect of the active constituents of the leaves was responsible
in this process. The new blood vessels formed can provide nutrition better for
the new tissue so it helped the healing process (Kumar et
al., 2009; DiPietro and Burns, 2003).
The amount of fibroblast can be a marker for wound healing process especially
on excisional wounds that require connective tissue recovery. Newly formed fibroblast
by activation of growth factors such as TGF-β and FGF from macrophage to
the rest of fibroblast progenitor in the connective tissue are appeared by the
end of inflammation phase to the remodeling phase. Based on the examination,
the wound treated by noni leaves extract had slightly higher fibroblast count
as compared to povidone iodine-treated group and more significant compared to
the group without treatment, although statistically the difference was not significant.
One of the active ingredients worked in this process is possibly flavonoid by
avoiding degradation of connective tissue cells by ROS which usually take part
on wound healing and inflammation process (Eming et al.,
2007; Kumar et al., 2009).
In this study, it had found that noni leaves extract did not succeed to inhibit
the growth of bacteria Streptococcus mutans which is the normal flora
found inside the oral cavity. Probably, the antimicrobial agents found on the
leaves (saponin, alkaloid and ursolic acid) was more active to other bacteria
specifically such as Staphylococcus aureus (Kumar
et al., 2010), which can be found on cutaneous wounds (Kumar
et al., 2010; Philip and Martin, 2009).
It can be concluded that noni leaf didnt
have an inhibitory potential against bacteria Streptococcus mutans on
all concentration assessed. However, 10% topical noni leaves extract gel, compared
to 10% povidone iodine proved to help wound repair by reducing wound size on
oral mucosa and accelerating the healing process clinically, increasing the
amount of fibroblast cells and helped the angiogenesis process as examined on
of new blood vessels formed during the wound healing phases.
