Research Article


Evaluation of Antibacterial Potential of Crude Extract of Moringa oleifera seed on Orthopaedics Wound Isolates and Characterization of Phenylmethanamine and Benzyl Isothiocyanate Derivatives



O.A. Oluduro, T.O. Idowu, B.I. Aderiye, O. Famurewa and O.O. Omoboye

Facebook Twitter Digg Reddit Linkedin StumbleUpon E-mail
ABSTRACT

The antibacterial activity of crude aqueous and methanolic extracts of Moringa oleifera seed on some orthopaedic wounds isolates which include Klebsiella pneumoniae, Proteus vulgaris, Providencia stuartii, Escherichia coli, Streptococcus sp., Pseudomonas fluorescens, Acinetobacter baumannii, Burkholderia cepacia, Yersinia enterocolitica, Proteus mirabilis, Serratia rubidae, Salmonella pullorum and Klebsiella oxycota was investigated. Both the crude aqueous and methanolic extracts of the seed demonstrated an appreciable inhibitory effects on the isolates with zone of growth inhibition ranging from 15 to 30.5 mm with aqueous extract and 9 to 20 mm with methanolic extract. Both extracts compared favourably with the reference standard antibiotics used. Minimum inhibitory concentration of the seed ranged from 0.875 to 5.0 μg mL-1 in aqueous extract and 0.875 to 2.5 μg mL-1 in methanolic extract. Phytochemical investigation of the methanolic extract of the seed led to the isolation and identification of new benzyl isothiocyanate and phenylmethanamine derivatives named 4-(β-D-glucopyranosyl-1→4-α-L-rhamnopyranosyloxyl)-benzyl isothiocyanate (4) and 4-O-α-L-rhamnopyranosyloxy-N-glucopyranosyl-1→2-fructopyranosyloxy phenylmethanamine (5) along with three known compounds, 4-hydroxyphenyl acetic acid (1), O-methyl-4-(4'-O-acetyl-α-L-rhamnosyloxy) benzyl thiocarbamate (2) and 4-(α-L-rhamnopyranosyloxyl)-benzyl isothiocyanate (3). The structures were elucidated by extensive spectroscopic analyses which include Infra Red, Ultra Violet, Mass Spectrophotometer, 1D and 2D Nuclear Magnetic Resonance spectra as well as by comparison with literature data. Both the crude aqueous and methanolic extracts displayed broad spectrum of activity as they inhibited both the Gram negative and Gram positive bacteria tested.

Services
Related Articles in ASCI
Search in Google Scholar
View Citation
Report Citation


  How to cite this article:

O.A. Oluduro, T.O. Idowu, B.I. Aderiye, O. Famurewa and O.O. Omoboye, 2012. Evaluation of Antibacterial Potential of Crude Extract of Moringa oleifera seed on Orthopaedics Wound Isolates and Characterization of Phenylmethanamine and Benzyl Isothiocyanate Derivatives. Research Journal of Medicinal Plants, 6: 383-394.

DOI: 10.3923/rjmp.2012.383.394

URL: https://scialert.net/abstract/?doi=rjmp.2012.383.394

Received: August 05, 2011; Accepted: November 27, 2011; Published: January 31, 2012



INTRODUCTION

Moringa oleifera is an ancient tree that is historically known to posses numerous medicinal qualities (Posmontier, 2011) and it’s a native to the sub-Himalayan parts of India, Pakistan, Bangladesh and Afghanistan. This rapidly-growing drumstick tree was utilized by the ancient Romans, Greeks and Egyptians and has become widely cultivated and naturalized in many locations in the tropics and sub tropics, West, East and South Africa, Latin America, the Caribbean, Florida and the Pacific Islands. Previous studies have reported the antimicrobial properties of the various parts of Moringa roots, flowers, bark and stem including seeds (Lockett et al., 2000; Ghebremichael et al., 2005; Anwar and Rashid, 2007; Walter et al., 2011). Moringa seeds are also known for its coagulation properties for treatment of water and waste water (Katayon et al., 2005; Oluduro and Aderiye, 2007). The seeds are used as a sexual virility drug for treating erectile dysfunction in men and also in women for prolonging sexual activity.

Traditional herbalists in Nigeria use variety of herbal preparations to treat different kinds of ailments including microbial infections (Oluduro and Omoboye, 2010). In folklore medicine, the preparation of medicinal plants in the treatment of microbial infection (both topical and systemic) have attracted a lot of the attention of scientists as readily available alternatives to the existing drugs to which many infectious microorganism have been resistant. Moringa oleifera preparations had been reported to possess antibiotic, antitripanosomal, hypotensive, antispasmodic, antiulcer, anti-inflammatory, hypoglycemic activities, as well as considerable efficacy in antibiosis and even reduction of Schistosome cercariae titre (Fahey, 2005; Posmontier, 2011). Its larvicidal and repellent potential has also been reported recently (Prabhu et al., 2011).

The seed kernel of M. oleifera seed has been employed in the treatment of bronchial asthma and found to show an appreciable decrease in severity of symptoms of asthma and also simultaneous improvement in respiratory functions (Fahey et al., 2001).

In particular, this plant family is rich in compounds containing the simple sugar, rhamnose and it is rich in a fairly unique group of compounds such as glucosinolates and isothiocyanates (Fahey et al., 2001; Bennett et al., 2003). For example, specific components of Moringa preparations that have been reported to have hypo-tensive, anticancer and antibacterial activity include 4-(4'-O-acetyl-α-L-rhamnopyranosyloxy)benzyl isothiocyanate [1], 4-(α-L-rhamnopyranosyloxy)benzyl isothiocyanate [2, 21], niazimicin [3], pterygospermin [4], benzyl isothiocyanate [5] and 4-(β-D-glucopyranosyl-1→4-α-L-rhamnopyranosyloxyl)-benzyl thiocarboxamide [21]. While these compounds are relatively unique to the Moringa family, it is also rich in a number of vitamins and minerals as well as other more commonly recognized phytochemicals such as the carotenoids (including β-carotene or pro-vitamin A). These attributes are all discussed extensively by Fuglier (1999).

The seed extracts have also been found to be effective on hepatic carcinogen metabolizing enzymes, antioxidant parameters and skin pilloma-genesis in mice and the seed ointment had similar effect to neomycin against S. aureus pyodermia in mice (Costa-Lotufo et al., 2005). However, antibacterial resistance, especially among wound contaminating bacteria, is an important issue that has created a number of problems in treatment of chronic wounds infections and necessitates the search for alternative drugs or natural antibacterial agents.

Moreover, despite many researches that have been carried out on the inhibitory property of M. oleifera seed against several bacterial and fungal isolates from various sources, there is paucity of information about the antibacterial property of the seed on wound isolates. The present study therefore, investigates the antibacterial activity of crude aqueous extract of M. oleifera seed on some orthopaedic wound isolates and characterization of novel phenylmethanamine and benzyl isothiocyanate derivatives from the methanolic extract of the seed.

MATERIALS AND METHODS

General: Solvents used for extraction and chromatography were redistilled before use. Adsorption column chromatography was performed using reversed-phase C18 column. All Thin Layer Chromatography (TLC) analysis were performed at ambient temperature using analytical silica gel 60 GF254+366 pre-coated aluminium backed plates (Merck, 0.25 mm thick). The resulting spots on TLC plates were visualized under UV light (254 nm) and detected by the use of vanillin/H2SO4, spray reagents. The UV spectra of isolated compounds were obtained on a computerized Perkin-Elmer Lambda Ultra Violet visible spectrophotometer at 200-700 nm. The Fourier transform IR spectra were recorded on Unicom spectrophotometer (in KBr pellets).

1H-NMR spectra were recorded at 400 MHz and 13C-NMR spectra were recorded at 100 MHz both in CDCl3 with Me4Si as internal standard and in (CD3)2SO (DMSO) on Bruker DPX-400 MHz spectrophotometer, chemical shifts are expressed in δ (ppm) and coupling constants (J) in Hz. The Heteronuclear Multiples Quantum Correlation (HMQC) spectra that provide direct 'H and 13C heteronuclear connectivity was determined. The distortionless Enhancement by Polarization Transfer spectroscopy (DEPT) was also utilized to distinguish between CH3, CH2 and CH. The EI- MS and FAB-MS were recorded on an APIIII (Sciex, UK). The temperature of the ionization source was 650°C, voltage 4.7 KV, N2 as the sheat gas. The MS was obtained at a scan rate of 122x103 (0.5 scan per sec, dwelling time 1 sec).

Microorganisms: Bacterial isolates used for the antibacterial assay were isolated from the wounds of some orthopaedic in-patients of the Obafemi Awolowo University Teaching Hospital, Ile-Ife, Nigeria. Wounds samples of the patients were cultured on MacConkey and nutrient agar. Obtained isolates were identified and confirmed using conventional biochemical characteristics and Analytical Profile Index (API) 20E Micro tubes system (API Ltd. Product, France) where applicable and maintained on 0.8% nutrient agar slants at 4°C until used.

Collection and identification of plant material: Moringa oleifera (Lam.) seeds were harvested from the tree planted around the doctors' residential quarters at the State Specialist Hospital Complex in Ado-Ekiti. A voucher specimen identified by Dr. Illoh was deposited at the herbarium, Department of Botany, Obafemi Awolowo University, Ile-Ife, Nigeria.

Extraction and isolation: The seeds were dehusked and air dried at room temperature. The seed was ground into a fine powder using a scientific electric blender. The 100 and 500 g of the seed powder were soaked separately in 500 mL of water (aqueous extraction) and in methanol (methanol extraction) for 72 h at room temperature. Obtained filtered extracts (aqueous and methanol) were concentrated using a rotary evaporator at 45°C and 6 and 35 g of each extract were obtained.

The methanolic extract was fractionated on preparative HPLC using reverse phase C18 column with the gradient of solvent system CHCl3-MeOH (1:1) to 100% MeOH at a flow rate of 4 mL min-1 as a mobile phase Fractions of about 20 mL each were collected and TLC of various fractions carried out on silica using chloroform: methanol (24:1) as the solvent system to monitor the purity of each compound. Many peaks were detected; however, only five major peaks coded as peak MO1, MO2, MO3, MO4 and MO5 were isolated pure in fairly sufficient amount for the elucidation of chemical structure.

4-(β-D-glucopyranosyl-1→4-α-L-rhamnopyranosyloxyl)-benzyl isothiocyanate (4): Light brown solid: IR (Kbr) Vmax cm-1 3100, 2900; 1670, 1610, 1500, 1300, 1100 and 1000 cm-1; UV (MeOH) λmax 273 and 225 nm; FAB-MS m/z (rel.int.%) 496.2 [M+Na] + (10), 325 (18), 310.0 [M-163.8+H]+ (5), 163.8 [M-310+H] 146 (25), 107.02 (10).

For 1H NMR (400 MHz, CDCl3 with Me4Si) and 13C NMR (100 MHz, CDCl3 with Me4Si) spectroscopic data (Table 2).

1H NMR (400 MHz, CDCl3 with Me4Si) 7.07 (1H, d, J = 8.4), 7.36 (1H, d, J = 8.4), 4.23 (bs), α-rhamnose: δ 5.44 (1H, d, J = 3.2 Hz, H- 1'), 3.76 – 4.60 (m, H- 2', H- 3', H- 4', H- 5') , 1.26 (3H, d, J = 6.0Hz, H- 6'), Glucose: 5.18 (1H, J = 4.0 Hz, H- 1''), 3.44-3.62 (m, H- 2'', H- 3'', H- 4'', H-5'', H-6'').

13C NMR (100 MHz, CDCl3 with Me4Si) 157.06 (C-1), 118.08 (C-2, C-6), 130.58 (C-3, C-5), 130.85 (C-4), 44.02 (C-7), rhamnose: 93.71 (C- 1'), 79.36 (C- 2'), 71.34 (C- 3'), 75.77 (C- 4'), 69.05 (C- 5'), 18.22 (C- 6'), Glucose: 99.87 (C- 1''), 82.53 (C- 2''), 77.98 (C- 3''), 69.45 (C- 4''), 72.81 (C- 5''), 62.02 (C- 6''), NH-C = S: 131.82.

4-O-α-L-rhamnopyranosyloxy-N-glucopyranosyl-1→2-fructopyranosyloxy phenylmethanamine (5): Light brown solid: IR (KBr) Vmax cm-1 3410, 2900; 1670, 1590-1610 cm-1; FAB-MS m/z (rel.int.%) 632.1 [M+Na] + (4), 463.1 [M-146+H] (4), 321 (15), 447 [M-163.8-H]+ (3), 343.1 (22%), 163 [M-464.0+H]+, 163.1 (M-147+146 (25), 107.02 (10).

For 1H NMR {400 MHz, (CD3)2SO (DMSO)} and 13C NMR {(100 MHz, (CD3)2SO (DMSO)} spectroscopic data (Table 3).

1H NMR {400 MHz, (CD3)2SO (DMSO)} 7.00 (1H, d, J = 8.4, H-2, H-6), 146. (23), 7.25 (1H, d, J = 8.4, H-3, H-5), 4.07 (1H, d, J = 8.0 Hz, 15.6 Hz), rhamnose : δ 5.35 (1H, bs, H- 1'), 3.44-3.78 (m, H- 2', H- 3', H- 4', H- 5') , 1.11 (3H, d, J = 6.0Hz, H- 6'), glucose: 5.17 (1H, J = 4.0 Hz, H- 1''), 3.44-3.64 (m, H- 2'', H- 3'', H- 4'', H- 5'', H- 6''), fructose: 3.81 (1H, bs, H- 1'''), 3.38 – 3.88 (m, H- 3''', H- 4''', H- 5''', H- 6''').

13C NMR {100 MHz, (CD3)2SO (DMSO)} 155.01 (C-1), 116.50 (C-2, C-6), 129.10 (C-3, C-5), 129.77 (C-4), 37.02 (C-7), rhamnose: 91.71 (C- 1'), 70.40 (C- 2'), 77.00 (C- 3'), 74.25 (C- 4'), 69.71 (C- 5'), 17.89 (C- 6'), glucose: 98.46 (C- 1''), 82.53 (C- 2''), 77.98 (C- 3''), 69.45 (C- 4''), 72.81 (C- 5''), 62.02 (C- 6''), fructose: 60.92 (C- 1'''), 104.01 (C- 2'''), 81.28 (C- 3'''), 70.20 (C- 4'''), 71.60 (C- 5'''), 60.45 (C- 6''').

Antibacterial assay: The agar disc diffusion method described by Oluma et al. (2004) was used to determine the antibacterial activity. Two grams of concentrated seed extract was dissolved in 5% dimethyl sulfoxide (DMSO) and sterile discs (6 mm, Hi-media, India) were impregnated with 50 μL of 60 mg mL-1 of the seed extract. The discs were carefully and firmly placed on the Mueller-Hinton Agar (MHA) plates previously seeded with standardized bacterial suspensions (approximately 1.5x106 CFU mL-1). Ciprofloxacin and ceftriaxone antibiotics were used as positive control and paper disc impregnated with DMSO was used as negative control. The plates were then incubated at 37°C for 24 h after which, the diameter of zones of growth inhibition around each disc was measured and recorded.

Minimum inhibitory concentration: Minimum Inhibitory Concentrations (MICs) of the crude aqueous and methanolic extracts of the seed on the wound isolates was carried out using agar dilution technique (Andrews, 2009). The test extracts were dissolved in 5% DMSO to obtain 60 mg mL-1 stock solutions. Various concentrations (10.0, 5.0, 2.5, 1.25 μg mL-1) were prepared from the stock solution from which 1 mL-1 each was added to 19 mL of sterile Mueller-Hinton Agar and poured into Petri dishes. The test organisms were then introduced into microtitre holes on the agar plates and incubated at 37°C. The least concentration of extract with no zone of growth inhibition was taken as the MIC of the extract.

RESULTS AND DISCUSSION

Antibacterial activity: All the wound isolates were sensitive to the seed extracts, with zones of inhibition varying from 6 mm in Acinetobacter baumannii in methanolic extract to 30.5 mm in Streptococcus sp. administered with 60 mg mL-1 of the aqueous extract of Moringa oleifera seed. Streptococcus sp. was the most sensitive to the extracts, with inhibition ranging between 20 and 30.5 mm. Meanwhile, Acinetobacter baumannii was the least sensitive (6-16.5 mm). Burkholderia cepacia, Pseudomonas fluorescens and Yersinia enterocolitica were resistant to 60 mg mL-1 of either ceftriaxone or ciprofloxacin (Table 1a). In all cases, the activity of the aqueous extract was greater when compared to the effectiveness of either the methanol extract or any of the antibiotics administered. For example, the aqueous extract recorded between 110 and 205% effectiveness on Acinetobacter baumannii and Streptococcus sp., respectively than when either of the antibiotics was used (Table 1a). Minimum inhibitory concentration of the seed ranged from 0.875 to 5.0 μg mL-1 in aqueous extract and 0.875 to 2.5 μg mL in methanolic extract (Table 1b). The findings concur with earlier studies. Spiliotis et al. (1997) reported antimicrobial activity from various varieties of Moringa oleifera seeds against Bacillus cereus, Candida albicans, Streptococcus faecalis, Staphylococcus aureus, Staphylococcus epidermidis, Bacillus subtilis, Pseudomonas aeruginosa, E. coli and Aspergillus niger.

Table 1a: Antibacterial activity of the crude extract of Moringa oleifera seed on wound isolates
Image for - Evaluation of Antibacterial Potential of Crude Extract of Moringa oleifera seed on Orthopaedics Wound Isolates and Characterization of Phenylmethanamine and Benzyl Isothiocyanate Derivatives
R: Resistance

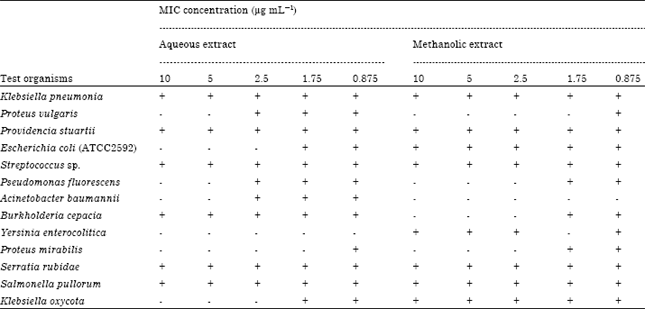

Table 1b: Minimum inhibitory concentration of M. oleifera seed
Image for - Evaluation of Antibacterial Potential of Crude Extract of Moringa oleifera seed on Orthopaedics Wound Isolates and Characterization of Phenylmethanamine and Benzyl Isothiocyanate Derivatives
-: No growth; +: Growth

Jabeen et al. (2008) evaluated antimicrobial activity from the seeds of Moringa oleifera against bacterial (Pasteurella multocida, Escherichia coli, Bacillus subtilis and Staphylococcus aureus) and fungal (Fusarium solani and Rhizopus solani) strains. Authors reported that the zones of growth inhibition showed greater sensitivity against the bacterial strains as compared to the fungal strains and that Minimum Inhibitory Concentrations (MIC) of the extracts revealed that Pasteurella multocida and Bacillus subtilis were most sensitive strains.

The inhibitory property noticed in the seed of M. oleifera may be traced to the presence of various compounds present in the seed including the two newly reported benzyl isothiocyanate and phenylmethanamine derivatives in this study viz., 4-(β-D-glucopyranosyl-1→4-α-L-rhamnopyranosyloxyl)-benzyl isothiocyanate (4) and 4-O- α-L-rhamnopyranosyloxy-N-glucopyranosyl-1→2-fructopyranosyloxy phenylmethanamine (5).

Structure elucidation: HPLC fractionation of the methanolic extract from the seeds of M. oleifera yielded compounds 1-5 (Fig. 1). Compounds 1, 2 and 3 are phenyl acetic acid derivative, benzyl isothiocyanate and thiocarbamate derivatives. Based on HMBC and comparison of its spectroscopic data (MS, 1H and 13C NMR) to those reported in literature, compound 1 was identified to be 4-hydroxyphenyl acetic acid (Saleem, 1995), compound 2 was identified to be O-methyl-4-(4'-O-acetyl-α-L-rhamnosyloxy) benzyl thiocarbamate commonly known as niazicin A (Faizi et al., 1995; Fahey, 2005) while compound 3 was identified to be 4-(α-L-rhamnopyranosyloxyl)-benzyl isothiocyanate (Faizi et al., 1995; Saleem, 1995; Oluduro et al., 2010) which has been reported isolated previously from the same plant.

The molecular formula 4 was established to be C20H27NO10S by FAB mass spectrum ([M + Na]+ at m/z 496.2). The mass spectrum also gave a significant fragment ion at m/z 325.1 (C12H21O10), m/z 310.1 (C14H16NO5S), m/z 163.1 (C6H11NO5), m/z 163.1 (C6H11O5) and m/z 146.02 (C8H6NS) and m/z 107.02 (C7H9N) which substantiated the structure of glycoside 4. The ultraviolet/visible spectrum of compound 4 showed maximum absorption at 273 and 225 mm in MeOH.

Image for - Evaluation of Antibacterial Potential of Crude Extract of Moringa oleifera seed on Orthopaedics Wound Isolates and Characterization of Phenylmethanamine and Benzyl Isothiocyanate Derivatives
Fig. 1: HPLC fractionation of the methanolic extract from the seeds of M. oleifera yielded compounds 1-5

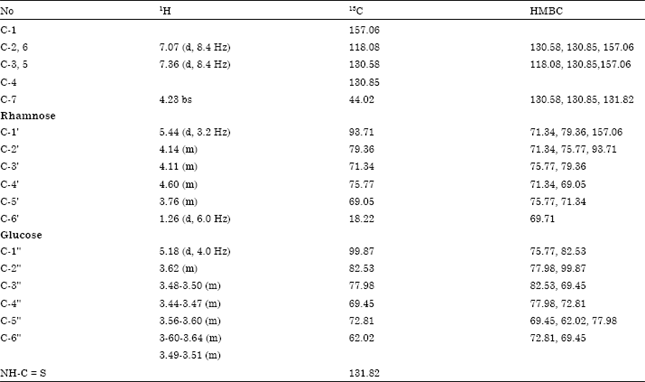

Table 2: 1H- and 13C-NMR data of compound 4 (400 MHz for 1H-NMR, 100 MHz for 13C-NMR, in (CD3)2SO (CD3OD)
Image for - Evaluation of Antibacterial Potential of Crude Extract of Moringa oleifera seed on Orthopaedics Wound Isolates and Characterization of Phenylmethanamine and Benzyl Isothiocyanate Derivatives
Coupling patterns and coupling constants (J) in Hz are given in parentheses

The infra-red spectrum also revealed several characteristic bands at the following peaks 3100, 2900; 1500, 1300,1100 and 1000 and were assigned to C-H and C-O-C (stretch asymmetric) and C-O-C (stretch symmetric) vibrations, respectively. The 1670 and 1610 bands were indicative of C = S and N-H bonds signaling the presence of thiocarbonate linkage in the molecule.

Image for - Evaluation of Antibacterial Potential of Crude Extract of Moringa oleifera seed on Orthopaedics Wound Isolates and Characterization of Phenylmethanamine and Benzyl Isothiocyanate Derivatives
Fig. 2: Important HMBC correlations of compound 4

The 13C NMR and DEPT spectra indicated that the 20 carbons of the molecule are present as three methyls (one CHMe), one methylene, one oxygenated methylene, ten methines, four aromatic CH and three quaternary carbons. The presence of two sugar moieties was evident from the structural features from 1H NMR and 13C NMR spectra (Table 2) which showed the presence of two anomeric protons of the sugar unit δH 5.44 (1 H, d, J = 3.2 Hz, H-1') attributed to C-1' (δC 93.71) and 5.18 (d, 4.0 Hz) attributed to C-1" (δC 99.87) for glucose. The anomeric proton and a methyl doublets signal at δH 1.26 (3H, d, J = 6.0 Hz) assignable to C - 6' also supported this assignment of the sugar as rhamnose. In the 13C NMR, the four signals from δC 69.08 to δC 79.36 (Table 2) were attributable to the carbons 2, 3, 4 and 5 of the sugar moiety. It is also clear that the rhamnose is attached at C-4' (OH) because of the HMBC cross peak observed between H-1' (δH 5.44) and C-4 (δC 157.06). The glycosidic linkage between the glucose and the rhamnose was determined to be 1→4 from the observation of the long-range correlation between H-1'' and C-4' in the HMBC spectrum of 4 (Fig. 2).

In the 1H NMR spectrum, the two-proton mutually coupled doublets at δ 7.07 (J 8.4 Hz) and 7.36 (J 8.4 Hz) showed the presence of p-substituted benzene ring in the molecule which was supported by the correlation of theses protons at δ 7.07 (H-2, 6) and δ 7.36 (H-3, 5) with the CH carbons at 129.11 and 116.50, respectively in the HMBC and COSY spectra.

Furthermore, the 1-J coupling in the HMQC of a signal at δH 4.23 (H-7) with the carbon resonance at δ 44.02 in the HMQC indicated the presence of benzylic methylene. That the NH is linked with benzylic methylene carbon was evident from the diagnostic peak at m/z 107.02. The presence of isothiocyanate in 4 was very evident at the 129-131 regions of 13C NMR where there are four distinct signals (three attributed to carbon at position 3, 4 and 5 of the phenyl ring while the fourth one is attributed to the C = S) (Fig. 3). These data are comparable with the values reported for 3. The difference between compounds 3 and 4 is the presence of glucose in compound 4 which is unmistakably missing in compound 3. The MS fragmentation pathways of compound 4 are shown in Fig. 3.

From the foregoing findings, compound 4 was identified as 4-(β-D-glucopyranosyl-1→4-α-L-rhamnopyranosyloxyl)-benzyl isothiocyanate which represents a new natural product described here to our knowledge, for the first time.

Compound 5 was isolated as a light brown solid. The positive- ion EI-MS exhibited a sodiated ions [M+Na]+ at m/z 632.1 compatible with the molecular formula C25H39NO16. The mass spectrum also gave a significant fragment ion at m/z 463.1 (C19H29NO12), m/z 447.3 (C19H29NO11), m/z 343.1 (C12H22NO11), m/z 325.1 (C12H21O10), m/z 163.1 (C6H11O5) and m/z 146.0 (C6H11O4) which substantiated the structure of glycoside 5. The IR spectrum showed absorption at 3410, 2900 and 1590-1610 cm-1 characteristic of hydroxyl group and aromatic ring nature.

Image for - Evaluation of Antibacterial Potential of Crude Extract of Moringa oleifera seed on Orthopaedics Wound Isolates and Characterization of Phenylmethanamine and Benzyl Isothiocyanate Derivatives
Fig. 3: MS Fragmentation pathways for compound 4

Image for - Evaluation of Antibacterial Potential of Crude Extract of Moringa oleifera seed on Orthopaedics Wound Isolates and Characterization of Phenylmethanamine and Benzyl Isothiocyanate Derivatives
Fig. 4: Important HMBC correlations of compound 5

The 1H-NMR spectrum suggested that compound 5 is a trisaccharide of phenylmethanamine on the basis of two anomeric protons (one for rhamnose and the other for glucose), at 5.35 (bs) and 5.17 (d, 4.0 Hz), a quaternary sp3 carbon of a fructopyranose moiety at δC 104.01, three oxygenated methylene at δC 60.45, 60.92 and 62.02 belonging to sucrose. The carbon signals at δc 17.89 and proton signal of a methyl doublets at δH 1.11 (3H, d, J = 6.0 Hz) assignable to C - 6' also supported this assignment of the rhamnose as part of the three sugars. The presence of 15 carbon signals in the sugar region (δC 60-80 ppm) together with two anomeric carbons at δc 98.45, 91.71, the methyl carbon of the rhamnose at δC 17.89 and a quaternary sp3 carbon of a fructose moiety at δC 104.01 unequivocally confirm the presence of three sugars in the phenylmethanamine aglycone.

The 1H NMR spectra of 5 (Fig. 4) showed an AA'BB' (A2B2) system due to the protons of the phenyl ring and the assignment was further confirmed by the 13C NMR spectra (δC 118.09 for C-2'/6' and δC 130.84 for C-3'/5' (Table 3). The 1H-NMR spectrum indicated the presence of two anomeric protons assigned to H-1' and C-1' (δH 5.35, bs and δC 98.45) and H-2''and C-1" (δH 5.18, d, J = 3.64 Hz and δC 91.71). The coupling constants of anomeric protons at δH 5.18 (J = 4.00 Hz) confirmed β-configuration of the glucose. In the 13C NMR, the fifteen signals from δC 60.45 to δC 82.53 (Table 3) were attributable to the carbons 2, 3, 4 and 5 of each of the sugar moiety.

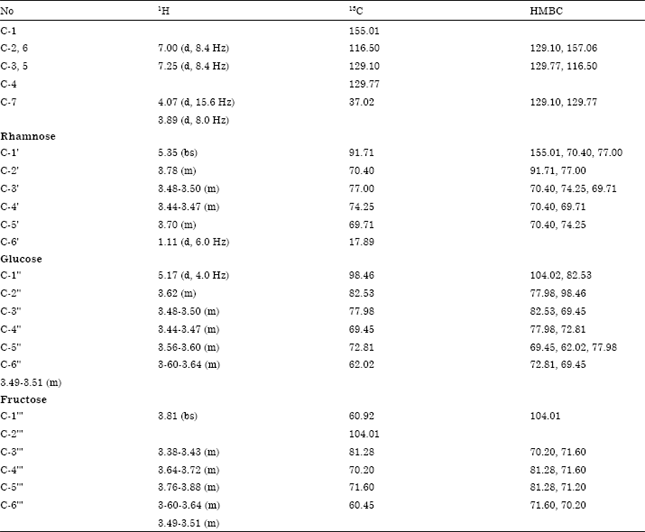

Table 3: 1H- and 13C-NMR data of compound 5 (400 MHz for 1H-NMR, 100 MHz for 13C-NMR, in (CD3)2SO (DMSO)
Image for - Evaluation of Antibacterial Potential of Crude Extract of Moringa oleifera seed on Orthopaedics Wound Isolates and Characterization of Phenylmethanamine and Benzyl Isothiocyanate Derivatives
Coupling patterns and coupling constants (J) in Hz are given in parentheses

From the HMBC correlations, it is also clear that the rhamnose is attached at C-1 while the glycosidic linkage in the sucrose is evident from the HMBC cross peak observed between H-1" (δH 5.35) and C-2"' (δC 104.01) of the fructose.

Furthermore, a signal at δH 4.07 and 3.89 (H-7) in the 1H NMR spectrum (Table 3) correlated with the carbon resonance at δ 37.02 in the HMQC indicated the presence of benzylic methylene. The same signal at δH 4.07 and 3.89 (H-7) in HMBC cross peak with C-4 (δC 129.77) and C-3, 5 (δC 129.10). The 1H NMR and 13C NMR data was consistent with AA'BB' (A2B2) system and benzylic methylene of niazicin A save the absence of thiocarbonyl carbon and presence of the sucrose in compound 5. The MS fragmentation pathways of compound 5 are shown in Fig. 5.

However, compound 5 is somewhat different from compound 4 in that it has isothiocyanate group present instead of amine unit in compound 4 and also the absence of fructopyranose unit in compound 4. In the 129-131 regions of 13C NMR where there are three signals in compound 5 which are attributed to carbon at positions 3, 4 and 5, four distinct signals were evident in that same region in which case the fourth was attributed to C = S in compound 4.

Image for - Evaluation of Antibacterial Potential of Crude Extract of Moringa oleifera seed on Orthopaedics Wound Isolates and Characterization of Phenylmethanamine and Benzyl Isothiocyanate Derivatives
Fig. 5: MS fragmentation pathways for compound 5

From the above information compound 5 was therefore identified as 4-O-α-L-rhamnopyranosyloxy-N-glucopyranosyl-1→2-fructopyranosyloxy phenylmethanamine. This remarkable compound is isolated for the first time from Moringa oleifera Lam. (Moringaceae) and natural sources.

CONCLUSION

In conclusion, the aqueous seed extract showed stronger inhibitory activity on the wound isolates compared to the methanolic extract. Both the crude aqueous and methanolic extracts displayed broad spectrum of activity as they inhibit both the gram negative and gram positive bacteria used. It is suggested that the various compounds including the newly isolated compounds in this study may be responsible for the observed activity. However, further studies involving isolation of individual components (compounds) from the seed extract in sufficient quantity for activity and not just for structural elucidation alone are needed to for further clarification.

ACKNOWLEDGMENTS

The authors are grateful to Prof J.B. Connolly who retired from the Department of Chemistry, University of Glasgow, Scotland for technical assistance provided in recording the NMR spectra and for the MS measurements.

REFERENCES

1:  Anwar, F. and U. Rashid, 2007. Physico-chemical characteristics of Moringa oleifera seeds and seed oil from a wild provenance of Pakistan. Pak. J. Bot., 39: 1443-1453.
Direct Link  |

2:  Bennett, R.N., F.A. Mellon, N. Foidl, J.H. Pratt, M.S. Dupont, L. Perkibns and P.A. Kroon, 2003. Profiling glucosinolates and phenolics in vegetative and reproductive tissues of the multi-purpose trees Moringa oleifera L. (Horseradish Tree) and Moringa stenopetala L. J. Agric. Food Chem., 51: 3546-3553.
CrossRef  |  PubMed  |  Direct Link  |

3:  Andrews, J.M., 2009. BSAC standardized disc susceptibility testing method (version 8). J. Antimicrob. Chemother., 64: 454-489.
CrossRef  |  Direct Link  |

4:  Costa-Lotufo, L.V., M.T.H. Khan, A. Ather, D.V. Wilke and P.C. Jimenez et al., 2005. Studies of the anticancer potential of plants used in Bangladeshi folk medicine. J. Ethnopharmacol., 99: 21-30.
CrossRef  |  PubMed  |  Direct Link  |

5:  Fahey, J.W., A.T. Zalcmann and P. Talalay, 2001. The chemical diversity and distribution of glucosinolates and isothiocyanates among plants. Phytochemistry, 56: 5-51.
CrossRef  |  PubMed  |  Direct Link  |

6:  Fahey, J.W., 2005. Moringa oleifera: A review of the medical evidence for its nutritional, therapeutic and prophylactic properties. Part 1. Trees Life J., Vol. 1.
CrossRef  |  Direct Link  |

7:  Faizi, S., B.S. Siddiqui, R. Saleem, S. Siddiqui, K. Aftab and A.H. Gilani, 1995. Fully acetylated carbamate and hypotensive thiocarbamate glycosides from Moringa oleifera. Phytochemistry, 38: 957-963.
CrossRef  |  PubMed  |  Direct Link  |

8:  Fuglie, L.J., 1999. The Miracle Tree-Moringa oleifera: Natural Nutrition for the Tropics. Church World Service, Dakkar, Senegal, Pages: 68

9:  Jabeen, R., M. Shahid, A. Jamil and M. Ashraf, 2008. Microscopic evaluation of the antimicrobial activity of seed extracts of Moringa oleifera. Pak. J. Bot., 40: 1349-1358.
Direct Link  |

10:  Katayon, S., M.J.M.M. Noor, M. Asma, L.A. Abdul Ghani and A.M. Thamer et al., 2006. Effects of storage conditions of Moringa oleifera seeds on its performance in coagulation. Bioresour. Technol., 97: 1455-1460.
CrossRef  |  Direct Link  |

11:  Ghebremichael, K.A., K.R. Gunaratna, H. Henriksson, H. Brumer and G. Dalhammar, 2005. A simple purification and activity assay of the coagulant protein from Moringa oleifera seed. Water Res., 39: 2338-2344.
CrossRef  |  PubMed  |  Direct Link  |

12:  Lockett, C.T., C.C. Calvert and L.E. Grivetti, 2000. Energy and micronutrient composition of dietary and medicinal wild plants consumed during drought. Study of rural Fulani, Northeastern Nigeria. Int. J. Food Sci. Nutr., 51: 195-208.
CrossRef  |  Direct Link  |

13:  Oluduro, A.O. and B.I. Aderiye, 2007. Efficacy of Moringa oleifera seed extract on the microflora of surface and underground water. J. Plant Sci., 2: 453-458.
CrossRef  |  Direct Link  |

14:  Oluduro, O.A., B.I. Aderiye, Connolly, E.T. Akintayo and O. Famurewa, 2010. Characterization and antimicrobial activity of 4-(β-D-glucopyranosyl-1→4-α-L-rhamnopyranosyloxy)-benzyl thiocarboxamide; a novel bioactive compound from Moringa oleifera seed extract. Folia Microbiol., 55: 422-426.
CrossRef  |  PubMed  |  Direct Link  |

15:  Oluduro, A. and O. Omoboye, 2010. In vitro antibacterial potentials and synergistic effect of South-Western Nigerian plant parts used in folklore remedy for Salmonella typhi infection. Nat. Sci., 8: 52-59.
Direct Link  |

16:  Oluma, H.O.A., E.U. Umeh, A. Onekutu and J. Okolo, 2004. Antibacterial potentials of eight medicinal plants from the lower Benue valley of Nigeria. Niger. J. Bot., 17: 1-11.

17:  Posmontier, B., 2011. The medicinal qualities of Moringa oleifera. Holistic Nursing Pract., 25: 80-87.
PubMed  |  Direct Link  |

18:  Prabhu, K., K. Murugan, A. Nareshkumar, N. Ramasubramanian and S. Bragadeeswaran, 2011. Larvicidal and Repellent potential of Moringa oleifera against malarial vector, Anopheles stephensi Liston (Insecta: Diptera: Culicidae). Asian Pac. J. Trop. Biomed., 1: 124-129.
CrossRef  |  PubMed  |  Direct Link  |

19:  Saleem, R., 1995. Studies in the chemical constituents of Moringa oleifera Lam and preparation of potential biologically signficant derivatives of 8-hydroxyquinoline. Ph.D. Thesis, University of Karachi, Karachi, Pakistan.

20:  Spiliotis, V., S. Lalas, V. Gergis and V. Dourtoglou, 1997. Comparison of antimicrobial activity of seeds of different Moringa oleifera varieties. Pharm. Pharmacol. Lett., 7: 39-40.

21:  Walter, A., W. Samuel, A. Peter and O. Joseph, 2011. Antibacterial activity of Moringa oleifera and Moringa stenopetala methanol and n-hexane seed extracts on bacteria implicated in water borne diseases. Afr. J. Microbiol. Res., 5: 153-157.
Direct Link  |
