Influence of Drying Method on Flavonoid Content of Cosmos caudatus (Kunth) Leaves
Wafiq Auliana Handayani
The aim of this study was to search for the optimal method to prepare crude drug with the highest flavonoid content from fresh Cosmos caudatus leaves. Flavonoid contents of Cosmos caudatus leaves were studied in relation to the processes involved in food and herbal medicine preparation. Quercitrin and rutin were identified as the major flavonoid component of the leaves. The flavonoid content substantially increased during boiling in water. This increase was not caused by the enhancement of extractability but more likely to be due to the endogenous biotransformation of precursor or intermediates into flavonoids. However, heating of fresh leaves in an air oven at elevated temperature from 30 to 100°C decreased the total flavonoid content except at 40°C by which the total flavonoid content increased approximately by 30%. Pre-heating of leaves at 60°C substantially reduced flavonoid content to only 30% compared to control and further drying at 60°C left the flavonoid to only 12% compared to control. The experiments suggested that drying temperature affects flavonoid content of Cosmos leaves and the highest content might be obtained when the leaves is prepared by drying at 40° C.
Received: February 07, 2010;
Accepted: April 15, 2010;
Published: July 17, 2010
Cosmos caudatus (Kunth), Asteraceae is one of Indonesian vegetable plants
that is usually consumed freshly as salad or cooked by boiling with other spices.
In East Java, it is also used in traditional medicine to reduce blood pressure.
It is also used to improve blood circulation, as carminative, apetizer and insect
repellent (Shui et al., 2005). Previous experiment
showed that Cosmos leaves contained highest flavonoid levels compared
to other 20 Indonesian vegetable plants (unpublished data). Flavonoid has been
reported to have strong antioxidant and radical scavenging activities, which
is expected to have beneficial effects in the prevention of degenerative diseases
(Ebrahimzadeh et al., 2010; Makris
and Rossiter, 2002; Weisburger et al., 2001;
Tabak et al., 2001). The chemical components
of Cosmos leaves previously reported include quersetin-3-O-β-arabinofuranoside,
quercetin-3-O-α-rhamnosida, quersetin-3-O-β-glukosida and quercetin,
proantocyanidin, chlorogenic acid, neo-chlorogenic and cryptochlorogenic acid
(Shui et al., 2005).
We have previously found that the flavonoid content of Cosmos leaves
increased substantially upon boiling (unpublished data). Similar effect of boiling
was reported by Moriyama and Nagai (2001) demonstrating
the increase of kaempferol-3-O-gentibiose in Cassia alata leaves after
heating at 85°C for 40 min. Although the flavonoid content decreased upon
prolonged heating, compared to non-heated leaves the content was relatively
higher in leaves exposed to 180 min heating. Rutin, a pure flavonoid glycoside,
was stable upon boiling for 300 min (Buchner et al.,
2006) or heated at 100°C for 3 h, but degraded when heated at 180°C
(Murakami et al., 2004). It was surprising that
roasting was also reported to substantially increase total phenol and procyanidin
level in peel almond (Garrido et al., 2008).
On the other hand, flavonoid of mulberry, Zingiberaceae leaves decreased when
heated at high temperature under the sun, air oven or microwave (Katsube
et al., 2009; Chan et al., 2009).
These findings demonstrated that different type of flavonoid showed different
stability upon heating. Thus, it was reported that luteolin of willow (Salix
purpurea) was stable upon heating but not apigenin (Julkunen-Tiitto
and Sorsa, 2001). Both compounds are flavone type and they are differed
by hydroxylation pattern at ring B.
The aim of this study was to search for the optimal method to prepare crude drug with the highest flavonoid content from fresh Cosmos caudatus leaves. In particular, we investigated the effects of pre-treatment through heating prior to drying and drying with various conditions.
MATERIALS AND METHODS
Plant materials: Cosmos caudatus was harvested (in January 2009)
and the leaves were separated for the experiments. The plant was authenticated
at the Herbarium Bandungense, The School of Life Science and Technology, Bandung
Institute of Technology.
Pre-drying and drying: Heating of Cosmos leaves was conducted in an air oven by keeping freshly harvested leaves in a closed Petri dish to minimize evaporation. Drying of pre-heated leaves was also conducted in the air oven.
Flavonoid extraction: One gram of dried leaves were powdered and macerated with 10 mL MeOH-H2O (7:3) for 24 h, followed by percolation and re-percolation with 4x3 mL of solvent. The combined extracts were then adjusted to 25 mL with the same solvent. Further dilutions were made as necessary to obtain better separation of flavonoid components on High Pressure Liquid Chromatography (HPLC). Prior to injection, the extracts were filtered through 0.50 μm nylon membrane.
Determination of flavonoid: Flavonoid content in Cosmos extracts was determined by HPLC (HP 1100 series) and calculated as rutin content, which was used as reference in quantification of flavonoid. Chromatography was performed by injecting 20 μL extract into the HPLC apparatus, which was supported with ODS (Hypersil) column having 5 μm particle size, 100 mm length, 4 mm id., set at temperature of 35°C, flow rate 0.8 mL min-1 and detection at 350 nm (DAD). Gradient elution was performed with HOAC 5% (A) and MeOH (B) for 15 min in the following order: 0-5 min (30% B), 6-10 min (50% B), 11-14 min (100% B) and 15 min (30% B). Flavonoid peaks were identified based on their UV spectra and the amount was calculated by summing the area of flavonoid peaks and compared with the area of rutin peak that was used as reference.
RESULTS AND DISCUSSION
Identification of flavonoid content: Separation of Cosmos extract
on HPLC (Fig. 1) gave two major flavonoid peaks shown by their
UV spectra with two peaks at 350 and 270 nm, respectively. This spectrum indicated
that the separated flavonoids were flavon or conjugated flavonol. Further identification
was conducted by co-chromatography using rutin and quercitrin as markers.
|| Chromatogram of flavonoid extract from Cosmos caudatus

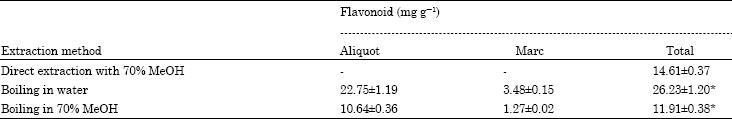

|| Flavonoid content in fresh, boiled in water and boiled in
|*p<0.05, compared to direct extraction from fresh tissue
The major peak eluted at 10.814 min was then identified as quercitrin while
peak at 9.740 min as rutin. These results were consistent with those reported
by Shui et al. (2005) that identified flavonoid
of Cosmos leaves using LC-MS. Peak eluted at 2.794 based on its UV spectrum
was not considered as flavonoid and might be another type of phenolic compound.
Boiling and flavonoid contents of Cosmos leaves: Our previous
experiment (unpublished data) showed that boiling substantially increased flavonoid
content of Cosmos leaves. Such increase may be due to the increase of
flavonoid extractability or de novo formation during boiling process.
Experiment by boiling of Cosmos leaves in water and in 70% methanol was
performed to test the above possibility. In this experiment, direct extraction
was performed by grinding fresh tissue with 70% MeOH followed by maceration
for 24 h and rinsing the marc three times with the same solvent in order to
exhaustively extract the flavonoids present in the leaves. This extraction procedure
was carried out as recommended by Xu et al. (2005).
Extraction through boiling was conducted by boiling 5 g unground leaves in 50
mL of solvent for 15 min followed by analysis of flavonoids from the aliquot
and the marc. Flavonoid from the marc was analyzed with the same procedure used
to analyze that extracted from fresh tissue.
Results presented in Table 1 showed that boiling in MeOH
70% decreased flavonoid content of the leaves, while boiling in water substantially
increased flavonoid content at almost twice as high. It is very likely that
such increase was not due to the enhancement of flavonoid extractability but
de novo formation of flavonoid during the heating of the tissue in the
aqueous environment. In young tissue, common precursor for the synthesis of
flavonoid together with other phenylpropanoid are available and upon heating,
the activity of enzymes involved in flavonoid synthesis may increase resulting
in rapid conversion of precursor to flavonoid.

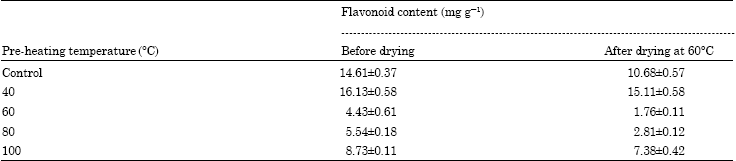

|| Flavonoid content in Cosmos caudatus leaves after
pre-heating at various temperature followed by drying at 60°C
|All drying treatment significantly decreased flavonoid content
In addition, boiling temperature will inactivate polyphenoloxidase (Yamaguchi
et al., 2003) that lead to the accumulation of flavonoid in the tissue.
Further experiment is needed to support the proposed mechanism. Heating has
been shown to influences phenolic content in plant materials. It has been demonstrated
that roasting increased total phenol and procyanidin in peel almond (Garrido
et al., 2008). Other authors demonstrated the decrease in total phenolic
content of Alpinia zerumbet, Etlingera elatior, Curcuma longa
and Kaempferia galanga leaves upon drying on air, microwave oven and
air oven at 50°C, but the phenolic content was preserved if they freeze
dried (Chan et al., 2009).
Pre-heating and flavonoid content of Cosmos leaves: In this experiment,
fresh leaves were heated at various temperatures ranging from 40 to 100°C
for the period of 30 min. During pre-treatment, leaves were kept in Petri dishes
to avoid evaporation and drying. After pre-heating, leaves were dried at 60°C.
Fresh leaves directly dried at 60°C was used as control. Flavonoid contents
were measured before and after drying process. The objective of this experiment
was to investigate the possibility to increase flavonoid content of the crude
drug through pre-heating treatment before drying process. The experiment results
showed that pre-heating decreased flavonoid content except at 40°C (Table
2). Pre-heating at 40°C increased flavonoid content by 10.4% compared
to control. Increasing pre-heating temperature from 40 to 60°C decreased
the flavonoid content. However, pre-heating at temperatures higher than 60°C
increased the flavonoid content but not as high as the result after 40°C.
The lowest level of flavonoid content was observed in dried leaves that was
pre-heated at 60°C. This might be due to the increase of activity of flavonoid
degrading enzyme and further increase in pre-heating temperature decreased the
enzyme activity, resulted in increased flavonoid content. Our results were in
line with the results of Prabha and Patwardhan (1982)
showing that polyphenoloxidase had optimum activity at pH 5.4 and temperature
of 50°C and the activity was still preserved at 60°C. However, at 70°C
or above significant lost of activity was observed. Results presented in Table
2 showed that flavonoid level was lowest at 60°C and increase at 80
and 100°C. These results are consistent with the characteristic of polyphenoloxidase
related to temperature as reported by Prabha and Patwardhan
After drying process, flavonoid content resulted form most of the treatments
decreased compared to that before drying. The smallest decrease was observed
after pre-heated leaves at 40°C. Although, the decrease was significant
at p<0.05, the figure was only 6.32%. Substantial decrease was observed in
control, after pre-heated at 60 and 80°C, reaching 26.90, 60.27 and 49.28%,
respectively. While pre-heated leaves at 100°C only resulted in 15.46% decrease.
|| Flavonoid content of Cosmos leaves after drying at
40 and 60°C
|*p<0.05 compared to fresh leaves
Drying apricots at 55 and 75°C also resulted in the decrease in catechin,
epicatechin, rutin and quercetine-3-glucoside (Madrau et
al., 2009). Total phenolic content of a number plant materials also
declined when they were dried at 55°C (Chan et al.,
2009). The decreased in flavonoid and polyphenol when dried at temperature
around 50°C might be due to the activity of polyphenoloxidase (Prabha
and Patwardhan, 1982) and this explanation has also been proposed by Mrkic
et al. (2006), Buchner et al. (2006),
Rohn et al. (2007) and Madrau
et al. (2009). The possibility of flavonoid decrease due to Mailard
reaction (Piga et al., 2003; Durmaz
and Alpaslan, 2007) is unlikeent of Cosmos caudatus leaves after
boiling in water as shown in Table 1. It was expected that
pre-treatment at elevated temperature will increase flavonoid content similar
to that of boiling in water that enhanced flavonoid content to 79.53%.
ly to take place at 60°C, since pre-heating at 80 and 100°C increased
the flavonoid level.
Our present results suggested that pre-heating and drying at elevated temperatures
will not increase flavonoid content of Cosmos caudatus leaves. However,
the data did not explain the increase in flavonoid cont
It is interesting to observe the phenomenon after heating at 60°C, which
demonstrated the lowest level of flavonoid content after pre-heating. Before
the treatment, flavonoid was shown to be present, but after the treatment the
level decreased. These results suggest that flavonoid of Cosmos leaves
undergoes transformation into another metabolites that might be due to the increase
in the flavonoid degrading enzyme activity such as polyphenoloxidase (Prabha
and Patwardhan, 1982). Although, the level of flavonoid significantly decreased
when fresh leaves was dried at 60°C, the flavonoid content was still retained
to a level of 73.11%. During drying, water in the leaves evaporated might lead
to a decrease in the activity of flavonoid degrading enzyme that needs aqueous
media to exert its catalytic activity. These observations suggest that heat
treatment at 60°C such as pre-heating or drying is not recommended for the
preparation of crude drug from Cosmos leaves if the level of flavonoid
is to be maintained.
Drying of Cosmos caudatus leaves: Most crude drugs are kept dry to facilitate long term storage and more efficient processing, such as the need for smaller amount of solvent used for extraction. Since the pre-heating of Cosmos leaves did not produce substantial increase in flavonoid content and a slight increase was found in pre-heating at moderate temperature (40°C), pre-heating process is not worthwhile to be included in crude drug preparation from Cosmos leaves. As shown in Table 3, it is interesting to note that drying at 60°C decreased flavonoid content by 22%, while at 40°C increased the content by 30.87%. The findings further necessitate considering these two temperatures for the efficiency of flavonoid isolation from Cosmos caudatus leaves.
Pre-heating of Cosmos leaves at elevated temperature did not increase flavonoid content except at 40°C and pre-heating at 60°C leads to highest decrease in flavonoid content. Based on the experimental results, crude drug of Cosmos leaves was best prepared by drying at 40°C.
1: Buchner, N., A. Krumbein, S. Rohn and L.W. Kroh, 2006. Effect of thermal processing on the rutin and quercetin. Rapid Commun. Mass Spectrom., 20: 3229-3235.
2: Chan, E.W.C., Y.Y. Lim, S.K. Wong, K.K. Lim, S.P. Tan, F.S. Lianto and M.Y. Yong, 2009. Effects of different drying methods on the antioxidant properties of leaves and tea of ginger species. Food Chem., 113: 166-172.
CrossRef | Direct Link |
3: Durmaz, G. and M. Alpaslan, 2007. Antioxidant properties of roasted apricot (Prunus armeniaca L.) kernel. Food Chem., 100: 1177-1181.
CrossRef | Direct Link |
4: Ebrahimzadeh, M.A., S.M. Nabavi, S.F. Nabavi, F. Bahramian and A.R. Bekhradnia, 2010. Antioxidant and free radical scavenging activity of H. officinalis L. var. Angustifolius, V. Odorata, B. Hyrcana and C. Speciosum. Pak. J. Pharm. Sci., 23: 29-34.
PubMed | Direct Link |
5: Garrido, I., M. Monagas, C. G`omez-Cordov`es and B. Bartolom`e, 2008. Polyphenols and antioxidant properties of almond skins: Influence of industrial processing. J. Food Sci., 73: C106-C115.
6: Julkunen-Tiitto, R. and S. Sorsa, 2001. Testing the effect of drying methods on willow flavonoids, tannins and salicylates. J. Chem. Ecol., 27: 779-789.
7: Katsube, T., Y. Tsurunaga, M. Sugiyama, T. Furuno and Y. Yamasaki, 2009. Effect of air-drying temperature on antioxidant capacity and stability of polyphenolic compounds in mulberry (Morus alba L.) leaves. Food Chem., 113: 964-969.
8: Madrau, M.A., A. Piscopo, A.M. Sanguinetti, A. Del Caro, M. Polana, F.V. Romeo and A. Piga, 2009. Effect of drying temperature on polyphenolic content and antioxidant activity of apricots. Eur. Food Res. Technol., 228: 441-448.
CrossRef | Direct Link |
9: Makris, D.P. and J.T. Rossiter, 2002. Effect of natural antioxidants on heat-induced, copper(ii) catalyzed, oxidative degradation of quercetin and rutin (Quercetin-3-O-Rutinoside) in aqueous model system. J. Sci. Food Agric., 82: 1147-1153.
10: Moriyama, H., T. Iizuka and M. Nagai, 2001. A stabilized flavonoid glycoside in heat-treated Cassia alata leaves and its structural elucidation. Yakugaku Zasshi, 121: 817-820.
CrossRef | PubMed | Direct Link |
11: Mrkic, V., E. Cocci, M.D. Rosa and G. Sacchetti, 2006. Effect of drying conditions on bioactive compounds and antioxidant activity of broccoli (Brassica Oleracea L.). J. Sci. Food Agric., 86: 1559-1566.
12: Murakami, M., T. Yamaguchi, H. Takamura and T. Matoba, 2004. Effects of thermal treatment on radical-scavenging activity of single and mixed polyphenolic compounds. J. Food Sci., 69: 7-10.
13: Piga, A., A. Del Caro and G. Corda, 2003. From plums to prunes: influence of drying parameters on polyphenols and antioxidant activity. J. Agric. Food Chem., 51: 3675-3681.
14: Prabha, T.N. and M.V. Patwardhan, 1982. Purification and properties of polyphenoloxidase of mango peel (Mangifera indica). J. Biosci., 4: 69-78.
15: Rohn, S.N., G. Buchner, M. Driemel, L. Rauser and W. Kroh, 2007. Thermal degradation of onion quercetin glucosides under roasting conditions. J. Agric. Food Chem., 55: 1568-1573.
16: Shui, G., L.P. Leong and S.P. Wong, 2005. Rapid screening and characterisation of antioxidants of Cosmos caudatus using liquid chromatography coupled with mass spectrometry. J. Chromatogr. B, 827: 127-138.
17: Tabak, C., I.C. Arts, H.A. Smit, D. Heederik and D. Kromhout, 2001. Chronic obstructive pulmonary disease and intake of catechins, flavonols and flavones: The morgen study. Am. J. Respir. Crit. Care Med., 164: 61-64.
18: Weisburger, J.H., J.R. Hosey, E. Larios, B. Pittman, E. Zang, Y. Hara and G. Cheraux, 2001. Investigation of commercial mitolife as an antioxidant and antimutagen. Nutrition, 17: 322-325.
19: Xu, Y., Z. Rui and F. Hong, 2005. Studies on the optimal process to extract flavonoids from red-raspberry fruits. Nat. Sci., 3: 43-46.
20: Yamaguchi, T., M. Katsuda, Y. Oda, J. Terao and K. Kanazawa et al., 2003. Influence of polyphenol and ascorbate oxidases during cooking process on the radical-scavenging activity of vegetables. Food Sci. Technol. Res., 9: 79-83.
