Phytochemical Analysis and Antibacterial Screening of in vivo and in vitro Extracts of Indian Medicinal Herb: Anethum graveolens

Sonali Jana and G.S. Shekhawat
Facebook Twitter Digg Reddit Linkedin StumbleUpon E-mail

The antimicrobial potential of the aqueous and ethanolic extracts of seeds, leaves, roots, callus and in vitro regenerated plantlets leaves of Anethum graveolens have been evaluated against important bacterial strains, Escherichia coli HB101 (MTCC-82), Bacillus subtilis (MTCC-441), Bacillus cereus (MTCC-1306), Micrococcus luteus (MTCC-2452). The antimicrobial activity was determined in aqueous and ethanol extracts using both agar disc diffusion and agar well diffusion method. The ethanolic extracts were found to be more potent than aqueous extracts of all parts of plant studied. The ethanolic extracts of seeds showed strong activity against all bacterial strains. In comparison to in vivo, in vitro plant extracts depicted reduced activity. The phytochemical screening of the plant parts showed that leaves, stems, roots, in vitro callus and regenerated leaves were rich in tannins, terpenoids, cardiac glycosides and flavonoids. Though, the seeds of Anethum have been used traditionally as decoctions or infusions prepared in water to treat various ailments, due to the presence of active component, hence, they show maximum activity. During the present study, we have tested effectiveness of in vivo plant parts as well as in vitro grown callus and leaves, on selected strains of bacteria. These phytochemicals and secondary metabolites could be responsible for the antibacterial activities exhibited by the extract and hence, justify the medicinal uses of A. graveolens by common folks.

Related Articles in ASCI
Search in Google Scholar
View Citation
Report Citation

  How to cite this article:

Sonali Jana and G.S. Shekhawat, 2010. Phytochemical Analysis and Antibacterial Screening of in vivo and in vitro Extracts of Indian Medicinal Herb: Anethum graveolens. Research Journal of Medicinal Plants, 4: 206-212.

DOI: 10.3923/rjmp.2010.206.212



Medicinal plants have been used for the treatment of various human ailments since long. A revolution came in the medicinal world with the discovery of antibiotics, for treatment of various bacterial infections. However, their indiscriminate use has led to an alarming increase in antibiotic resistance among microorganisms, giving rise to multiresistant strains, which has become a global concern (Shariff, 2001). Thus, there is a renewed interest in exploring natural resources for such compounds. The need of the hour is to screen a number of new medicinal plants for promising biological activity and there in vitro propagation to conserve the biodiversity (Mathur et al., 2008; Shekhawat et al., 2009, 2002). Various plants have been documented in the development of novel drugs, by evaluating their antimicrobial activity, studying active phytochemical constituents and bioactive compounds by various modern analytical techniques. It is believed that crude extract from plants are more effective than isolated components due to their synergistic effect. From the safety point of view, spices and medicinal herbs are mostly targeted to meet the therapeutic demands. Since then efficacy of many medicinal plants in the treatment of many diseases have been put to test in many laboratories (Shajahan and Ramesh, 2004).

Anethum graveolens belongs to family Apiaceae, commonly known as sowa. The genus name Anethum is derived from Greek word aneeson or aneeton, which means strong smelling. Its common use in ayurvedic medicine is in abdominal discomfort, colic and for promoting digestion (Pullaiah, 2002). Its volatile seed oil is of utmost importance and interest. The seed is bitter, stomachic, antipyretic, carminative and antihelminthic and used in ulcers, abdominal pain, flatulence and preparations of gripe water (Sharma, 2004). Carvone and limonene are monoterpenes, which are present as main constituent of oil from seeds (Santos et al., 2002). The α-phellandrene, dill ether and myristicin are the compounds, which form the important odor of dill herb (Bonnlander and Winterhalter, 2000; Blank et al., 1992). Its activity against a range of bacteria and fungi has been the subject of many studies (Arora and Kaur, 2007; Nair and Chanda, 2007; Singh et al., 2005). But to the best of our knowledge, there are no reports available on roots, in vitro callus and regenerated leaves against antibacterial activities of its aqueous and ethanol extracts of this important plant. The objective of the present study was conducted to evaluate the antimicrobial activity of aqueous and ethanolic extracts of plant parts and in vitro grown callus and regenerated leaves and also the preliminary screening for phytochemicals in the plant parts. In vitro callus and regenerated plantlets antimicrobial activity have not been reported yet.


Plant Material
Seeds were procured from Jawaharlal Nehru Krishi Vishwa Vidyalaya (JNKVV) Jabalpur in September 2008 and plants were raised from seeds in Botanical Garden of Banasthali University, Rajasthan, India. The identification and authentication of plant material was confirmed at the Department of Botany, Rajasthan University, Jaipur. Fresh plant material were washed under running tap water, air dried and then homogenized to fine powder and stored in airtight bottles at 4°C. In vitro callus and regenerated leaves raised from leaf as explants were shade dried and then stored in powdered form.

Phytochemical Screening
Qualitative phytochemical analysis of the crude powder of plant parts collected were determined as reported by Aiyelaagbe and Osamudiamen (2009) and Egwaikhide et al. (2007) are as follows:

Small quantity of extract was mixed with distilled water and heated on H2O bath. It was filtered and Ferric chloride was added to the filtrate. A dark green color indicates presence of tannins.

About 0.2 g was dissolved in diluted NaOH and HCl was added. A yellow solution that turns colorless indicates the presence of flavonoids.

About 0.2 g of plant extract was taken and 5 mL of distilled water was added and then boiled. Frothing persistence shows presence of saponins.

Steroids (Libermann-Burchard Reaction)
Two hundred milligram plant material in 10 mL chloroform, filtered. Two hundred milliliter of acetic anhydride was added to 2 mL filtrate with 2 mL H2SO4. The color changes from violet to blue or green in some samples indicating the presence of steroids.

About 0.5 g of plant extract was dissolved in distilled water and filtered. The filtrate was boiled with 2% HCl solution. Red precipitate shows the presence of phlobatanins.

Terpenoids (Salkowski Method)
About 0.5 g of each extract in 2 mL of chloroform. Concentrated H2SO4 carefully added to form a layer. A reddish brown coloration of the interface was formed to show positive results for the presence of terpenoids.

Cardiac Glycoside
About 0.5g of each was treated with 2 mL of glacial acetic acid containing a drop of FeCl3 solution. This was underlayered with 1 mL of conc. H2SO4. A brown ring obtained at the interface indicated the presence of de-oxy sugar characteristics of cardenolides.

Anthraquinone (Borntrger’s Test)
About 0.5 g of the extract was taken into a dry test tube and 5 mL of chloroform was added and shaken for 5 min. The extract was filtered and the filtrate was shaken with equal volume of 10% ammonia solution. A pink violet or red color in the ammonical layer indicates presence of anthraquinone.

Preparation of Plant Extract
For aqueous extraction, 10 g of air-dried powder was added to distilled water and boiled on slow heat for 2 h. It was then filtered through 8 layers of muslin cloth and centrifuged at 5000 g for 10 min. The supernatant was collected. This procedure was repeated twice. After 6 h, the supernatant collected at an interval of every 2 h, was pooled together and concentrated to make the final volume one-fourth of the original volume (Parekh and Chanda, 2007a, b). It was then autoclaved at 121°C temperature and at 15 lbs pressure and stored at 4°C.

For solvent extraction, 10 g of air dried powder was taken in 100 mL of organic solvent (ethanol) in a conical flask, plugged with cotton wool and then kept on a rotary shaker at 190-220 rpm for 24 h. After 24 h, the supernatant was collected and the solvent evaporated to make the final volume one-fourth of original volume (Parekh et al., 2005) and stored at 4°C in airtight bottles.

Bacterial Strains
The bacterial strains are procured from the Microbial Type Culture Collection (Institute of Microbial Technology, Chandigarh, India). Bacterial strains Escherichia coliHB101 (MTCC-82), Bacillus subtilis (MTCC-441), Bacillus cereus (MTCC-1306) and Micrococcus luteus (MTCC-2452) were selected for present study. They were cultured on nutrient agar broth (HiMedia) and stored at 4°C.

Antibacterial Activity
The antibacterial activities of different plant part extracts were evaluated by agar disc diffusion method (Bauer et al., 1966; Garg and Jain, 1988) and agar well diffusion method (Parekh and Chanda, 2007a, b) using nutrient agar plates previously inoculated with 24 h old broth cultures of the test organisms. Active cultures for experiments were prepared by inoculating a loopful of cells from stock cultures to flask of nutrient agar broth and incubated on rotary shaker. The molten Mueller Hinton agar (Hi Media) was inoculated with 100 μL of the inoculum (1x108 cfu mL-1) and poured into the sterile Petri plates (HiMedia). For agar disc diffusion method, a well was prepared in the seeded agar plate with the help of cork-borer (0.85 cm). The test compound (50 μL) was introduced in the well and the plates were incubated at 37°C for 24 h. For agar disc diffusion method, the test compound (50 μL) was introduced on the sterile disc (0.7 cm) (HiMedia) and then allowed to dry. Then, the disc was impregnated on the seeded agar plate. Equal volumes of distilled water and ethanol were assayed along to act as negative controls. The plates were observed for the presence of inhibition of bacterial growth that was indicated by a clear zone around the wells. Microbial growth was determined by measuring the diameter of zone of inhibition in millimeters. The result was obtained by measuring the size of zone of inhibition and was expressed in terms of average diameter of zone of inhibition. The results were compared with the standard antibiotics Streptomycin (10 μg mL-1).

Statistical Procedures
Antimicrobial activity experiments were repeated thrice in triplicates each time and the average values with Standard Deviation (SD) are presented in Table 2 and 3.


The phytochemical screening of the plant parts showed that leaves, stems, roots and in vitro callus and regenerated leaves were rich in tannins, terpenoids, cardiac glycosides and flavonoids (Table 1). Of aqueous extracts, seeds showed the maximum activity in comparison to leaves and roots extract, whereas aqueous extracts of in vitro grown callus and leaves has shown no activity against bacterial strains (Table 2, 3). However, none of the aqueous extracts showed any activity against M. luteus. Ethanolic extracts of leaves, roots, in vitro grown callus and regenerated leaves showed considerable activity against all the strains but maximum activity was shown by ethanolic extract of seeds against all the strains. Well diffusion method revealed that the maximum antimicrobial activity was showed by ethanolic extracts of seeds against E. coli followed by B. cereus>B. subtilis>M. luteus. Maximum activity against E. coli by ethanolic seed extract was 15.4 mm, against B. cereus zone of inhibition was 13.2 mm, against B. subtilis, it was 11.13 mm and zone of inhibition against M. luteus was 8.9 mm (Table 2).

Table 1:

Qualitative analysis of the phytochemicals of Anethum graveolens L. seeds, leaves, roots, callus, in vitro regenerated leaves

Image for - Phytochemical Analysis and Antibacterial Screening of in vivo and in vitro Extracts of Indian Medicinal Herb: Anethum graveolens

+: Present, - : Absent

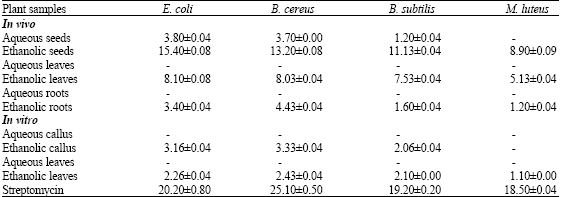

Table 2:

Antibacterial activity of Anethum graveolens L. aqueous and ethanolic extracts against bacterial strains by well diffusion method

Image for - Phytochemical Analysis and Antibacterial Screening of in vivo and in vitro Extracts of Indian Medicinal Herb: Anethum graveolens

Table 3:

Antibacterial activity of Anethum graveolens L. aqueous and ethanolic extracts against bacterial strains by disc method

Image for - Phytochemical Analysis and Antibacterial Screening of in vivo and in vitro Extracts of Indian Medicinal Herb: Anethum graveolens

Micrococcus luteus was most resistant among other strains as it showed minimal inhibitions. Agar disc method also revealed similar observations. Against E. coli, maximum activity was shown by ethanolic seeds (11.6 mm) and then ethanolic leaves in vivo (8.83 mm). Against B. cereus maximum activity was shown by ethanolic extract of seeds and inhibition zone was 13.16 m. Similarly, against B. subtilis maximum activity was shown by ethanolic seeds (8.86 mm). Against M. luteus only ethanolic extract of seeds and leaves showed activity, inhibition zone was 6.8 and 3.2 mm obtained subsequently. Thus, the trend with agar disc method was B. cereus > E. coli> B. subtilis and then M. luteus (Table 3). Ethanolic extracts of roots, callus and in vitro regenerated leaves has also shown very minimal antibacterial activity against the strains. It is quite possible that due to the optimum in vitro environmental conditions callus and regenerated leaves accumulate lesser amount of active components, in comparison to in vivo plant parts and hence, shows reduced activity.


The traditional healers use primarily water as the solvent but we found in this study, the extracts prepared by ethanol provided more consistent antimicrobial activity compared to those extracted by water. This might have resulted from the lack of solubility of the active constituents in aqueous solutions while ethanol extract showed some degree of antibacterial activity, as also reported in methanol extract of some medicinal plants by Parekh et al. (2005). Further trials using solvents of various polarities will explore the effects of solvent composition on extract efficacy (Romero et al., 2005). Similarly, acetone extract of Anethum graveolens and its seed oil has been reported to show statistically significant antibacterial activities against Staphylococcus aureus, Bacillus cereus, Salmonella typhii, Pseudomonas aeruginosa, Bacillus subtilis as well as antifungal activities against Aspergillus niger, Fusarium moniliforme, Penicilium citrinum (Singh et al., 2005). Anethum graveolens have been in use for many years as decoctions or infusions prepared in water to treat ailments. It has been reported that aqueous extracts of Anethum graveolens showed a broad-spectrum antibacterial activity against Staphylococcus aureus, Escherichia coli, Pseudomonas aeruginosa, Salmonella typhimurim, Shigella flexneri and Salmonella typhii (Arora and Kaur, 2007). As depicted from the results of antibacterial activity against all strains, ethanolic seed extract and aqueous extract have shown maximum activities. Hence, seeds have more potential than other plant parts in terms of microbial activity. It may be due to the constituents present in the seeds of Anethum graveolens, as it is rich in carvone (55.2%), limonene (16.6%), dill-apiole (43.2%), linoleic acid (23.1%) and anethole (11%) (Singh et al., 2005). The higher activity of extract can be explained on the basis of the chemical structure of their major constituents such as dill-apiole and anethole, which have aromatic nucleus containing polar functional group that is known to form hydrogen bonds with active sites of the target enzyme (Farag et al., 1989). It is reported that its seed oil has a little activity against gram-negative bacteria, which may be due to the differences in composition related to variety; agronomic practice and processing which also influence concentrations of active ingredients, hence, effecting antimicrobial properties (Delaquis et al., 2002).

In conclusion, seeds of the plant have strong antimicrobial potential but results also revealed that apart from seeds of Anethum other plant parts like leaves, roots, callus and in vitro regenerated leaves also have the potential to show antimicrobial activity. This plant can be further subjected to enhancement and isolation of the therapeutic antimicrobials and carry out further pharmacological evaluation.


G.S. Shekhawat is thankful to Prof. Aditya Shastri, Vice Chancellor, Banasthali University, for providing all the necessary requirements to successfully carry out this research.


1:  Aiyelaagbe, O.O. and P.M. Osamudiamen, 2009. Phytochemical screening for active compounds in Mangifera indica leaves from Ibadan, Oyo State. Plant Sci. Res., 2: 11-13.
Direct Link  |

2:  Arora, D.S. and J.G. Kaur, 2007. Antibacterial activity of some Indian medicinal plants. J. Nat. Med., 61: 313-317.
CrossRef  |  Direct Link  |

3:  Bauer, A.W., W.M.M. Kirby, J.C. Sherris and M. Turck, 1966. Antibiotic susceptibility testing by a standardized single disk method. Am. J. Clin. Pathol., 45: 493-496.
CrossRef  |  PubMed  |  Direct Link  |

4:  Blank, I., A. Sen and W. Grosch, 1992. Sensory study on the character- impact flavour compounds of dill herb (Anethum graveolens L.). Food Chem., 43: 337-343.
Direct Link  |

5:  Bonnlander, B. and P. Winterhalter, 2000. 9-Hydroxypiperitone β-D-glucopyranoside and other polar constituents from dill (Anethum graveolens L.) herb. J. Agric. Food Chem., 48: 4821-4825.
CrossRef  |  Direct Link  |

6:  Delaquis, P.J., K. Stanich, B. Girard and G. Mazza, 2002. Antimicrobial activity of individual and mixed fractions of dill, cilantro, coriander and eucalyptus essential oils. Int. J. Food Microbiol., 74: 101-109.
CrossRef  |  PubMed  |  Direct Link  |

7:  Egwaikhide, P.A., S.O. Okeniyi and C.E. Gimba, 2007. Screening for antimicrobial activity and phytochemical constituents of some Nigerian medicinal plants. Adv. Biol. Res., 1: 155-158.

8:  Farag, R.S., Z.Y. Daw and S.H. Abo-Raya, 1989. Influence of some spice essential oils on Aspergillus parasiticus growth and production of aflatoxins in a synthetic medium. J. Food Sci., 54: 74-76.
CrossRef  |  Direct Link  |

9:  Garg, S.C. and R.K. Jain, 1988. Antimicrobial efficacy of essential oil from Curcuma caesia. Ind J. Microbiol., 38: 169-170.

10:  Mathur, S., G.S. Shekhawat and A. Batra, 2008. Somatic embryogenesis and plantlet regeneration from cotyledon explants of Salvadora persica L. Phytomorphology, 58: 57-63.

11:  Nair, R. and S. Chanda, 2007. Antibacterial activities of some medicinal plants of the Western region of India. Turk. J. Biol., 31: 231-236.
Direct Link  |

12:  Parekh, J. and S.V. Chanda, 2007. In vitro antimicrobial activity and phytochemical analysis of some Indian medicinal plants. Turk. J. Biol., 31: 53-58.
Direct Link  |

13:  Parekh, J. and S. Chanda, 2007. Antibacterial and phytochemical studies on twelve species of Indian medicinal plants. Afr. J. Biomed. Res., 10: 175-181.
Direct Link  |

14:  Jigna, P., N. Rathish and C. Sumitra, 2005. Preliminary screening of some folklore medicinal plants from western India for potential antimicrobial activity. Indian J. Pharmacol., 37: 408-409.
Direct Link  |

15:  Pullaiah, T., 2002. Medicinal Plants in India. Vol. 2, Regency Publications, New Delhi, India, pp: 441-443

16:  Romero, C.D., S.F. Chopin, G. Buck, E. Martinez, M. Garcia and L. Bixby, 2005. Antibacterial properties of common herbal remedies of the Southwest. J. Ethnopharmacol., 99: 253-257.
CrossRef  |  PubMed  |  Direct Link  |

17:  Santos, A.G., A.C. Figueiredo, P.M.L. Lourenco, J.G. Barroso and L.G. Pedro et al., 2002. Hairy root cultures of Anethum graveolens (dill): Establishment, growth, time-course study of their essential oil and its comparison with parent plant oils. Biotechnol. Lett., 24: 1031-1036.
CrossRef  |  Direct Link  |

18:  Shajahan, A. and S. Ramesh, 2004. Antimicrobial activity of crude ectocarp extract of pomegranate (Punica granatum L.) against some selected enteropathogenic bacteria. Asian J. Microbiol. Biotech. Env. Sci., 6: 647-648.
Direct Link  |

19:  Shariff, Z.M., 2001. Modern Herbal Therapy for Common Ailments. Vol. 1, Spectrum Books Limited, Ibandan, Nigeria, pp: 9-84

20:  Sharma, R., 2004. Agrotechniques of Medicinal Plants. 1st Edn., Daya Publishing House, New Delhi, ISBN: 9788170353461, pp: 3-8
Direct Link  |

21:  Singh, G., S. Maurya, M.P. Lampasona and C. Catalan, 2005. Chemical constituents, antimicrobial investigations and antioxidative potentials of Anethum graveolens L. Essential oil and acetone extract: Part 52. J. Food Sci., 70: 208-215.
Direct Link  |

22:  Shekhawat, G.S., A. Batra and S. Mathur, 2002. A reliable in vitro protocol for rapid mass propagation of Azadirachta indica Juss. J. Plant Biol., 29: 109-112.

23:  Shekhawat, G.S., S. Mathur and A. Batra, 2009. Role of phytohormones and nitrogen in somatic embryogenesis induction in cell culture derived from leaflets of Azadirachta indica. Biol. Plant., 53: 707-710.
CrossRef  |  Direct Link  |
