Research Article


Comparative Study of Hemodialysis in Arteriovenous Fistulas in Low Versus High Blood Flow Rate



Sultan Abdulwadoud Alshoabi, Ali Twyla Almutairi, Fahad H. Alhazmi, Abdulaziz A. Qurashi, Abdulrahman Saleh Alharbi and Adel Faiz Alhejaili

Facebook Twitter Digg Reddit Linkedin StumbleUpon E-mail
ABSTRACT

Background and Objective: Arteriovenous Fistula (AVF) is an essential requirement in Hemodialysis (HD) to remove toxins and excess fluid from the blood of patients with Chronic Renal Failure (CRF). The Blood Flow Rate (BFR) in AVF is an important factor in the success of HD. Due to a lack of studies of low BFR during HD, this study was conducted. The objective of this study was to compare the success rate of HD in patients with a BFR = 400-500 mL min–1 (group-2), in comparison to those of higher BFR (group-1). Materials and Methods: This prospective cohort study was conducted at the ultrasound Doppler (USD) unit in King Fahad Hospital in Almadinah from July to December, 2019. In this study, 44 patients underwent AVF for HD and were assessed by USD for 2 consecutive visits at 3 months intervals. The success rate of HD was measured in patients with a BFR = 400-500 mL min–1 and in those with BFR>500 mL min–1. A comparison of the success rate in the 2 groups was done. Results: Among the 44 patients, 59% were males and 41% were females. The age of participants ranged from 20-80 years (mean: 46.75±13.67 years). The patients underwent HD 3 or 2 session’s week–1 for 3 or 4 hrs (mean 3.84±0.36 h) per session. In the first assessment, the success rate was 100% in both groups but it was 88.24% in group-1 and 70% in group-2 in the second assessment. Conclusion: The success rate of hemodialysis in patients with BFR 400-500 mL min–1 in AVF was acceptable in comparison to that in patients with BFR>500 mL min–1.

Services
Related Articles in ASCI
Search in Google Scholar
View Citation
Report Citation


  How to cite this article:

Sultan Abdulwadoud Alshoabi, Ali Twyla Almutairi, Fahad H. Alhazmi, Abdulaziz A. Qurashi, Abdulrahman Saleh Alharbi and Adel Faiz Alhejaili, 2021. Comparative Study of Hemodialysis in Arteriovenous Fistulas in Low Versus High Blood Flow Rate. Pakistan Journal of Biological Sciences, 24: 66-71.

DOI: 10.3923/pjbs.2021.66.71

URL: https://scialert.net/abstract/?doi=pjbs.2021.66.71

Copyright: © 2021. This is an open access article distributed under the terms of the creative commons attribution License, which permits unrestricted use, distribution and reproduction in any medium, provided the original author and source are credited.

INTRODUCTION

Hemodialysis (HD) or peritoneal dialysis is an essential therapy in patients of Chronic Renal Failure (CRF) concerned with the removal of toxins and excess fluid from the blood1. Vascular access for Arteriovenous Fistula (AVF) is an essential requirement to do HD2. The establishment and maintenance of AVF for HD acts as a lifeline for patients with CRF who need renal replacement therapy1,3. The upper limbs are the most commonly used for creating Arteriovenous Access (AVA) for dialysis and can be created by an artery to vein Arteriovenous Fistula (AVF) or by interposing a synthetic conduit between the artery and vein as an Arteriovenous Graft (AVG). On examination, AVA will have a thrill or vibration due to turbulent blood flow within it. Change in the thrill may indicate a problem with the graft. A weak thrill can denote poor arterial inflow or arterial stenosis. Feeling a pulse rather than a thrill denotes high-grade stenosis at the outflow of the AVA. An increase in venous pressure during dialysis can indicate significant stenosis at the venous outflow4. Mature AVF should be of high patency and free of infection because mortality among hemodialysis patients remains high due to sepsis and ischemic heart disease4,5. The AVF must be able to sustain blood flow demands for the HD machine. The BFR in the AVF should be slightly greater than the demands of the blood pump. Duplex Ultrasound (DUS) is a widely available, non-invasive and effective imaging modality used to evaluate the AVF for dialysis4,6. A Peak Systolic Velocity (PSV) of >500 cm sec–1 is reliable in predicting >50% stenosis in AVF with 89% sensitivity and 99% Positive Predictive Value (PPV)7.

Creatinine is a metabolic product of muscles that are normally excreted by the kidneys and it is a reliable indicator of renal function. Serum phosphate is another marker that increased in CRF with different kinetics from the kinetics of the creatinine8. The efficacy of HD is influenced by 1) Blood Flow Rate (BFR), 2) Dialysis Fluid Flow Rate (DFR) and 3) the mass transfer area coefficient. The flow ratio (BFR: DFR) is said to be 1:2 to obtain balanced HD efficacy9. Decrease BFR is postulated to cause inadequate HD, however, the optimal BFR is still unclear10. “The rule of 6” identifies the characteristics of mature AVF by ultrasound imaging, includes BFR>600 mL min–1, the diameter of the out-flow vein >6 mm and the depth of the out-flow vein <6 mm from the surface of the skin11. A flow rate of >400 mL min–1 in the radio-cephalic arteriovenous fistula (RC-AVF) in the first month, post-operation, predict a more successful HD than blood flow rate <400 mL min–1 (81 vs. 62%)12.

This study objective was to compares the success rate of HD in patients with a BFR = 400-500 mL min–1, in comparison to those of a BFR>500 mL min–1 (Fig. 1).

Image for - Comparative Study of Hemodialysis in Arteriovenous Fistulas in Low Versus High Blood Flow Rate
Fig. 1(a-b): Duplex ultrasound images of different two patients with arteriovenous fistula for hemodialysis shows (a) high blood flow volume (2221 mL min–1) in the right brachial artery and (b) low blood flow volume (421 mL min–1)

We suspected that AVF with a BFR 400-500 mL min–1 has a similar success rate of HD in comparison with a BFR>500 mL min–1.

MATERIALS AND METHODS

Patient selection: This prospective cohort study was conducted at King Fahad Hospital in Almadinah, from 1st July to December 31st, 2019. In this study, 44 patients of CRF underwent AVF for HD and were assessed for two consecutive visits at three-month intervals at the Doppler unit. The cohort study consisted of 34 patients in group 1 (BFR>500 mL min–1) and 10 patients in group 2 (BFR = 400-500 mL min–1). This study included patients of CRF who recently underwent AVF for HD in the last month. Exclusion criteria include the following: (1) Patients with AVF older than 1 month, (2) Patients who had non-functioning AVF in the second assessment and (3) Patients who lost in the second assessment.

Study design: First, consent was obtained and individual structural interviews were performed with the participants. Second, the DUS assessment of the AVF and measurement of the BFR was performed for each patient in the first month of doing AVF (first assessment). Finally, appointments for the next DUS were arranged after three months to follow up on the study parameters (second assessment).

Procedure: DUS assessment was done by a highly qualified radiologic technologist with 13 year’s experience working with DUS. Linear vascular transducers of L9-3 MHz and L17-5 MHz of Philips IU22 ultrasound machine were used to assess the diameter, PSV and BFR in AVF of all patients who participated in this study. Diameter, PSV and BFRs were assessed in the brachial artery proximal to the site of arteriovenous anastomosis in all participants.

BFR was measured using the following Eq.11:

BFR (mL min–1) = Mean velocity (cm sec–1) x area (r2π) x 60 sec

The success rate (Number of patients with the success of HD) was measured in the first and second assessments using the simple equation of measuring ratio13.

Study variables: During each assessment, the date of AVF, site of AVF (Radio-cephalic or brachio-cephalic) and diameter (mm), the frequency of HD (session week–1), duration of the session of HD (h session–1), PSV (cm sec–1) and BFR (mL min–1) were assessed.

Data analysis: Data analysis was performed using the "Statistical Package for Social Sciences" (SPSS) program. The data were presented as frequency and percentage for continuous variables and the mean±standard deviation (SD) for descriptive variables. An Independent-samples t-test was done to show the difference in means between the 2 groups in the first and second assessments. A chi square test was used to evaluate the significance of the results. This was assumed to be significant when the p-value reached p<0.05.

RESULTS

Among the 44 patients enrolled in this study, 26 (59%) were males and 18 (41%) were females. Their ages ranged from 20-80 years (mean: 46.75±13.67 years). The patients underwent HD 3 or 2 sessions (mean: 2.86±0.41 session) per week for 3 or 4 h (mean 3.84±0.36 h) per session. Table 1 summarizes the information of the native AVF of the patients involved in the study.

In comparison between the 2 groups in the second assessment, the Independent-samples t-test showed that BFR 2 was higher in group-1 in both the first and second assessments (p = 0.035) and the success rate was higher in group-1 (p<0.001 and = 0.018, respectively) (Table 2).

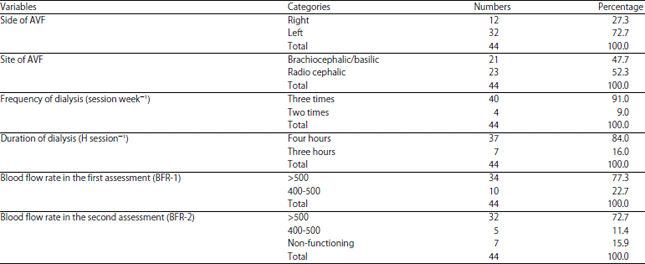

Table 1: Information on the Arteriovenous Fistula (AVF) of the enrolled patients
Variables Categories
Numbers
Percentage
Side of AVF Right
12
27.3
Left
32
72.7
Total
44
100.0
Site of AVF Brachiocephalic/basilic
21
47.7
Radio cephalic
23
52.3
Total
44
100.0
Frequency of dialysis (session week–1) Three times
40
91.0
Two times
4
9.0
Total
44
100.0
Duration of dialysis (H session–1) Four hours
37
84.0
Three hours
7
16.0
Total
44
100.0
Blood flow rate in the first assessment (BFR-1) >500
34
77.3
400-500
10
22.7
Total
44
100.0
Blood flow rate in the second assessment (BFR-2) >500
32
72.7
400-500
5
11.4
Non-functioning
7
15.9
Total
44
100.0
AVF: Arteriovenous fistula, BFR-1: Blood flow rate in the first assessment within the first month after doing AVF, BFR-2: Blood flow rate in the second assessment three months later to the first assessment


Table 2: Independent-samples t-test to compare between the 2 groups (Group-1 with BFR>500 mL min–1 and group-2 with BFR<500 and >400 mL min–1)
Variables BFR
N
Mean
Std. deviation
Std. error mean
p-value
Diameter 1 Group-1
34
5.8441 mm
1.37162
0.23523
0.055
Group-2
10
3.9100 mm
0.80340
0.25406
Diameter 2 Group-1
34
5.9118 mm
2.90368
0.49798
0.775
Group-2
10
3.1200 mm
2.23348
0.70629
PSV 1 Group-1
34
176.4706 cm sec–1
48.04558
8.23975
0.061
Group-2
10
108.5000 cm sec–1
30.37269
9.60469
PSV 2 Group-1
34
171.1765 cm sec–1
92.71215
15.90000
0.288
Group-2
10
81.5000 cm sec–1
62.93957
19.90324
BFR 1 Group-1
34
1143.2353 mL min–1
646.92616
110.94692
<0.001
Group-2
10
413.0000 mL min–1
39.45462
12.47664
BFR 2 Group-1
34
1119.7059 mL min–1
860.14264
147.51325
0.035
Group-2
10
360.0000 mL min–1
270.76025
85.62191
Success 2 Group-1
34
88.24%
0.32703
0.05609
0.018
Group-2
10
70%
0.48305
0.15275
The table revealed significant differences in the BFR between the two groups (p<0.001), (95% confidence interval 503.298−957.172) in the 1st assessment and significant differences in the 2nd assessment (p = 0.035). It showed a significant difference in the success rate of dialysis between the two groups (p = 0.018), which was 88.23% in group 1 and 70% in group 2. Group-1: Patients with BFR>500 mL min–1, Group-2: Patients with BFR<500 and >400 mL min–1, Diameter-1: Diameter of the brachial artery in the first assessment, Diameter-2: Diameter of the brachial artery in the second assessment, PSV-1: Peak systolic velocity in the measured in the first assessment, PSV-2: Peak systolic velocity measured in the second assessment, BFR-1: Blood flow rate measured in the first assessment, BFR-2: Blood flow rate measured in the second assessment, Success-2: The number of patients with the success of HD in the second assessment


Table 3: Independent-samples t-test compared the biological data in brachiocephalic/basilic and radio-cephalic AVF
Variables Site of AVF
N
Mean
Std. deviation
Std. error mean
p-value
Diameter 1 Brachiocephalic
21
6.2524 mm
1.47838
0.32261
0.153
Radio-cephalic
23
4.6304 mm
1.04900
0.21873
Diameter 2 Brachiocephalic
21
6.2714 mm
3.38499
0.73866
0.136
Radio-cephalic
23
4.3696 mm
2.28123
0.47567
PSV 1 Brachiocephalic
21
181.4286 cm sec–1
52.27674
11.40772
0.842
Radio-cephalic
23
142.3913 cm sec–1
47.09443
9.81987
PSV 2 Brachiocephalic
21
182.1429 cm sec–1
108.27709
23.62800
0.096
Radio-cephalic
23
122.1739 cm sec–1
69.89970
14.57510
BFR 1 Brachiocephalic
21
1266.6667 mL min–1
739.63054
161.40062
<0.001
Radio-cephalic
23
713.0435 mL min–1
406.75473
84.81422
BFR 2 Brachiocephalic
21
1221.4286 mL min–1
992.58897
216.60067
0.008
Radio-cephalic
23
696.5217 mL min–1
556.17696
115.97091
Success 2 Brachiocephalic
21
85.71%
0.35857
0.07825
0.583
Radio-cephalic
23
82.61%
0.38755
0.08081
The table revealed a significant difference in BFR between brachiocephalic/basilic and radio-cephalic AVF (p<0.001), (95% confidence interval 194.734−912.512) in the 1st assessment, and significant differences in the 2nd assessment (p = 0.008). However, there were no significant differences in the success rate between the two sites of AVF (p = 0.583). Diameter-1: Diameter of the brachial artery in the first assessment, Diameter-2: Diameter of the brachial artery in the second assessment, PSV-1: Peak systolic velocity measured in the first assessment, PSV-2: Peak systolic velocity measured in the second assessment, BFR-1: Blood flow rate measured in the first assessment, BFR-2: Blood flow rate measured in the second assessment, Success-2: The number of patients with the success of HD in the second assessment


Table 4: Success rate in group 1 and 2 and in brachiocephalic/basilic and radio-cephalic AVF
Variables Categories
Total no. of patients
No. of success patients
Success (%)
p-value
BFR 1 Group-1
34
34
100.00
-
Group-2
10
10
100.00
BFR 2 Group-1
34
30
88.24
0.018
Group-2
10
7
70.00
Site of AVF Brachiocephalic
21
18
85.71
0.583
Radio-cephalic
23
19
82.61
The table showed no difference in the success rate (Number of patients with the success of HD) between the two groups in the first assessment but showed a significant difference in the second assessment (p = 0.018). The table showed no significant difference in the success rate between brachiocephalic/basilic and radio-cephalic AVF (p = 0.583). BFR-1: Blood flow rate measured in the first assessment, BFR-2: Blood flow rate measured in the second assessment, BFR: Blood flow rate

In comparison between the brachiocephalic/basilic and radio-cephalic AVF in the second assessment, the Independent-samples t-test showed that BFR 2 in brachiocephalic/basilic AVF was higher than in the radio cephalic AVF (p = 0.008) but the success rate was not significantly higher (p = 0.583) (Table 3).

The success rate was 100% in both groups in the first assessment and the success rate was 88.24% in group 1 and 70% in group 2 in the second assessment. However, it was 85.71 and 82.61% in the brachiocephalic/basilic and radiocephalic AVF, respectively (Table 4).

DISCUSSION

This study investigated the success rate of HD in AVFs with a BFR = 400-500 mL min–1, in comparison to those with a BFR> 500 mL min–1. Herein, 44 patients with CRF underwent AVF for HD was assessed for two consecutive visits at 3 month intervals using DUS. The results showed that patients with BFR = 400-500 mL min–1 achieved a success rate not very far from those with BFR>500 mL min–1.

Berland et al.14 reported that the physiological suitability of AVF was defined by target BFR>500 mL min–1 and the diameter of the cannulated blood vessel >4 mm. Our results showed larger diameters in brachiocephalic AVF and smaller diameters in radio-cephalic AVF with acceptable success rates apart from the significant difference in BFR between the two sites of AVF.

In our results, AVF with BFR = 400-500 mL min–1 achieved success rates of dialysis not far from those of AVF with BFR>500 mL min–1. These BFRs are entailed the minimum flow rate recommended by a previous study which reported that BFR should be >312 mL min–1,15.

Zamboli et al.16 reported that 65% of AVF with a high BFR had symptoms of heart failure and were diagnosed with High Cardiac Output Failure (HCOF). Basile et al.17 reported that AVF with a high BFR may harm heart functions and may cause HCOF. Our study and the last two studies suggested that radio-cephalic AVF that achieved success rates close to those in brachiocephalic/basilic may be better regarding their low BFR and low HCOF rate16,17.

This study was limited by its small sample size and laboratory investigations were measured only in the first assessment. The BFR was not measured in patients who failed to undergo hemodialysis in the second assessment.

CONCLUSION

The success rate of hemodialysis in patients with BFR<500 mL min–1 (exactly 400-500 mL min–1) in arteriovenous fistula was acceptable in comparison to that in patients with BFR>500 mL min–1. Radio-cephalic AVF achieved a success rate close to brachiocephalic AVF with similar outcomes with the preference of the lower risk complications.

SIGNIFICANCE STATEMENT

This study discovers that the success rate of hemodialysis in arteriovenous fistulas with a blood flow rate from 400-500 mL sec–1 near that those with blood flow rates of more than 500 mL sec–1. This study will help the physicians of nephrology in working with patients of chronic renal failure. We are the first researchers to explore this point. Thus, we recommend more studies like this in arteriovenous fistulas with a blood flow rate of less than 400 mL sec–1.

REFERENCES

  1. Lu, W., C. Ren, X. Han, X. Yang, Y. Cao and B. Huang, 2018. The protective effect of different dialysis types on residual renal function in patients with maintenance hemodialysis. Medicine, 97: e-12325.
    CrossRef  |  Direct Link  |


  2. Takashima, T., Y. Nonaka, Y. Nakashima, E. Nonaka and Y. Ikeda et al., 2019. A one-sheath inverse method in vascular access intervention therapy for hemodialysis patients. Int. J. Surg. Case Rep., 54: 95-98.
    CrossRef  |  Direct Link  |


  3. Feldman, Z.M., L.B. Liu, S.D. Abramowitz, P.L. Faries, M.L. Marin, H.R. Schanzer and V.J. Teodorescu, 2017. Hemodialysis vascular access: Rising costs as a surrogate marker for patency and function of arteriovenous fistulas. Anal. Vas. Surg., 38: 136-143.
    CrossRef  |  Direct Link  |


  4. Teodorescu, V., S. Gustavson and H. Schanzer, 2012. Duplex ultrasound evaluation of hemodialysis access: A detailed protocol. Int. J. Nephrol., 2012: 1-7.
    CrossRef  |  Direct Link  |


  5. Chandrashekar, A., S. Ramakrishnan and D.R. Rangarajan, 2014. Survival analysis of patients on maintenance hemodialysis. Indian J. Nephrol., 24: 206-213.
    CrossRef  |  Direct Link  |


  6. Choi, J.W., J.H. Joh and H.C. Park, 2017. The usefulness of duplex ultrasound for hemodialysis access selection. Vasc. Specialist Int., 33: 22-26.
    CrossRef  |  Direct Link  |


  7. Wo, K., B.J. Morrison and R.N. Harada, 2017. Developing duplex ultrasound criteria for diagnosis of arteriovenous fistula stenosis. Anal. Vasc. Surg., 38: 99-104.
    CrossRef  |  Direct Link  |


  8. Debowska, M., A. Wojcik-Zaluska, A. Ksiazek, W. Zaluska and J. Waniewski, 2015. Phosphate, urea and creatinine clearances: Haemodialysis adequacy assessed by weekly monitoring. Nephrol. Dialysis Transplant., 30: 129-136.
    CrossRef  |  Direct Link  |


  9. Kashiwagi, T., K. Sato, S. Kawakami, M. Kiyomoto and M. Enomoto et al., 2013. Effects of reduced dialysis fluid flow in hemodialysis. J. Nippon Med. Sch., 80: 119-130.
    CrossRef  |  Direct Link  |


  10. Chang, K.Y., S.H. Kim, Y.O. Kim, D.C. Jin and H.C. Song et al., 2016. The impact of blood flow rate during hemodialysis on all-cause mortality. Korean J. Intern. Med., 31: 1131-1139.
    CrossRef  |  Direct Link  |


  11. Zamboli, P., F. Fiorini, A. D’Amelio, P. Fatuzzo and A. Granata, 2014. Color doppler ultrasound and arteriovenous fistulas for hemodialysis. J. Ultrasound, 17: 253-263.
    CrossRef  |  Direct Link  |


  12. Pillado, E., M. Behdad, R. Williams and S.E. Wilson, 2018. Flow rates at thirty days after construction of radiocephalic arteriovenous fistula predict hemodialysis function. Ann. Vasc. Surg., 49: 268-272.
    CrossRef  |  Direct Link  |


  13. Toney-Butler, T.J. and L. Wilcox, 2020. Dose calculation (ratio and proportion). StatPearls [Internet]. Treasure Island (FL): StatPearls Publishing. https://www.ncbi.nlm.nih.gov/books/NBK499884/


  14. Berland, T.L., J. Clement, J. Griffin, G.G. Westin and A. Ebner, 2019. Endovascular creation of arteriovenous fistulae for hemodialysis access with a 4 Fr device: Clinical experience from the EASE study. Anal. Vasc. Surg., 60: 182-192.
    CrossRef  |  Direct Link  |


  15. McCullough, K.P., C.E. Lok, R.J. Fluck, L.M. Spergel and V.E. Andreucci et al., 2013. Vascular access. Nephrol. Dialysis Transplant., 28: i226-i239.
    CrossRef  |  Direct Link  |


  16. Zamboli, P., S. LucĂ , S. Borrelli, C. Garofalo and M.E. Liberti et al., 2018. High-flow arteriovenous fistula and heart failure: Could the indexation of blood flow rate and echocardiography have a role in the identification of patients at higher risk? J. Nephrol., 31: 975-983.
    CrossRef  |  Direct Link  |


  17. Basile, C. and C. Lomonte, 2018. The complex relationship among arteriovenous access, heart, and circulation. Semin. Dial., 31: 15-20.
    CrossRef  |  Direct Link  |
