One species of lace bug Cochlochila bullita Stål (Heteroptera: Tingidae) was found heavily infested Orthosiphon aristatus Blume Miq., an important medicinal plant in Malaysia. A morphological re-description of C. bullita was done in order to facilitate the identification of this oligophagous insect pest. Five variables, body length and width, antenna length, tibia length and head width were measured from 15 samples from each stage. Among these variables, body length and width were used to construct the ratio for species identification; while body lengths with the other three variables were used to distinguish the nymphs from each developmental stage. The measurements of four traits except the antenna length showed significant differences between the development stages. And thus suggest the body width, tibia length and head width were suitable parameters used to distinguish the nymphal stages. However, the result on the growth factor showed only the sizes of the head followed a more constant growth rate with growth ratios (1.21-1.39) lie between the Dyars ratio. Body length and width ratio for the adult female and male was 1.51±0.00 and 1.59±0.01, respectively. These data are pertinent for identifying developmental stages and to distinguish the species of the lace bug.
PDF Abstract XML References Citation
How to cite this article
Orthosiphon aristatus is a well known medicinal plant from the family Lamiaceae. The herb is found throughout Southeast Asia and tropical Australia. In Malaysia, this traditional herb is often consumed as an herbal tea and has been used for many centuries for treating ailments, such as promote urinary to prevent or eliminate kidney stones, urinary tract infections and bladder problems (Jaganath and Ng, 2000). Recent scientific findings show that the plants methanol extracts contain compounds with antioxidant properties (Sahib et al., 2009). Moreover, its aqueous extract was noted to be effective in rats for reduce the sugar level in the blood (Sriplang et al., 2007) as well as having some diuretic functions (Adam et al., 2009). Like any other plants, O. aristatus is also prone to insect attacks. One previous study had represented the first record of C. bullita on O. aristatus in Malaysia (Sajap and Peng 2010). In this study the morphology C. bullita was further described in detail to facilitate the identification the insect pest.
MATERIALS AND METHODS
Cultivation of Orthosiphon aristatus: O. aristatus plants were bought from a local nursery and maintained in the nursery of the faculty of forestry for one month before used for further cultivation. The plants were cultivated by using stem cuttings of about 15-20 cm long. These plants were watered once a day and fertilized once a month. No pesticide was applied on these plants. The plants were examined every 2 days to ensure there was no pest infestation. If infestation did occur the insects were removed manually. Flowers were pruned to delay the process of become woody and promote new growth.
Maintenance of Cochlochila bullita colony: The colony was maintained on potted O. aristatus plants that were kept in a wooden cage (82x73x56 cm). Six pots were placed in the cage and the plants were watered daily. Ten female and male adults C. bullita were collected from the field and released into the cage equipped with the plants. The insects were then allowed to reproduce on the plants inside the cage. Old plants were replaced with new plants and the remaining insects were transferred to the new plants using a soft camel-hair brush.
Experimental Design: Measurements and morphological description were obtained from 15 nymphs from each instar, adults of both sexes. Eggs were randomly chosen and their colour pattern was described. These eggs were then kept in 70% ethanol for further examination.
Body measurements: Five variables, for nymphs and adults, were measured using a method modified from Horton et al. (2008). The specimens were mounted onto points. Measurements were made under a microscope (Leica MZ6) equipped with a camera (Nikon Digital Sight DSFi1). Body lengths and hemelytral widths were taken for adults; while body length head width and pronotal width were taken for all instars. For both nymphs and adults, tibia length was measured on the rear left leg, whereas the antennal measurement was made for the third segment (Fig. 1). The width and length of the egg sac and its opercula were measured. Measurements (Mean±SD error), given in millimetres, were obtained according to Matesco et al. (2009). Descriptions for eggs were done followed Livingstone and Yacoob (1987), while for nymphs were referred to Guilbert (2005) and Cheng (1967) while for adults were they described by Broglio et al. (2012).
Statistical analysis: Variation in head width, antenna length, tibia length, body length and pronotal width between nymphal developments stages were subjected to one-way ANOVA. Growth ratios were calculated for all the biometric parameters stated above. And linear regressions were carried out to evaluate the pattern of growth between instars.
Morphologies and Morphometrics: Morphological characteristics, body length and pronotal width and hemelytral width for both nymphs and adults for all stages, were described and summarized in Table 1. Body length (df = 4, 74, F = 680.787, p<0.0001) and width (df = 4, 74, F = 1019.890, p<0.0001) between the developmental stage were all significantly different and no overlapped were found between the instars. Besides, adult females of C. bullita with body length 2.264±0.019 and body width 1.495±0.013 were also found significantly larger than males that only with 2.051±0.018 and 1.288±0.016, respectively (t28 = 7.954; p<0.0001 and t28 = 9.860, p<0.0001). The results of measurements on all the four traits for both nymphs and adults are shown in Table 2.
|Fig. 1:||Four parameters measured on C. bullita. TotL, total length, HCW: Head capsule width, HW: Hemelytral width, PW: Pronotal width, A: Length of third antennal segment, TL: Tibial length|
|Table 1:||Morphological characteristics of C. bullita stål|
|The means followed by different letters (lowercase) in the column are significantly different at p = 0.05 (One-way ANOVA). The means followed by different letters (uppercase) in the column are significantly different at p = 0.05 (t-test; SPSS)|
|Table 2:||Morphometric traits of Cochlochila bullita nymphs and adults (n = 15) (Mean±SD error, mm)|
|PW: Pronotal width, HCW: Head capsule width, HW: Hemelytral width, TL: Tibia length, A: Antenna. The means followed by different letters in the row are significantly different at p = 0.05 (One-way ANOVA)|
|Table 3:||Linear regression of the morphometric relationship in C. bullita nymphs|
|Growth factor, mean measurement of stage (i)/mean measurement of stage (i-1)|
The results show that all biometric parameters except the antennal length showed a significant different between the developmental stages Table 2. Tibia length for all instars showed significant difference between the stages as body length and width (df = 4, 74, F = 671.663, p<0.0001). The antennal length of 1st and 2nd instars of C. bullita nymph was not significantly different.
Growth patterns of tibia and antenna lengths and body width fitted were well described in exponential curves (Fig. 2a-c), which showed that these traits were grew in a faster rate than from one stage to another; while the growth pattern for head width was almost linear with a more constant growth rate between the instars (Fig. 2d). All the biometric parameters were highly and positively correlated to the body length (x) (Table 3).
Length to width ratio: Length to width ratio on different body part has been widely used as one of the indicator for species classification. In our experiment, body length and width ratios for all five instar stages and adults were showed in Table 4. Ratio were ranged between 2.00±0.01 to 2.64±0.03 for the nymphal stage and 1.51±0.00 and 1.59±0.01 for the adult female and male, respectively.

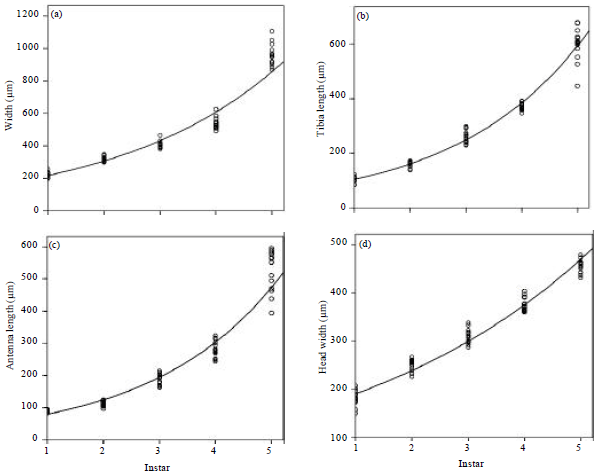

|Fig. 2(a-d):||Growth patterns of four biometric parameters of C. bullita in relation to the development stage. (a) Width, (b) Tibia, (c) Antenna and (d) Head|
|Table 4:||Length to width ratio of Cochlochila bullita nymphs and adults (n = 15) (Mean±SD error, mm)|
|L/w: Length to width|
It is believed for every species of insect, this ratio is essentially the same and thus the result showed here might be useful for this tiny bug identification in the future.
Regression analyses were used in many literatures to distinguish the stages of instars. These results also describe the relationship between the stages or length of the nymphs and other biometric parameters (Linares et al., 2010). The results of this study corroborated with previous results done on other Hemiptera. The biometric parameters, the body width, tibia length, antenna length and also the head width of C. bullita were highly correlated with the developmental stages and the increase of body length of the nymphs.
The sizes of the head width, tibia length and body width of the nymphs are equally good criteria for distinguishing developmental stages of the lace bug. All these parameters are significantly different between the stages of nymphal development. However, among the growth factor, only the head width growth ratio (1.21-1.39) lied between the Dyars ratio of 1.2-1.4. The results on the growth ratios are close to the values reported in Hemiptera, Gerridae (Klingenberg and Zimmermann, 1992) and concur with the hypothesis proposed by Cole (1980) who believed that the other parameters are higher is due to allometry, where the relative growths were affected by the energy used and in this case it was believed lace bug allocated more energy to the locomotors structures. Thus, it is evident that the head width was the most reliable criterion for distinguishing different developmental stages of C. bullita nymphs.
Body length and width ratio measured for each instars and adults. This figure were believed to be a reference to distinguish this species of lace bug from e morphologically alike relative species such as C. conchata, Moanthia humuli and Dictyla convergens. The ratio was taken because it is believed for every species of insect, that ratio is essentially the same.
In conclusion, the general morphological descriptions, morphometrics to distinguish the instar stages and the oviposition patterns of C. bullita are fundamental for the recognition, identification and monitoring of this species and last but not least it is important for further studies and for control of this insect pest. As the morphometrics and scaling relationships are highly integrated with genetical, development, physiology, functional and environmental, further study on the reasons that bring up these scaling patterns will be an interesting task.
- Adam, Y., M.N. Somchit, M.R. Sulaiman, A.A. Nasaruddin, A. Zuraini, A.A. Bustamam and Z.A. Zakaria, 2009. Diuretic properties of Orthosiphon stamineus Benth. J. Ethnopharmacol., 124: 154-158.
- Broglio, S.M., N.D.S. Dias-Pini, L.A. Costa and E.E. Lemos, 2012. First report and morphological redescription of Teleonemia morio (Stal)(Hemiptera, Tingidae) in Annona squamosa L. (Annonaceae) in Brazil. Rev. Brasil. Entomol., 56: 122-124.
- Cole, B.J., 1980. Growth ratios in holometabolous and hemimetabolous insects. Ann. Entomol. Soc. Am., 73: 489-491.
- Horton, D.R., T.M. Lewis, K. Thomsen-Archer and T.R. Unruh, 2008. Morphology, genetics and male mating success compared between Anthocoris musculus and A. antevolens (Hemiptera: Heteroptera: Anthocoridae). Proc. Entomol. Soc. Washington, 110: 960-977.
- Jaganath, I.B. and L.T. Ng, 2000. Herbs: The Green Pharmacy of Malaysia. Vinpress Sdn Bhd, Kuala Lumpur, ISBN-10: 967-81-0281-1 Pages: 76.
- Linares, M.A., L.E. Neder and C. Dietrich, 2010. Description of immature stages and life cycle of the treehopper, Guayaquila projecta. J. Insect Sci., Vol. 10.
- Livingstone, D. and M.H. Yacoob, 1987. Biosystematics of Tingidae on the basis of the biology and micromorphology of their eggs. Proc.: Anim. Sci., 96: 587-611.
- Matesco, V.C., C.F. Schwertner and J. Grazia, 2009. Morphology of the immatures and biology of Chinavia longicorialis (Breddin)(Hemiptera: Pentatomidae). Neotrop. Entomol., 38: 74-82.
- Sahib, H.B., Z. Ismail, N.H. Othman and A.M.S. Abdul-Majid, 2009. Orthosiphon stamineus benth. methanolic extract enhances the anti-proliferative effects of tamoxifen on human hormone dependent breast cancer. Int. J. Pharmacol., 5: 273-276.
- Sriplang, K., S. Adisakwattana, A. Rungsipipat and S. Yibchok-Anun, 2007. Effects of Orthosiphon stamineus aqueous extract on plasma glucose concentration and lipid profile in normal and streptozotocin-induced diabetic rats. J. Ethnopharmacol., 109: 510-514.
