When milk is heated, the whey proteins denature. The minor whey proteins such as lactoferrin, bovine serum albumin and the immunoglobulins begin to denature at temperatures as low as 65°C and there for significant denaturation is observed under pasteurization conditions (about 72°C 15 sec). The major whey proteins, β-Lg and α-La are more heat stable and significant denaturation occurs only at temperatures above about 70-75°C (Fox, 1995).
The kinetic and thermodynamic parameters are consistent with the denaturation or unfolding reactions being rate determining in thelow temperature ranges, whereas these parameters are consistent with the aggregation reaction being rate determining in the higher temperature ranges (Anema and McKenna, 1996; Oldfield et al., 1998). Also, it is known that whey protein denaturation is observed at sufficiently high pressures and like heating, denaturation levels increase with increasing pressure or duration of treatment once a threshold pressure is exceeded. Unlike the heat treatment of milk, where the minor whey proteins (lactoferrin, bovine serum albumin and the Igs) are most labile (Huppertz et al., 2004; Hinrichs and Rademacher, 2005; Anema et al., 2005).
Pasteurization of market milk is an important attainment for hygienic safety
of milk. According to the FAO/WHO definition (Fox, 1989), it is a process applied
to a product with the aim of avoiding public health hazards associated with
milk by heat treatment, which is consistent with minimal chemical, physical
and organoleptic changes in the product. The minimal temperature-time relations
that fulfill these requirements are at 63°C 30 min or 72°C 15 sec. A
more severe heat treatment is incompatible with the FAW/WHO definition and gives
an unnecessary over processing. Therefore the development of suitable, sensitive
methods is important for the purpose of control. Knowledge of the genuine content
of Igs, their fluctuations as well as their denaturation kinetics is necessary
for a quantitative evaluation.
There were five classes of Igs; IgG (IgG1 and IgG2), IgM, IgA, IgD and IgE with similar basic Y-shaped monomer structure consisting of four subunits, two light chains [Molecule Weight (MW) = 22-27 Kilo Dalton (KD)] and two heavy chains (MW = 54-76 KD), joined by disulfide bridges (Larson, 1992). The ones that are present in significant concentration in bovine colostrum are IgG1, IgG2, IgM and IgA (Walstra and Jenness, 1984). IgG1 and IgG2 are monomers with about the same molecular weight (146-163 KD). IgA, with a molecular weight of 385-430 KD, consists of two monomers joined with the so-called J-chain and the secretory component, whereas IgM is pentamer with a molecular weight of 1030 KD.
Although studies investigating the thermal destruction of human milk Igs have been reported (Morgan et al., 1986), there is a little information available for bovine and buffalo milk Igs and no systematic study on the kinetics of thermal destruction of buffalo Igs has been reported.
Therefore, the objectives of this study was to determine the heat denaturation of the buffalo milk Igs by measuring the loss of Igs using SRID technique. Also, to calculate kinetic parameters for the denaturation process which enabled prediction of the behavior of Igs in the range of temperatures for common pasteurization treatments as well as to select the best treatments in order to preserve structures.
MATERIALS AND METHODS
Raw buffalo milk were collected from the dairy herd of Faculty of Agriculture,
Cairo University, Giza, Egypt, during the period from October 2005 until July
2006. Immediately after complete milking of individual animal, the milk was
thoroughly mixed and about 50 mL was taken in a clean stopper sample bottle
in an ice box and transferred to the dairy laboratory, National Research Centre.
Milk samples were analysed for Total Solids (TS) by the drying oven method at
105°C for 3 h as described by AOAC (1990). The Total Protein (TP) of milk
was determined by kejldahl method (Ling, 1963). The average of three replicates
was taken for each sample.
Milk samples were defatted by using the laboratory centrifuge at 4000 rpm for
30 min. Acid whey was prepared by isoelectric coagulation of casein at pH 4.6
using 1N HCl solution and centrifuging at 10000 rpm for 15 min.
About 15 mL buffalo raw milk in test tubes were covered with Para film,
then heated in water bath at 63-88°C for 5-15 min. At specified time, individual
test tubes were removed from the water bath and immediately cooled in an ice
water bath. Each thermal treatment was conducted in triplicate.
Precipitation of Immunoglobulins with Ammonium Sulfate
Saturated Ammonium Sulfate (SAS) was prepared by dissolving excess in distilled
water until some crystals of ammonium sulfate remained undissolved. Working
solution of 80% ammonium sulfate solutions was freshly prepared by diluting
SAS with necessary amount of water. Equal volumes of the WPC and 40% SAS solution
were mixed; the formed precipitate was removed by centrifuging, dissolved in
the minimum quantity of distilled water and dialysed until the complete removal
of the ammonium salt (Nawar, 1999).
Determination of Immunoglobulins Concentration
This determination was obtained using the Single Radial Immunodiffusion
(SRID) as described by Mancini et al. (1965). Ready made plates for determination
of immunoglobulin fractions (IgG, IgM and IgA) in milk samples was supplied
from Bethyl Argentina.
The kinetic calculations of Igs were calculated as described by Anap et
al. (1987) and Mansour, (1999).
Order of Reaction
To determine the order of the reaction responsible for the losses of Igs
a graphical method was used. The concentrations of Igs during holding times
were plotted according to the following equations:
||Reaction of zero order:
||- kt + C0
||Reaction of the 1st order:
||kt / 2.3 + log C0
||Reaction of 2nd order:
||kt + 1 / C0
||Reaction of 3rd order:
||2 kt +1 / C02
Where: C = Concentration at initial time (C0)/Concentration at defined time (Ct)
When the form of these equations is compared with that of a straight line (y = ax + b) becomes clear that a plot of one of these functions versus time must be a straight line if the law of the corresponding reaction kinetics is fulfilled. The temperature/time dependent results of the measurements were therefore plotted in 4 figures with C, log C, 1/C and 1/C2 as ordinates and the same time intervals in each case as the abscissa.
Velocity Constants (k)
It is defined as the rate of denaturation influenced by temperature/time. It
was calculated from the slopes of the obtained straight lines.
Decimal Reduction Time (Dυ)
Time required to reduce the Igs concentration to 1/10 of its original value
at constant temperature, was calculated for the Igs denaturation during the
heat treatment between 63-88°C for 5-15 min, using the semi-logarithmic
plots of Igs concentration versus holding time by the relationship: D-value
Activation Energy (Ea)
The temperature dependence of reaction velocity constant has been depicted in
Arrhenius plot using the k-values and temperatures according to the Arrhenius
relationship with some modifications. The resulted equation can be formulated
log k2-log k1 = - Ea
/ 2.3 R (1/T2 - 1/T1)
||Velocity constant, (s-1)
||Universal gas constant (8.314 KJ/mol)
|| Absolute temperature.
Thermal Destruction Coefficient (Z)
Temperature change required to alter rate of destruction, was calculated by
negative reciprocal slope of the semi-logarithmic plots of D-values versus heating
temperature using the relationship:
Z-value = 2.3 R t T1 T2
Temperature Coefficient (Q10-value)
Denote how much faster a reaction takes place when the temperature is raised
by 10°C, can be expressed as the factor by which D-value decreases for 10°C
rise in temperature. In the same trend, Q10-value can also be expressed
by means of the Z-value according to the following relationship: Q10
RESULTS AND DISCUSSION
The gross Composition of Heated Buffalo Milk
Data presented in Table 1 illustrate the Total Solids
(TS) and the Total Protein (TP) of heat treatments buffalo milk samples at 63-88°C
for 5-15 min.
The TS content of all treatments was lower than that of control sample. On the other hand, the TS content gradually decreased with increasing the temperature and the holding time. These results may be attributed to the heat effect in denaturating and precipitating some of milk proteins. These results were in accordance with that obtained by El-Loly (1996), who reported that the TS contents were 12.02 and 10.21% at 63°C/30 min and 100°C/10 min, respectively.
Concerning to the Total Protein (TP), the trend of heat-treated milk samples was similar to that of TS. Similar results were reported by EI-Loly (1996), who found that the TP content was 2.24 and 2.19% at 63°C/30 min and 100°C /10 min, respectively.
Also, the obtained data were proved by Singh and Waungana (2001), Macej et
al. (2002, 2004) they reported that the heat treatment of milk during commercial
processing operations results in a number of physicochemicalchanges in the milk
constituents. Significant changes occurring upon heating milk above 60°C
include the denaturation of whey proteins, the interactions between the denatured
whey proteins and the casein micelles.

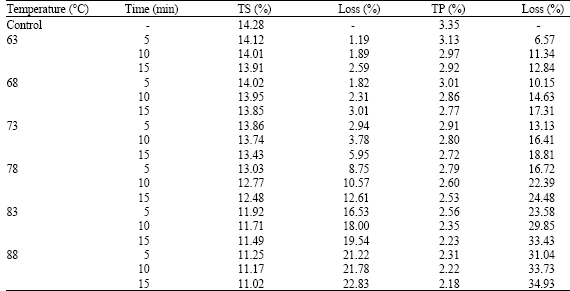

|| Mean values of total solids (TS) and total protein (TP) of
buffalo milk as affected by different heat treatments
Denaturation of Buffalo Milk Immunoglobulins
The Igs stability to heat treatment has been studied using different experimental
techniques, such as chromatographic methods (Resmini et al., 1989; Lucisano
et al., 1994; Law, 1995), differential scanning calorimetry (Lindstrom
et al., 1994) and immunochemical methods(Fukumoto et al., 1994;
Li-Chan et al., 1995). These techniques allowed calculation of the kinetic
and thermodynamic parameters for thermaldenaturation of these proteins. The
immunochemical methods that are usually employed to study the effect of heat
treatment on milk Igshave been based on the reaction between the Igs in milk
and the antibodies against them (Fukumoto et al., 1994; Li-Chan et
We studied the effects of different heat treatments on the structure changes that occur in buffalo milk Igs by measuring the loss of Igs using SRID technique.
Although immunoglobulins make up only 1-2% of the total milk protein, they are very important in the processing of milk into dairy products. Their sensitivity to heat means that can be readily modified by thermal treatments that are part of normal dairy processes. Therefore, it is very interesting to study the effect of thermal treatments on their contents of immunoglobulins.
No precipitation was observed during or after any of heat treatments under study. It may be suggested that the reduction in Igs concentration determined by SRID was due to denaturation or unfolding of the Igs molecules as a result of heat treatments, leading to loss of antigenicity. Although aggregation reactions subsequent to denaturation may have occurred, detection of precipitation would be difficult given the low levels of Igs.
Table 2, showed the degree of denaturation of Igs that increased
with temperature of treatment. It could be noticed that the heating caused some
losses in Igs. A comparison of immunoglobulin fractions IgG, IgM and IgA content
in raw milk and corresponding heated milk indicated that IgG has higher values
than IgM and IgA in the control samples. The loss of these fractions after any
heat treatment was higher in IgA than IgM and IgG. These results may be attributed
to that IgA is the most heat sensitive Igs. Also, IgA non of it was retained
in the heat-treated samples, which may be attributed to that IgA the less heat
stable Igs and to its low concentration in raw milk. It could be concluded that
the Igs were the least heat stable of the whey proteins in milk. This finding
was similar to the reported results by Resmini et al. (1989) they proved
that the Igs were the most heat sensitive components of the whey protein fractions
above at 70°C. Also, whey proteins are heat-labile proteins (Fox and McSweeney,
1998). Also, De Wit et al. (1983) and De Wit and Klarenbeek (1984) reported
the same previous observations, which may be attributed to the high content
of disulfide bridges. They also suggested that unfolding of Igs was irreversible
and IgA was the most sensitive of the Igs. On the other hand, Lindstrom et
al. (1994) and Ustunol and Sypien (1997) had demonstrated the denaturation
of bovine milk Igs at 80°C and unfolding of IgG and IgM at near that temperature.

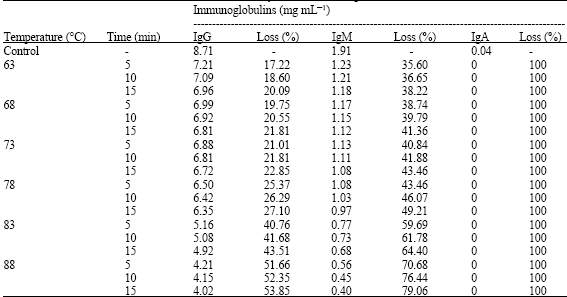

|| Effect of different heat treatments on the stability of buffalo
Whereas, De Wit et al. (1983) reported it was at 79°C. While, the
IgG fraction was reported to denaturate at 72°C (De Wit and Klarenbeek,
According to Snezana et al. (2007) the investigation of the heat treatments induces the interactions between the major milk proteins and also the formation of co-aggregates. Co-aggregates formed during heat treatments are mostly the result of the disulfide interaction among κ-casein, β-lactoglobulin and α-lactalbumin. Besides, other types of interactions alsoare involved in their formation.
On the other hand, data revealed that commercial pasteurization process results incomplete denaturation of IgG and IgM. But, it had a destructive effect on IgA content of milk samples. The obtained data were in accordance with that reported by Li-Chan et al. (1995) and EI-Loly (1996). These results were in accordance with reported by Ustunol and Sypien (1997), who mentioned that the treatment at 80°C for 25 min completely destructive IgA. It is clear from these results that the IgG was the major Igs in milk. Butler (1969), EI-Loly (1996), Fernandez et al. (2006) and McMartin et al. (2006), they reported the same observation of suffered greater losses of IgG.
The results were contrary to those of Kanno et al. (1976), who mentioned that the heating at 70°C for 10 min completely destroyed the agglutinating activity of IgM. We confirmed results of Li-Chan et al. (1995) and El-Loly (1996) that commercial processing such as High Temperature Short Time Heating (HTST) pasteurization may not destroy Igs activity of milk. The slight differences were probably due to differences in experimental procedures and heating rates.
Thermal and processing stability of bovine milk Igs have been of interest to preserve the immunoprophylactic or potential of Igs in cow milk. The Igs particularly IgG have been suggested for immunological supplementation of infant formula and other foods (Facon et al., 1993). Li-Chan et al., (1995), they reported that the thermal stability of bovine serum Igs occurred in model systems and in commercially processed milk products. These findings indicatethat the quantity of Igs in dairy products is dependenton thermal treatment.
Data revealed that the IgG and IgM were incompletely denaturation upon heating to 88°C for 15 min, whereas IgA was completely denaturation at any these temperatures, which means that the IgA was the most heat sensitive of Igs and these heat treatments had a destructive effect on the IgA content of milk samples. These results are in accordance with Ustimol and Sypien (1997).
The concentration of denatured Igs at each measurement time was subjected
to kinetic analysis. From the graphics in Fig. 1 and 2
it is observed that order of reaction for the thermal denaturation of both IgG
and IgM obey the second order reaction during the temperature range of 63-88°C.
|| Plot according to 2nd order reaction of IgG loss
|| Plot according to 2nd order reaction of IgM loss

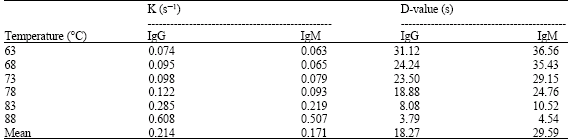

||The velocity constants (k) and decimal reduction time (Dυ)
of immunoglobulins loss reaction at the different treatments of buffalo
This finding is in full agreement with that ascribed by Resmini et al.
(1989) for IgG. But Dominguez et al. (1997) found that the denaturation
of IgG was best described assuming an apparent reaction order of 1.5.
The velocity constants (k) can be calculated from the slopes of the obtained straight lines. The calculated values of k in s-1 of this reaction throughout heat treatments of milk samples at 63-88°C are presented in Table 3. It can be observed that the (k) have IgG and IgM denaturation gradually increased with increasing of heat treatments. Mainer et al. (1997) observed the same finding.
The higher values of the rate velocity (k) were observed for IgG than IgM suggest that the denaturation occurs more quickly for IgM than IgG molecules. Generally, the k values for the denaturation in IgG and IgM ranged from 0.074 to 0.608 (with mean value of 0.214) and from 0.063 to 0.507 (with mean value of 0.171), respectively.
The decimal reduction times (D-values) of all studied milk samples were calculated for IgG and IgM during heat treatment between 63 and 88°C, using the plot of Igs concentration holding time.
The slope of each temperature line (K/2.303) was calculated. The reciprocal of these values could be expressed as D-value of each sample. From these data, it is found that the D-values for the denaturation of IgG and IgM were decreased with temperature increasing in all samples. Also, it is clear that the D-values were higher in IgM than those in IgG Table 3. Generally, the D-values of IgG and IgM ranged from 3.79 to 31.12 sec (with mean value of 18.27 sec) and from 4.54 to 36.56 sec (with mean value of 29.59 sec), respectively.
Table 4 gives the mean values of the calculated activation
energy (Ea) in the temperature range between 63 and 88°C. Data
declared that the highest activation energy required to complete the loss reaction
of Igs was in IgG throughout heat treatments of milk samples at 63-88°C.
These values were 87.455 and 86.595 KJ mol-1. K for IgG and IgM,
||The energy of activation (Ea) of immunoglobulins
loss reaction at the different treatments of buffalo milk

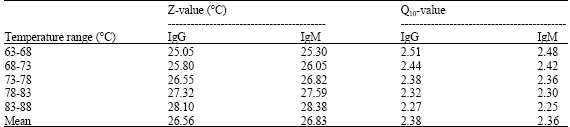

||Thermal destruction coefficient (Z) and temperature coefficient
(Q10) values of immunoglobulins loss reaction at the different
treatments of buffalo milk
These results were similar with those reported by Chen et al. (2000).
It may be indicate that the IgG and IgM were more stable than IgA because a
larger amount of energy is needed in order to start denaturation.
IgM showed larger of Z-values than IgA, this finding was opposite with those reported by Chen et al. (2000). These results suggested slightly greater stability of IgG than IgM. On the other hand, the values gradually increased with increasing heat treatments. The higher Z and lower Ea values of IgM suggest that the less temperature dependence of the rate of IgG destruction than the rate of IgM (Table 5).
The calculated data of Q10 values of denaturated Igs in buffalo milk during the heat treatments are tabulated in Table 5. The results were varied from 2.27 to 2.51 (with mean value 2.38) for IgG and from 2.25 to 2.48 (with mean value 2.36) for IgM. On the other hand, the values decreased with increasing the range of heat treatments.
This could be correlated with the variations between the loss rates in different Igs during the temperature range (63-88°C).
From the previous data, it concluded that the k, Ea and Q10 values were higher for IgG than those for IgM at any heating temperature, while the D and Z-values were higher for IgM than those for IgM at the one.
Generally, data revealed that should be taken into account in the design of heat treatments of milk in order to preserve the biological functions of Igs when added to formula milk or other hyperimmune products. The degree of Igs denaturation increase with increasing treatment temperature. The Igs were the most heat sensitive of whey protein components, which may be attributed to the high content of disulfide bridges or that unfolding of Igs was irreversible. While, IgA was the most sensitive of the Igs.
Kinetic reactions for Igs were highly affected by heating. The reaction order obtained for the thermal denaturation of IgG and IgM were second order. The k and Z-values were increased, while D and Q10-values were decreased with increasing heat treatments of buffalo milk Igs. Values of k, Ea and Q10 were higher in the case of IgG than those in IgM at any temperatures, but for the, D and Z-values were in opposite trend. These parameters are considered as important indicator for quantitative describing the mechanism of denaturation occurs during heat treatments.
