Potato starch obtained from waste waters of chips manufacturing was used as
a fermentation substrate for yeast protein enrichment. Among 18 yeast strains,
6 strains were screened according to their biomass yield and protein content
after fermentation for 16 h at 30°C in an aerated glucose-based liquid media
(4.5 Ls). Using concentrated media (25% solids) made from potato starch pre-hydrolyzed
with malt flour and batch-fermented for 20 h at 26°C under aerobic conditions,
Candida utilis ATCC 9256 was the most efficient protein-forming strain.
Scaled-up at the 100 Ls level, the aerobic batch process was improved under
fed-batch conditions with molasses supplementation (Gelinas
and Barrette, 2007).
Potato annual world production is around 300 milliontons and areas planted
cover more than 18 million ha. Major producing countries (and the world's share
of production) are China (20), Russia (12), India (8) and United States (8%)
(Miranda and Aguilera, 2006).
In Egypt potato is one of the most important crops grown for local consumption,
export and processing. The area cultivated with potatoes about 212,000 acres
producing about 2.2 million tons, with an average of 10.5 tones per acre (Hegazy,
Large amounts of agro industrial residues are generated from diverse economic
activities that represent one of the energy rich resources available on the
planet and when not properly discharged or used, add to environmental pollution
(Francis et al., 2003) Biotechnology industries
demand potato (Solanum tuberosum) the best raw materials to prepare growth
media for the fermentative processes (Liu and Yan, 2008).
The selection of a specific raw material depends mainly on its availability,
composition and price.
Liquid potato waste containing natural materials (like starch) are used for production of lactic acid. The starchy materials consisted of glucose are easily hydrolyzed into fermentable sugars.
Lactic acid is a valuable product with many practical applications: as a preservative,
pH regulator and taste-enhancer in food industry, for implants and suture in
the medical practice, as a reagent for polylactic and polyacrylic acids synthesis
for biodegradable polymers (Wee et al., 2006).
The reduction in emulsion pH by the addition of LA and/or GDL significantly
(p<0.05) influenced the processing and quality parameters of pork sausages
(Thomas et al., 2008).
Biotechnological production is primarily carried out by bacterial fermentation
of simple sugars, and bacterial species Lactobacillus and Lactococcus
have received a worldwide interest in industrial processes because of their
high growth rates and product yields (Hofvendahl et al.,
1999; Gonzalez-Vara et al., 2001). Moreover,
the improvement of the biomass yield is interested because biomass from Lactic
Acid Bacteria (LAB) fermentation is widely used in food and pharmaceutical industry
(Lee et al., 2007).
Further, agricultural resources such as barley, wheat, and corn were hydrolyzed
by commercial amylolytic enzymes and fermented into lactic acid by Enterococcus
faecalis RKY1. Although no additional nutrients were supplemented to those
resources, lactic acid productivities were obtained at >0.8 g L-1
h from barley and wheat (Oh et al., 2005). Simultaneous
saccharification with glucoamylase effectively improved lactic acid production
with L. casei alone, with the highest lactic acid concentration of 120
g L-1 (yield 667 g kg-1 barley flour fermented) on barley
flour treated with barley malt without any additional nutrients (Linko
and Javanainen, 1996). Different nutritional and process parameters influencing
lactic acid production by Lactobacillus casei were studied by Senthuran
et al. (1999).
In this study, we have characterized the chemical composition of liquid potato waste to evaluate its suitability as raw materials for lactic acid production. To achieve more rapid and cost-effective lactic acid production from liquid potato wastes, we have attempted direct fermentation using the most lactic acid producer, Lactobacillus casei EMCC11093 and examined the influence of nutritional and environmental conditions in LPW-MRS medium on lactic acid produced by this strain and discussed its yield and feasibility.
MATERIALS AND METHODS
Chemical composition of liquid potato wastes: The liquid potato wastes
samples were obtained from the Chips's Company for food and analyzed according
to standard methods industries in 2008, Assiut, Egypt, (AOAC,
1990). Elemental analysis was carried out using atomic absorption spectrophotometer
(model GBC 906 AA) in the laboratories of Agricultural College, Assuit University,
Microorganisms, culture conditions and inoculum preparation: Six homofermentative l (+) lactic acid bacteria, Lactobacillus delbrueckii subsp. bulgaricus EMCC 11102, Lactobacillus casei EMCC 11093, Lactobacillus acidophilus ATCC 4356, Lactobacillus lactis subsp. lactis EMCC 11552, Streptococcus thermophilus EMCC 11044 and Streptococcus thermophilus SMU 3855, were obtained from Cairo Microbiological Resource Center (MIRCEN), Faculty of Agriculture, Ain Shams University, Cairo, Egypt.
The cultures were maintained in MRS agar stabs at 4°C and subcultured fortnightly. The MRS medium composition was as follows g L-1: Bacteriological peptone, 10; yeast extract, 5; beef extract, 10; glucose, 20; dipotassium phosphate, 2; sodium acetate, 5; diammonium citrate, 2; MgSO4.7H2O, 0.02; MnSO4A4H2O, 0.05 g. Tween (1 mL) was added. The medium was purchased from Biolife Co., Milano, Italy.
The inoculum for the experiments was prepared from fresh MRS slants. A loopful of culture was inoculated into 25 mL MRS medium in 250 mL Erlenmeyer flask and incubated at 37°C for overnight. The 18-h old bacterial culture having 109 CFU mL-1 was used as the inoculum.
Fermentation conditions: Fermentation was performed in 250 mL Erlenmeyer flasks containing 80 of LPW with 20 mL of MRS. The medium was sterilized by autoclaving at 121°C for 20 min. Flasks were inoculated with 1 mL of actively growing culture Lactobacillus casei EMCC11093 and incubated at 37°C under static conditions for seven days as experimental design. At the end of fermentation, the lactic acid, protein content and final pH were determined. Each experiment was performed in triplicate.
Extraction and estimation of lactic acid: After fermentation, the complete
lactic acid produced in each flask was extracted and clarified by squeezing
through dampened cheese cloth (Ramesh and Lonsane, 1990),
followed by cold centrifugation at 5000 rpm for 20 min and the supernatant was
used for lactic acid estimation according to the method of Taylor
(1996). The pH of the extract was measured by a pH-meter equipped with a
glass electrode, using a solid-liquid ratio of 10% (w/v) with distilled water.
Protein are quantified using the Folin-Ciocalteu method (Lowry
et al., 1951) using Bovine Serum Albumin (sigma) as a standard.
RESULTS AND DISCUSSION
Chemical composition of liquid potato wastes: The composition of liquid
potato wastes is presented in Table 1. The average contents
of dry matter, total carbon and organic matter were 8.8 mg, 0.40 and 0.68%,
respectively. While the ash content, TSS and protein were 227 mg, 1 and 0.14%,
respectively. It demonstrated that LPW from potato process industry containing
a less concentration of useful materials. These materials are much lower than
in, food wastes (Ohkouchi and Inoue, 2006) and waste
activated sludge (Maeda et al., 2009).
As shown in Table 2, LPW containing the highest mineral values
(100 and 91.2 ppm mg L-1) were in Ca and Mg, respectively, the middle
values (35, 40 and 58 ppm mg L-1) were in K, Na and S, respectively
and the lowest values (0.180, 0.223, and 0.460 ppm mg L-1) were in
Mn, Cu and Zn, respectively.

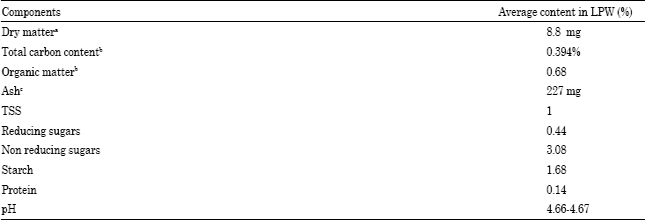

|| Percentage composition of liquid potato wastes
|aCalculated in 1 mL extract; b Calculated
in 25 mL-1 extract; c Calculated in 1 g dry matter
|| Analysis of minerals content in liquid potato wastes

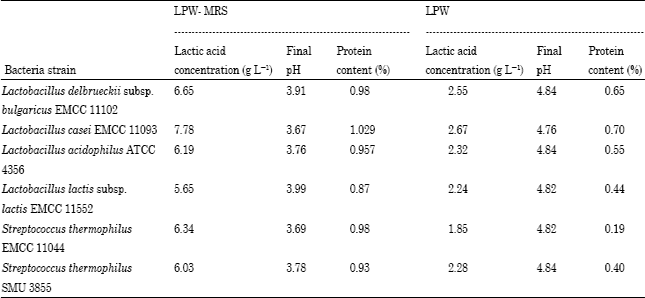

||Screening of six lactic acid bacterial strains on LPW and
Ohkouchi and Inoue (2006) studied on the composition
of minerals in culture medium with food wastes compared with MRS medium universally
used for cultivation of Lactobacillus sp. and pointed out that, the values
of Ca content in culture medium with food wastes exhibited large deviations,
while, K and Mn were less than MRS medium and Mn was especially deficient in
culture medium with food wastes (contained 14.6±0.8 μM versus 208
μM in MRS medium), hence the effect of Mn concentration on lactic acid
production was examined.
Screening of different lactic acid bacteria strains for their lactic acid production: Preliminary experiments were made on screening of cost effective MRS concentration with LPW for lactic acid production using six lactic acid bacteria (data not shown). The last experiment resulted in the lowest MRSs concentration should be added with LPW, to enhance lactic acid production was in a ratio of 20: 80% (v/v) respectively (Table 3).
To compare the lactic acid production aptitude of six available strains, cultivation was conducted in flasks, in an LPW medium, compared with MRS- LPW (as ratio above). The results showed in all cases a higher use of the LPW-MRS medium, higher production of lactic acid and protein content, and lower level of pH values, and vice versa in cultures on LPW only. With the exception of the strain Lactobacillus casei EMCC 11093, where, this culture had the highest production of lactic and protein content, 7.78 g L-1 and 1.03%, respectively, as well as the lowest final pH 3.67 (Table 3). Consequently, was selected for lactic acid production using of this study using LPW-MRS medium.
Lactobacillus casei was the organism of choice as it produces predominantly
the isomer of lactic acid (Senthuran et al.,1999).
The amounts of lactic acid produced in the fermentation medium containing only
date juice as carbon and nitrogen sources were smaller than those produced in
the MRS broth medium (Nancib et al., 2001).
|| Influence of cultivation pH on lactic production by L.
Petrov et al. (2008) studied the maximum lactic
acid productivity, components of the media and the cultivation conditions by
Lactococcus lactis subsp. lactis B84 utilizing starch as a sole
carbon source, and found that, MRS-starch medium (with absence of yeast and
meat extracts), at 33°C, agitation 200 rpm and pH 6.0 for 6 days, a complete
starch hydrolysis occurred and 5.5 g L-1 lactic acid were produced
from 18 g L-1 starch. Pintado et al. (1999),
noted that on Mussel Processing Wastes (MPW) lactic acid is lower than with
MRS-starch. Ogunbanwo and Okanlawon, 2009 studied the
influence of nutrients utilization and cultivation conditions on the production
of lactic acid by homolactic fermenters, and indicated that, all the Lactobacillus
species isolated produced little quantity of lactic acid when grown at 30°C
in normal De Man Rogosa Sharpe (MRS) broth. However, a temperature of 40°C
at initial pH of 5.5 in constituted MRS medium with 6% (w/v) carbon concentration
of D-glucose and 4% (w/v) nitrogen concentration of yeast extract fermented
for 48 h supported lactic acid production optimally with Lactobacillus acidophilus
producing 18.4 ± 0.01 g L-1 of lactic acid.
Therefore, on using LPW, MRS broth medium must be added into the fermentation to support both microbial growth to study the optimum environmental conditions for lactic acid formation.
pH for cultivation: The different initial pH values in LPW-MRS medium of L. casei culture was controlled at pH 3.0, 3. 5, 4.0, 4.5, 5.0, 6.0 and 7.0 and lactic acid production were monitored. The initial pH values at culture were adjusted with 5 N hydrochloric acid-5 N sodium hydroxide.
As shown in Fig. 1, LPW-MRS medium with initial pH 3.5, higher production was observed, and the final amount of lactic acid was decreased obliviously compared with initial pH 3.5. At this particular pH, L. casei had the highest production of lactic and protein content, 6.34 g L-1 and 1.0%, respectively, as well as the lowest final pH 3.34.
These results were differ from those obtained with, Lactobacillus rhamnosus
(Maizirwan et al., 2006; Mel
et al., 2007), Lactobacillus casei (Senthuran
et al., 1999), L. lactis subsp. lactis B84 (Petrov
et al., 2008) and Lactobacillus manihotivorans LMG18011 (Ohkouchi
and Inoue, 2006) which had an optimum pH for growth at 6.0 and from L.
amylophilus, which could produce lactic acid from starch over a pH of 5.0-6.8
(Yumoto and Ikeda, 1995).
|| Influence of fermentation temperature on lactic acid production
Fermentation temperature: We examined the effect of incubation temperature on lactic acid production to reveal which temperature is the best fermentation condition.
The impact of the cultivation temperature on the LPW-MRS medium, adjusted at
pH 3.5, was investigated by controlling the growth temperatures at 25, 30, 32,
37, 45, 50 and 55°C. The results from measuring the lactic acid indicated
that there was an increase in its as the temperature increased from 25 to 32°C
and a further increase than 32°C resulted in a slight improvement for production
of lactic acid L. casei culture (Fig. 2). At this particular
temperature 32°C, L. casei had the highest production of lactic acid
and protein content, 8.28 g L-1 and 1.43%, respectively, as well
as the lowest final pH 3.69 (Fig. 2). Lactic acid concentration
was in the middle concentration at temperature range of 37-50°C, except
low lactic acid concentration at 55°C (Fig. 2). In agreement
to this result, Hujanen and Linko (1996) and Petrov
et al. (2008) have reported the optimal incubation temperature for
production of lactic acid by L. casei and L. lactis subsp. lactis
B84, respectively, was at 33°C. Also, In contrast, a very high range of
temperature, 37°C, was detected for lactic acid production with L. casei
(Linko and Javanainen, 1996). Consequently, 32°C
papered to be an optimum cultivation temperature for lactic acid production
by the L. casei in LPW-MRS medium.
Incubation period: To study the reaction time required for lactic acid production, LPW- MRS L. casei culture medium were taken at 0, 1, 2, 3, 4, 5, and 6 day. The reactions were carried out in 250 mL Erlenmeyer flasks each containing 100 mL of the mixed suspension at pH and temperature, 3.5 and 32°C, respectively.
As shown in Fig. 3, the lactic acid concentration gradually increased with the increase in the incubation time. The maximal concentration of lactic acid and protein content, 6.57 g L-1 and 1.01%, respectively, following the lowest final pH 3.30 was obtained at 4 day, and there was no further increase with an increase in incubation time (Fig. 3). In the present study it was observed that incubation period has remained, 4 days.
Our results are comparable to those obtained with, Lactobacillus amylophilus
GV6 (Naveena et al., 2005; Altaf
et al., 2006); Lactobacillus delbrueckii (John
et al., 2006), which had an optimal incubation period for production
of lactic acid after 5 days and with Lactococcus lactis subsp. lactis
B84 (Petrov et al., 2008) after 6 days.
|| Influence of incubation period on lactic acid production
|| Influence of nitrogen source on lactic acid production
Nitrogen source: Various nitrogen sources (sodium nitrate, potassium nitrate, ammonium sulfate and casein comparable to control) were compared with peptone, beef and yeast extract in terms of their efficiency for lactic acid production in MRS medium used above (maintaining the same level of elemental nitrogen).
Replacing the peptone and yeast extract containing MRS medium with beef extract based LPW-MRS medium resulted in a higher lactic acid and protein content 7.35 g L-1 and 1.13%, respectively, followed by final pH 3.44 (Fig. 4). None of these nitrogen sources gave lactic acid concentrations as high as that obtained with beef extract.
An attempt to reduce its amount, different concentrations had added with MRS
in basal LPW-MRS medium and the results pointed out that the highest lactic
acid yield was obtained at 1.6 g L-1 beef extract (data not shown).
L. amylophilus GV6 has shown good efficiency in utilizing red lentil
flour and yeast cells as substituents to commercial peptone and yeast extract
in SSF using wheat bran as substrate to reduce the cost of fermentation medium
(Altaf et al., 2006). Preliminary studies were
made on screening of cost effective nitrogen sources, of which red lentil flour
and yeast cells were selected to replace costly commercial peptone and yeast
extract in the modified MRS medium (Altaf et al.,
|| Influence of MnSO4 concentration on lactic acid
Senthuran et al. (1999) revealed that hydrolyzed
whey protein constituted a richer source of nitrogen influencing lactic acid
production by Lactobacillus casei.
Mel et al. (2008) indicated that the optimum
concentration of glucose and peptone for optimum bacterial growth rate and lactic
acid production in shake flask were 9.80 and 9.98 g L-1, respectively.
The optimum productivity of the lactic acid was 0.630 g L-1 h which
correspond to optimum growth rate of the bacteria at 0.341 h.
MnSO4 concentration: Effect of MnSO4 concentration
on lactic acid production was determined by adding different concentration of
MnSO4 g L-1 0.002, 0.004, 0.011, 0.02 and 0.04, with MRS
medium (eliminating MnSO4) in based LPW-MRS medium. In L. casei
culture medium deficient in MnSO4, the concentration of lactic
acid production was lower than in MnSO4-supplemented medium. As shown
in Fig. 5, the concentration of lactic acid and protein content
reached their maximum rate 8.51 g L-1 and 1.31%, respectively, followed
by lower final pH 3.65 in the presence of 0.011 g L-1 MnSO4.
Differ to this results, Ohkouchi and Inoue (2006) pointed
out that no decrease in lactic acid productivity occurred in manganese deficient
medium, when cells grown in a medium supplemented L. manihotivorans LMG18011
can therefore presumably accumulate manganese. Archibald
and Fridovich (1981) reported that some lactobacilli strains required high
concentration of manganese for growth. For example, L. plantarum accumulated
manganese to 30 mM (Archibald and Duong, 1984). It had
been known that lactobacilli strains were deficient in catalase activity, but
could grow in the presence of oxygen. Manganese has been recognized to act as
a scavenger of toxic oxygen species such as superoxide anion (O2¯)
or hydrogen peroxide by Gonzalez et al. (1989)
also recognized its ability to act as an inducer of MnSO4 activity.
In both cases, manganese provides a positive effect for the growth of L.
manihotivorans LMG18011 in a microaerophilic condition, to acquire protection
against reactive oxygen species.
Based on our chemical characterization of liquid potato waste (Table 2). However, our result indicated that Mn was an only deficient element, and concluded that Mn was an essential ferm entation factor for L. casei. When MnSO4 was added to MRS medium with LPW at least 0.011 g L-1, lactic acid production was relatively high.
Carbon source: The effect of some carbon sources as sucrose, glucose, galactose, soluble starch, potato starch, lactose and dextrose at the concentrations of 1.0% on lactic acid production by L. casei were examined in LPW-MRS medium as previously mentioned. The results in Fig. 6 showed that L. casei preferred galactose as carbon source for lactic acid production, followed by glucose and sucrose, while soluble and potato starch were poorly utilized. The maximum lactic acid concentration and protein content in the culture supernatant was, 16.09 g L-1 and 2.24%, respectively, as well as the lowest final pH 3.48 in the presence of galactose (Fig. 6).
This result was differ from those obtained by Senthuran
et al. (1999) and Ohleyer et al. (1985).
where lactose and glucose was the preferred substrate by L. casei and Lactobacillus
delbreuckii, respectively, moreover, Lu et al.
(2010) reported that, the acorn powder was the most excellent one for L.
rhamnosus HG 09 among the four carbon sources as it could enhance the L(+)-lactic
acid production with a satisfied productivity and yield. The results of the
present work indicated that a lower nitrogen, MnSO4 and carbon concentrations
in MRS result in a higher productivity of L(+)-lactic acid for Lactobacillus
casei EMCC 11093 and further reduction in production cost could be achieved.
In this study, liquid potato wastes were investigated as a nutrient resource for l (+)-lactic acid production. In the liquid potato wastes, the average contents of dry matter, total carbon and organic matter were 8.8 mg, 0.40 and 0.68%, respectively. While the ash content, TSS and protein were 227 mg, 1 and 0.14%, respectively and this result demonstrated that LPW from potato process industry containing a less concentration of useful materials and could become a key point for direct production of lactic acid from LP wastes.
To reduce the production cost, preliminary experiments were made on screening of cost effective MRS concentration with LPW for lactic acid production using six lactic acid bacteria and resulted in the lowest MRSs concentration should be added with LPW, to enhance lactic acid production was in a ratio of 20: 80% (v/v) respectively using the most efficient strain Lactobacillus casei EMCC 11093, where, this culture had the highest production of lactic and protein content, 7.78 g L-1 and 1.03%, respectively, as well as the lowest final pH 3.67.
The production of a notable and highly effective lactic acid, by L. casei EMCC 11093, was achieved in 4-day cultures, at temperature and pH of 32°C and 3.5, respectively. Under experimentally controlled conditions, the maximum yield of l (+)-lactic acid reached up to 16.09 g L-1 from LPW- MRS medium (with absence of peptone, yeast extract and glucose and presence of malt extract, galactose and manganes sulphate) which represented the most preferable nutritional conditions and indicated the feasibility of direct l (+)-lactic acid production from LPW.
