Research Article


Rapid Identification and Differentiation of Xanthomonas oryzae pv. oryzae Strain with Primer 16S-23S rDNA from the Rice Fields in Peninsular Malaysia



K. Keshavarz, K. Sijam, M.H. Zainal Abidin, H. Habibudin and E. Nazerian

Facebook Twitter Digg Reddit Linkedin StumbleUpon E-mail
ABSTRACT

Primer pairs XOR-F/XOR-R2 was used for rapid identification and differentiation of thirty strains of Xanthomonas oryzae pv. oryzae (Xoo) were collected from rice fields in Penang, Kedah, Selangor and Melaka during the period from 2008 to 2010. Purified DNA was extracted using a modified CTAB method and was used in the PCR. Four hundred and seventy bp product was amplified from DNA of 30 strain using XOR-F/XOR-R2 primer pairs. Sequence similarities of the intergenic region in the 16S-23S rDNA in the Malaysian strains were as high as 99-100%. Cluster analysis based on the sequencing shows that the strains are grouped one main cluster and four groups. The minimum role of varietal influence on strain variability is partly due to the almost homogenous planting of two popular rice varieties in Peninsular Malaysia during the period of the study. On the other hand, phylogenetic analysis by using intergenic region 16S-23S divided the strains into one main cluster and four groups. The first group is represented by isolates collected from Penang and the second groups from Selangor. The third and fourth groups represented strains collected from Melaka and Kedah, respectively. The present study confirmed that direct DNA extraction from infected rice tissue by using CTAB method, followed by PCR effective methods for the identification of Xoo. Further more the results indicated that strains differentiation may be affected by the geographical areas.

Services
Related Articles in ASCI
Search in Google Scholar
View Citation
Report Citation


  How to cite this article:

K. Keshavarz, K. Sijam, M.H. Zainal Abidin, H. Habibudin and E. Nazerian, 2011. Rapid Identification and Differentiation of Xanthomonas oryzae pv. oryzae Strain with Primer 16S-23S rDNA from the Rice Fields in Peninsular Malaysia. Asian Journal of Plant Pathology, 5: 93-99.

DOI: 10.3923/ajppaj.2011.93.99

URL: https://scialert.net/abstract/?doi=ajppaj.2011.93.99

Received: March 15, 2011; Accepted: May 24, 2011; Published: July 12, 2011



INTRODUCTION

The rice however, is frequently infected by several fungal and bacterial diseases. The Bacterial Leaf Blight (BLB) caused by Xanthomonas oryzae pv. oryzae (Gammaproteobacteria, Xanthomonadales, Xanthomonadaceae) is one of the most important bacterial diseases of rice (Mew et al., 1993). The disease spreads through dispersion of plant straw, wind, rain, hail, wild rice and weeds (Nino-Liu et al., 2006) irrigation water and seeds (Nyvall, 1999). Rice is the main host of Xoo which is also a seed-borne bacterium. Bacterial inoculum enter the plant tissues either through wounds or water pores (hydathodes) in the leaf and then travel systemically throughout the plant xylem (Nino-Liu et al., 2006). Bacterial leaf blight was first detected in Japan in 1884 but was only identified as a disease in 1922 (Mew et al., 1993). The disease then spread to other countries of the word (Ezuka and Kaku, 2000; OEPP/EPPO, 2007; Ghasemie et al., 2008). Plants that survive the infection are usually stunted and yellowish in colour. In older plants, the lesions would begin as water-soaked stripes on the leaf blades and eventually increase in length and width, turning yellow to greyish-white in colour, until the entire leaf dries up (Agrois, 1997). Infection by BLB could cause yield loss of up to 50% in tropical Asia (OEPP/EPPO, 2007). In 1988 and 1994, serious BLB outbreaks were reported in the states of Penang, Kedah, Selangor and Perak of Malaysia where more than 40% of the planted areas were infected with the disease, causing an estimated yield loss of about 10-50% (Saad et al., 2000). Biochemical tests (Ghasemie et al., 2008), Pathogenic race of Xoo (Adhikari et al., 1999), fatty acids (Chase et al., 1992) and metabolic profiling (Jones et al., 1993) have been employed as tools for detection of the pathogen. The genome of a Xanthomonas strain, KAC10331 has been sequenced (Dharmapuri and Sonti, 1999). Several researchers have used Polymerase Chain Reaction (PCR) technology as a tool to detect and study the variability of pathogenic bacteria (Li and de Boer, 1995). The 16S ribosomal DNA sequence has been used for deducing phyllogenic and evolutionary relationship among bacteria and other prokaryotes species (Weisburg et al., 1991).

Adachi and Oku (2000) used the primer pair XOR-F and XOR-R2 to amplify a fragment of the Intergenic Spacer Region 16S-23S rDNA of Xanthomonas species. However, molecular characterization and variability information of Xoo is still lacking in Malaysia. The objective of this study was rapid identification at molecular level by using the PCR method and differentiation among Malaysian isolates of Xoo based on sequences of the Intergenic Region 16S-23S rDNA of the bacterial genomes.

MATERIALS AND METHODS

Bacterial strains and culture conditions: The strains used in this study, isolation source, location and variety are shown in Table 1. These strains were already collected from different field of rice in Peninsular Malaysia in year 2008-2010 and confirmed as Xoo with PCR and sequencing by Keshavarz et al. (2010).

DNA extraction: DNA from collected samples were extracted by using the modified Cetyl Trimethyl-Ammonium Bromide (CTAB) method (Zhang et al., 1998).

Amplification of the intergenic region of the 16S-23S rDNA: DNA from symptomatic rice plants was employed as template in the PCR amplification by using the XOR-F (5'-GCATGACGTCATCGTCCTG-3') and XOR-R2 (5'-TCGGAGCTATATGCCGTGC-3') primer pair (Adachi and Oku, 2000). This primer pair is used to amplify a 470 bp fragment from the 16S-23S rDNA spacer region of Xoo. PCR reaction was performed in a 20 μL PCR mixture tubes. Each PCR reactions contained 1 μL of DNA template, 0.4 μL of 10 mM dNTP, 0.6 μL of 25 mM MgC l2, 2 μL of 10 X Taq polymerase buffer, 1 μL each primer (10 pmols each) and 0.3 μL (0.5 units) Taq DNA polymerase (Fermentas, Inc.). Samples were amplified through 29 cycles, each consisting of 30 sec at 95°C, 30 sec at 63°C, 1 min at 72°C with initial denaturation of 2 min at 95°C and final extension of 7 min at 72°C. Five microliter of each amplified PCR product was fractionated on a 1.5% agarose gel in 1X TBE buffer. Gel was stained with ethidium bromide and photographed under UV light (312 nm). PCR products were purified by using Qiaquick PCR Purification Kit (Qiagen, Hilden, Germany) and sent for sequencing.

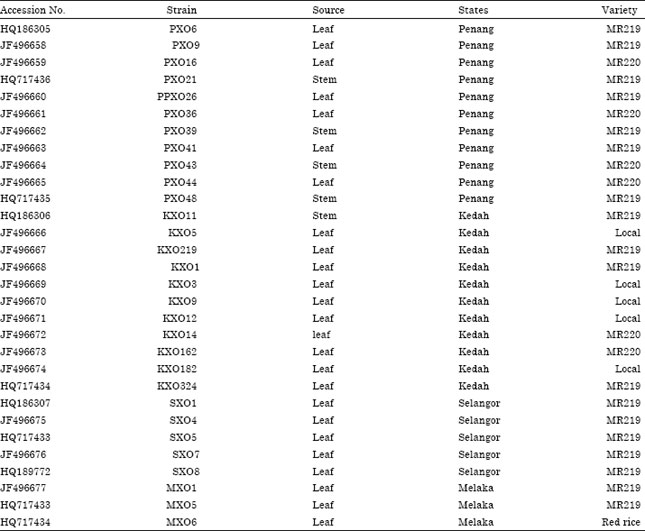

Table 1: Designations of Xoo isolates collected from rice fields in peninsular Malaysia
Image for - Rapid Identification and Differentiation of Xanthomonas oryzae pv. oryzae Strain with Primer 16S-23S rDNA from the Rice Fields in Peninsular Malaysia

Sequencing of the intergenic region of the 16S-23S rDNA: All purified PCR products were sequenced commercially (Medigen, Sdn, Bhd). All sequences amplified by using the XOR-F/XOR-R2 and was compared among each other and with the other sequences of Xanthomonas oryzae available in the National Center for Biotechnological Information (NCBI) database by using Basic Local Alignment Search Tool (Blast)(Altschul et al., 1990). A phylogenetic tree was constructed by using Neighbor-Joining method with default values with MEGA version 4 software (Tamura et al., 2007).

RESULTS AND DISCUSSION

Amplification of the intergenic region of the 16S-23S rDNA: All of the PCR products derived from the DNA templates from the 30 symptomatic samples were about 470 bp (Fig. 1). The presence of Xoo, BLB causing pathogen, on leaves and stems of rice plants could be detected by conducting Polymerase Chain Reaction (PCR), using the primer pairs XOR-F/XOR-R2 that amplify the intergenic spacer region 16S-23S of the rDNA of the Xoo (Adachi and Oku, 2000). On 1.5% agarose gel electrophoresis, strains of Xoo produced a band of 470 bp.

Image for - Rapid Identification and Differentiation of Xanthomonas oryzae pv. oryzae Strain with Primer 16S-23S rDNA from the Rice Fields in Peninsular Malaysia
Fig. 1: Agarose gel electrophoresis of the PCR products as amplified by the XOR-F /XOR-R2 primer pair. Lane M: 100 bp DNA ladder (100-1000bp). Lane C1: positive control (Xoo); C2: negative control asymptomatic plant), Lane 1- 14: showing the amplification products of approximately 470 bp size of isolates collected from rice fields in Peninsular Malaysia. The remaining 16 other isolates also produced amplification products of similar size

For the purpose of qualitative detection and confirmation of Xoo infection in the field, primer pairs XOR-F/XOR-R2 could be utilised. The pathogen was identified as causal agents of bacterial blight of rice, as appeared in less than three h (50 min for DNA extraction from plants, 75 for PCR and 30 min for electrophoresis) with Direct from plant tissue. The present study also confirmed that direct DNA extract from rice tissue by using modified CTAB method, followed by PCR are fast, convenient and cost effective methods for the detection and identification of Xoo with other reported of pathogen and another bacteria (Li and de Boer, 1995; Miyoshi et al.,1998; Adachi and Oku, 2000).

Strains differentiation based on intergenic 16S-23S rDNA sequence: All of the purified PCR products from respective isolates were sequenced. Strains have sequence similarities ranging from 99 to 100%. For example, the strain PX06 and strains Penang have a sequence similarity above 99 to 100% in database and Strains of Melaka and Selangor 99%, in database in NCBI. The sequences similarities between these isolates and the Xoo isolates from China (AY251OO4) and Japan (ABO26287) ranged from 98 to 100%.

The sequence of the isolates PXO6, KXO11 SXO1, SXO5, KXO324, PXO48, PXO21, SXO8, MXO5 and MXO6 have been deposited in the GenBank database under accession numbers HQ186305, HQ186306, HQ186307, HQ717433, HQ717434, HQ717435, HQ717436, HQ189772, HQ717433 and HQ717434, respectively. Recently other strains have been deposited in the GenBank database under accession number JF496658 until JF496677 (Table 1).

Phylogenetic trees were constructed by Neighbor-Joining method with default values with MEGA version 4 software (Tamura et al., 2007). MEGA4 bootstrap values illustrated on the phylogenetic dendrogram were estimated by the bootstrap sampling method (1000 replicates).

Phylogenetic analysis based on the intergenic spacer region 16S-23S showed that Malaysian isolates were placed in same clusters from the Xoo strains from China (AY251OO4) and Japan (ABO26287) but different groups. Figure 2 indicates sequence similarity range between strains 99 until 100% (scale. 01).

Cluster analysis indicated which the strains were placed into one main cluster and four groups. The first group were represented by isolates collected from Penang, namely, PXO21, PXO43, PXO9, PXO44, PXO16, PXO36 and PXO6 with 99.35% similarity. The second, third and fourth groups were collected from Selangor, Melaka and Kedah and similarity into strains were 99.48, 99.77 and 99.69%, respectively (Fig. 2).

Image for - Rapid Identification and Differentiation of Xanthomonas oryzae pv. oryzae Strain with Primer 16S-23S rDNA from the Rice Fields in Peninsular Malaysia
Fig. 2: Dendrogram constructed by the Neighbor-Joining method showing the phylogenetic relationships between the Malaysian isolates of Xanthomonas oryzae pv oryzae based on the sequence in the intergenic region between 16S-23S rDNA as amplified by the XOR-F/XOR. Bootstrap values greater than 40% (expressed as percentages of 1000 replications) are shown

On the other hand, the two reference sequences, the strain AY251OO4 from China and ABO26287 from Japan were placed in same main cluster groups from the Malaysian isolates but different group which indicated the presence of small variation within the country’s Xoo population as previously shown in the finding of Adhikari et al. (1995). Some strains from Penang and Kedah in to same groups. Two provinces are neighbours. The results indicated that strain differentiation may be affected by the geographical areas.

Location and host varieties might have some effect on strain variations. This is partly due to the fact that in recent years, or at least since 2007, more than 80% of the varieties grown in Peninsular Malaysia are represented by two sister lines MR219 and MR220 of similar genetic background (Alias, 2010). Study by Adhikari et al. (1999), indicated that high genotypic diversity of Xoo exists throughout Nepal. Strains of Xoo isolated from Nepal are pathogenically, genetically and geographically diverse. But Diversities of Xoo populations collected from traditional and improved rice cultivars were similar, suggesting that host diversity does not affect pathogen diversity. Ardales et al. (1996) with a comparison of different agroecosystems and cultivars in Philippines suggested host diversity did not strongly affect host diversity.

Changes in pathovar structure within the population might be due to several factors, including genetic changes (recombination or mutation in response to agricultural or environmental constrains) or migration from other geographical areas (Ochiai et al., 2000) were specifically present in a country but several strains of the pathogen were also commonly found in more than one country. Hence, these observations does not enable us to reach a conclusion that pathogen diversity is greatly affected by host diversity because Adhikari et al. (1995) studied on 308 strains of the pathogen from the Asian continent. They found evidence to suggest that both regional differentiation and pathogen migration between countries might have an effect. They noted that many groups of similar strains are several other factors, functioning at the time of sample collection which might have an influence in the host pathogen interactions.

CONCLUSION

The results shows that direct DNA extraction from infected rice tissue by using CTAB method, followed by PCR with primer pairs XOR-F/XOR-R2 is effective methods for rapid detection and identification of Xoo. The similarities of bacterial DNA sequencing were as high as 99-100%. Further more the results indicated that strains differentiation may be affected by the geographical areas in Malaysia.

ACKNOWLEDGMENT

We have special thanks to Department of Plant Protection of University Putra Malaysia (UPM) for helping and supporting to do this research.

REFERENCES

1:  Adachi, N. and T. Oku, 2000. PCR-mediated detection of Xanthomonas oryzae pv. oryzae by Amplification of the 16S-23S rDNA spacer region sequence. J. Gen. Plant Pathol., 66: 303-309.
Direct Link  |

2:  Adhikari, T.B., R.C. Basnyat and T.W. Mew, 1999. Virulence of Xanthomonas oryzae pv. Oryzae on rice lines containing single resistance genes and gene combinations. Plant Dis., 83: 46-50.
CrossRef  |  Direct Link  |

3:  Adhikari, T.B., C. Cruz, Q. Zhang, R.J. Nelson, D.Z. Skinner, T.W. Mew and J.E. Leach, 1995. Genetic diversity of Xanthomonas oryzae pv. oryzae in Asia. Applied Environ. Microbiol., 61: 966-971.
Direct Link  |

4:  Agrois, G.N., 1997. Plant Pathology. 4th Edn, Academic Press, New York, USA., pp: 849

5:  Alias, I., 2010. Breeding for yield improvement in rice. Proceedings of the National Rice Conference Damai Laut, Lumut, Perak, Malaysia.

6:  Altschul, S.F., W. Gish, W. Miller, E.W. Myers and D.J. Lipman, 1990. Basic local alignment search tool. J. Mol. Biol., 215: 403-410.
CrossRef  |  PubMed  |  Direct Link  |

7:  Ardales, E.Y., H. Leung, C.M.V. Cruz, T.W. Mew, J.E. Leach and R.J. Nelson, 1996. Hierarchical analysis of spatial variation of the rice bacterial blight pathogen across diverse Acro ecosystems in the Philippines. Phytopathology, 86: 241-252.
Direct Link  |

8:  Chase, A.R., R.E, Stall, N.C. Hodge and J.B. Jones, 1992. Characterization of Xanthomonas campestris strains from aroids using physiological, pathological and fatty acid analyses. Phytopathology, 82: 754-759.
Direct Link  |

9:  Dharmapuri, S. and R.V. Sonti, 1999. A transposon insertion in the gumG homologue of Xanthomonas oryzae pv. oryzae causes loss of extracellular polysaccharide production and virulence. FEMS Microbiol. Lett., 179: 53-59.
Direct Link  |

10:  Ezuka, A. and H. Kaku, 2000. A historical review of bacterial blight of rice. Bull. Nat. Inst. Agrobio. Res., 15: 1-207.
Direct Link  |

11:  Ghasemie, E., M. N. Kazempour and F. Padasht, 2008. Isolation and identification of Xanthomonas oryzae pv. oryzae the causal agent of bacterial blight of rice in Iran. J. Mol. Biol., 48: 53-63.
CrossRef  |

12:  Jones, J., A. Chase and G. Harris, 1993. Evaluation of the biolog GN micro plate system for identification of some plant-pathogenic bacteria. Plant. Dis., 77: 553-558.
Direct Link  |

13:  Keshavarz, K., K. Sijam, Z.A.M. Ahmad and H. Habibuddin, 2010. Fast direct detection and identification of Xoo with primer pairs XOR-F and XOR-R2. Proceedings of the My Bio Conference, Oct. 30-31, Malaysia, pp: 82-82

14:  Li, X. and S.H. de Boer, 1995. Selection of polymerase chain reaction primers from an RNA intergenic spacer region for specific detection of Clavibacter michianensis subsp sepedonicus. Phytopathology, 85: 837-842.

15:  Miyoshi, T., H. Sawada, Y. Tachibana and I. Matsuda, 1998. Detection of Xanthomonas campestris pv. citri by PCR using primers from the spacer region between the 16s and 23s rRNA genes. Ann. Phytopathol. Social. Japan, 64: 249-254.
Direct Link  |

16:  Mew, T.W., A.M. Alvarez, J.E. Leach and J. Swings, 1993. Focus on bacterial blight of rice. Plant Dis., 77: 5-12.
Direct Link  |

17:  Nino-Liu, D.O., P.C. Ronald and A.J. Bogdanove, 2006. Xanthomonas oryzae pathovars: Model pathogens of a model crop. Mol. Plant. Pathol., 7: 303-324.
CrossRef  |  Direct Link  |

18:  Nyvall, R.F., 1999. Field Crop Diseases. 3rd Edn., State University Press, Ames, Iowa, ISBN-10: 0813820790, pp: 1021

19:  Ochiai, H., O. Horino, K. Miyajima and H. Kaku, 2000. Genetic diversity of Xanthomonas oryzae pv. Oryzae strains from Sri Lanka. Phytopathology, 90: 415-421.
CrossRef  |  PubMed  |

20:  OEPP/EPPO, 2007. Xanthomonas oryzae. EPPO Bull., 37: 543-553.
CrossRef  |

21:  Saad, A., H. Habibuddin, I. Alias, O. Othman, S. Azlan and R. Zulkifli, 2000. Resistance status of released varieties after MR 84 against bacterial blight and the incidence on the disease in Muda irrigation scheme. Proceedings of the Conference on Plant Resource Management, Nov. 22-23, Malaysia, pp: 21-41

22:  Tamura, K., J. Dudley, M. Nei and S. Kumar, 2007. MEGA4: Molecular Evolutionary Genetics Analysis (MEGA) software version 4.0. Mol. Biol. Evol., 24: 1596-1599.
CrossRef  |  PubMed  |  Direct Link  |

23:  Weisburg, W.G., S.M Barns, D.A. Pelletier and D.J. Lane, 1991. 16S ribosomal DNA amplification for phytopathogenic study. J. Bacteriol., 173: 697-703.
Direct Link  |

24:  Zhang, Y., J.K. Uyemoto and B.C. Kirkpatrick, 1998. A small-scale procedure for extracting nucleic acids from woody plants infected with various phytopathogens for PCR assay. J. Virol. Methods, 71: 45-50.
CrossRef  |  Direct Link  |
