Research Article


Promoting Irrigation Water Utilization Efficiency in Superior Vineyards



A.S. El-Khawaga

Facebook Twitter Digg Reddit Linkedin StumbleUpon E-mail
ABSTRACT

The effect of different laterals and emitters frequency on growth, leaf content of N, P, K, Mg, S, Zn, Fe and Mn, berry setting, yield as well as physical and chemical characteristics of superior grapes were investigated during 2009 and 2010 seasons. Eight years old superior grape vines grown at 1.75x2.75 m apart in sandy loam soil in Qena Governorate under drip irrigation system with 4 L h-1 emitters were used in this study. One or two laterals and two to six emitters per vine were used. Results revealed that leaf area, main shoot length, leaf content of N, P, K, Mn, S, Zn, Fe and Mn, berry setting, yield, cluster weight as well as physical and chemical characteristics of the grapes markedly improved with increasing number of laterals from one to two and number of emitters from two to six. Increasing emitters' frequency from four to six on double laterals gave significant effect on the above mentioned characters. The best recommended treatment for increasing irrigation water utilization efficiency in Superior vineyards as well as improving yield quantitatively and qualitatively is double laterals and six emitters/ vine.

Services
Related Articles in ASCI
Search in Google Scholar
View Citation
Report Citation


  How to cite this article:

A.S. El-Khawaga , 2013. Promoting Irrigation Water Utilization Efficiency in Superior Vineyards. Asian Journal of Crop Science, 5: 125-138.

DOI: 10.3923/ajcs.2013.125.138

URL: https://scialert.net/abstract/?doi=ajcs.2013.125.138

Received: September 22, 2012; Accepted: November 30, 2012; Published: February 02, 2013



INTRODUCTION

Water management is a critical aspect of successful grape production in Egypt (Beaumont, 1993; Hassan et al., 1999). In new vineyards of reclaimed areas in Egypt and especially where irrigation water is scarce, trickle irrigation is increasingly being introduced. Water applied via trickle irrigation at the proper time and quantity can influence grape yields and fruit quality (El-Hady and Abd El-Kader, 2003). In addition, water can be a scarce resource in many areas and its efficient use must be a high priority (De Oliveira et al., 2009).

Thus, methods for scheduling irrigation are an important aspect of good vineyard management (De la Hera et al., 2007). One of the main advantages of drip irrigation is the opportunity to obtain high system uniformity. In general, drip irrigation systems often achieve over 90 % uniformity with proper design, installation and maintenance. This is in contrast to typical uniformities of 40-60 for gravity systems and 50-75% for sprinkler systems (Caswel and Zilbernian, 1985). Moreover (Zhang et al., 2004) noted that under China conditions and maize crop field, the drip Irrigation systems was more efficient than sprinkler irrigation and sprinkler irrigation was more efficient than border/furrow irrigation.

Wetting patterns are primarily dictated by soil texture, soil tilth, structure including soil compaction and chemistry. In general, water from an emitter exhibit more laterals, horizontal movement in heavier clay soils with more vertical, downward movement in lighter sandy soils (Gal et al., 2004).

The use of closely spaced emitters is rapidly gaining popularity thus, the ability to achieve superior wetting patterns more quickly than with wider spaced emitters (Gal et al., 2004). In this respect, the wetting patterns of emitters spaced at 12 and 8 inches, so, "wetted corridor of moisture" achieved down and across the bed after 30 h of irrigation with the 8 inches spacing. Therefore, "blackening of the beds" is highly desirable by many growers under modern irrigation systems, especially when setting transplants or germinating seeds, it was possible to increase soil water availability to enhanced vegetative growth.

In general, irrigation management should focus in the adoption of practices that enhance the efficient use of water so that other sectors can have more water for economic use (CAWMA, 2007).

Previous studies showed that saving irrigation water, increasing water utilization efficiency as well as controlling irrigation was accompanied with enhancing growth and fruiting of grapevines and other fruit crops. (REF) Using modern methods of irrigation is considered an important target for achieving the benefits of water. Caswel and Zilbernian (1985), Hepner et al. (1985), Araujo et al. (1995), McCarthy et al. (1997) and Gal et al. (2004).

Weather parameters, crop characteristics, management and environmental aspects are factors affecting evaporation and transpiration (Allen et al., 1998). At the same time a better management of water in irrigated agriculture it is necessary to enhance crop production and preserve soil and water quality (CAWMA, 2007).

The increment of water use from February until July may be attributed to the development of shoots, leaf area and clusters, as well as to the increase of evaporative demand. In addition the optimum water use of grapevine was 20, 35 and 23 L/vine/day from pruning to fruit set, fruit set to veraison and veraison to fruit maturation, respectively (Araujo et al., 1995). On other hand, Serman et al. (2004) observed that under different irrigation rates 100, 80, 70 and 60% of ETo, the amounts of water applied were 1060, 877, 763 and 649 mm year-1, respectively. On 3 year old Superior vines with trickle irrigation. At the same time, Ferreyra et al. (2004) studied the response of Cabernet Sauvignon grapes to four irrigation treatments. The first at 100% of crop evapotranspiration (ETc) throughout the second at 40% ETc throughout the season but the third with no irrigation until veraison and 100% ETc applied throughout the rest of the season and the fourth treatment at 100% ETc from bud burst until veraison and no irrigation throughout the rest of the season. The amount of water use were 4447, 1769, 1711 and 2700 m3 ha-1. for treatments numbers 1,2,3 and 4, respectively. Furthermore, Seif et al. (2007) noted that water consumptive use were 936.50, 749.16, 561.88 and 374.60 mm season-1. Whereas crop coefficient were 0.75, 0.61, 0.50 and 0.43 when vines were irrigated at 125, 100, 75 and 50% ETpan, respectively.

The objective of this study was therefore, to maximize water use efficiency through elucidating the effect of trickle irrigation system treatments on enhancing growth, yield and water utilization efficiency in Superior vineyard orchards under Qena conditions.

MATERIALS AND METHODS

Experimental site description: This investigation was carried out during 2009 and 2010 seasons on 75 vigor of uniforms eight year's old Superior grapevines in vineyard located at a private orchard in ELQenwia Qena Governorate. The selected vines were trained according to cane pruning system (66 eyes for each vine at 6 fruiting canesx9 eyes+6 renewal spursx2 eyes) using shape supporting gable system. The vines were planted at 1.75x2.75 meters apart which gave (831 vines fed.-1) Irrigation source was Nile water and its salinity was 0.36 (dS m-1) pH = 7.4 where, the soil is saline and Loamy sand. Mechanical, Physical and chemical characters of the tested soil were determined according to Richards (1954).

The successful production of grapes depended on irrigation management and irrigation water utilization efficiency (Kang and Zhang, 2004; Loveys et al., 2005; Stevens et al., 2008). Until now there is no recommended water requirement and irrigation scheduling in the new reclaimed land under drip irrigation system. Therefore, a preliminary study was conducted during 2006 to 2008 seasons to calculate the average irrigation requirement for grape vines grown in this area. So this study was designed to determine the best system of increasing water efficiency under drip irrigation system in the grape vine. The ability to estimate crop water use is important in semiarid areas such as Qena region where the production of crops are dependent upon the availability of irrigation water. In the present study it was favorably that to implement this work should be definite amount of water use through the average of the three previous study years from 2006 to 2008.

Crop water requirements: Applied water per vine and per feddan was calculated from ETo avg, according to equation of Doorenbos and Pruitt (1984) as:

Image for - Promoting Irrigation Water Utilization Efficiency in Superior Vineyards

Where:
ETc = Applied irrigation water (liter/tree/day)
ETo = Potential evapotranspiration (mm/day)
Kc = Crop coefficient from FAO56. and AgriMet Crop Coefficients (http://www.usbr.gov/pn/agrimet/cropcurves/WGRPcc.html) The crop coefficient is dependent upon stage of crop growth, canopy height, cover and architecture (Allen et al., 1998)
GC = Canopy cover represented by the shadow area average which ranged between 0.32 in Feb. to 0.70 from May till Sept

Canopy size measured by the amount of shade cast on the ground beneath grapevines growing areas (Walker and Stevens, 2004):

Plant area = 2.75x1.75. Ea = Irrigation system efficiency (%) = 85 % for drip irrigation
Pe = Effective rainfall (mm) = 0.30 rainfall
Leaching requirement (LR) = 0.36/2x12 = 0.015

The crop coefficient (Kc) values were 0.15 (Feb.), 0.45, 0.75, 0.45 and 0.35 in April, July and Oct. Nov., respectively under Qena conditions eight year old Superior grapevines and gable system supporting the results indicated that total applied water during the growing period was 10428.3 L/vine/year, while in unit of m it was 10.5 m3/vine per year. When using unit of area as Feddan (4200 m2) the one feddan contains 831 vine and crop water requirements was 8665.7 m3 fed-1.

Experimental treatments and design: Irrigation was done by drip system. All the selected vines received the usual horticultural practices that normally applies in vineyards except those dealing with irrigation.

The present experiment included the following five treatments:

T1: One lateral and two emitters/vine
T2: One lateral and three emitters/vine
T3: Double laterals and two emitters/vine
T4: Double laterals and four emitters/vine
T5: Double laterals and six emitters/vine

Each treatment was replaced three times, five vines per each. All the selected vines received the same irrigation water amount namely 10. 5 m3/vine/year. The distance between laterals and vines were 2.75 and 1.75 meters, respectively. Emitters discharge was four L h-1. Operating times (hrs) in the present five treatments are shown in Table 1.

Emitter discharge was 4 L h-1. Irrigation water amount was 9.4 m3/year/vine for all treatments. Complete randomized block design was adopted for statistical analysis of the present results. Main shoot length (cm.) was measured at the middle of May in the two of the eight main shoots in all directions of the vines.

Leaf area (cm2) was estimated in twenty leaves per vine from those leaves opposite to the first clusters on each shoot (middle of May) and leaf area (cm2) was recorded according to the following equations reported by Ahmed and Morsy (1999):

Leaf area (cm2) = 0.45 (0.79xW2) + 17.77

Where, W is the maximum diameter (cm2).

Petioles of these leaves were saved, oven dried and grounded then 0.5 g weight of each sample was digested using H2SO4 and H2O until clear solution was obtained. The digested solution was quantitatively transferred to 100 mL volumetric flask and completed to 100 mL by distilled water. Therefore, leaf content of N, P, K, Mg and S (as percentages) and Zn, Fe and Mn (as ppm) in the samples were determined according to the methods that outlined in Wilde et al. (1985).

Berry set % was calculated by dividing the number of attached berries in the caged clusters by the total number of flowers/ cluster and multiplying the product by 100.

Harvesting was conducted (middle June) when TSS/acid reached at least 24-26 (Weaver, 1976). The yield per vine was recorded in terms of weight (kg) and the number of clusters per vine. Five clusters were taken at random from the yield of each vine for the determination of cluster weight (g) as well as the following physical and chemical characteristics of the grapes.

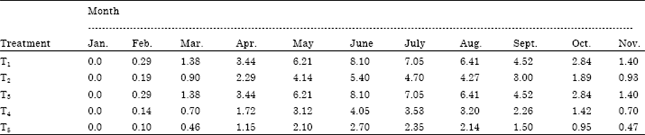

Table 1: Operating times (h) in the five trickle irrigation system during the period 2009 and 2010
Image for - Promoting Irrigation Water Utilization Efficiency in Superior Vineyards

Percentage of shot berries by dividing number of small berries by total number of berries per cluster and multiplying the productx100
Percentage of total soluble solids in the juice
Percentage of total acidity (expressed as g. of tartaric acid/100 mL of juice) by titration against 0.1 N NaOH using phenolphthalein as indicator (AOAC, 1995)
Total soluble solids/acid
Percentage of total sugars in the juice (AOAC, 1995)

Water utilization efficiency (WUE) yield kg m-3 water was estimated by dividing total yield per vine by applied water (m3/vine/year).

Statistical analysis: All the obtained data were tabulated and subjected to the proper statistical analysis according to Mead et al. (1993) using new LSD test at 5% for comparing between means of all treatments.

RESULTS AND DISCUSSION

Meteorological data: Qena Governorate located in South Egypt (Longitude 32.44, latitude 26.11 and 74.2 meter above sea level). Meteorological data were collected for a period of three years (2006-2008) of the studied area in order to detect the effect of different laterals and emitters frequencies on growth “or yield”, leaf contents of representative macro and micro nutrients, berry setting % and phonological characteristics of Superior vineyards’. The soil of the studied area has loamy texture, some other physicochemical properties of studied area are given in Table 2 and 3.

Table 4 shows the average three years of climatic data from 2006 to 2008 belonged to Qena area which collected from the meteorological station of South Valley Uni., reference evapotranspiration (ETO).

Data in Table 5 indicated that in Qena region the Mean of three years ETo (mm month-1) registered highest ETo of 636 mm in June, but the lowest in December, 186 mm, while the total mean for the three years (2006 to 2008) recorded 4969.4 mm year-1. In the 2009 and 2010 seasons this average for the three years of ETo was used as a basis for water use during the two seasons.

Table 2: Some initial physical properties of the studied soil
Image for - Promoting Irrigation Water Utilization Efficiency in Superior Vineyards

Table 3: Some initial chemical properties of the studied soil
Image for - Promoting Irrigation Water Utilization Efficiency in Superior Vineyards

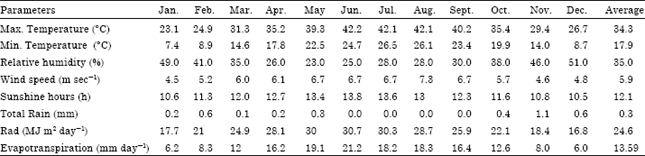

Table 4: Meteorological data of Qena region average of three years (2006 to 2008)
Image for - Promoting Irrigation Water Utilization Efficiency in Superior Vineyards

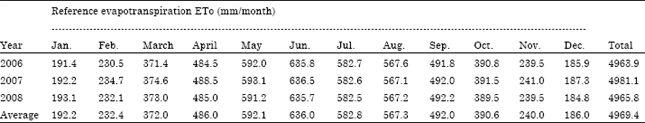

Table 5: Average evapotranspiration ETo for Qena region during 2006 to 2008 seasons
Image for - Promoting Irrigation Water Utilization Efficiency in Superior Vineyards

The data (Table 6) represented the average water consumptive recorded 10.5 m3/year/vine under Qena conditions in 2009 and 2010 seasons, the mean of evapotranspiration of the three years prior to this study were used. Data in Table 3 showed that the highest value of evapotranspiration in June was 21.2 mm day-1 which resulted in water consumptive of 64.8 L/day/vine, the lowest values of evapotranspiration were recorded in Jan, and Dec (6.2 and 6.0 mm day-1, respectively) without irrigation. Meanwhile, water consumptive recorded 11.1, 27.48, 49.7, 56.42, 51.24, 36.1, 22.7 and 11.2 L day-1 in Mar., Apr., May, Jul., Aug., Sep., Oct. and Nov., respectively. As a result, Grapevine water use and Kc started from Feb. to Nov. This findings were in agreement with that of http://www.usbr.gov/pn/agrimet/cropcurves/WGRPcc.html and Seif et al. (2007) who noted that the amount of irrigation water of 5, 11, 19, 33, 37, 34, 30, 26, 18 and 13 L/day/vine can be applied during February up to November, respectively. So the previous results were in agreed with Serman et al. (2004), Ferreyra et al. (2004) and Teixeira et al. (2007).

In general, under arid climates evapotranspiration is above 200 mm year¯1, so the total amount of water required for irrigation varies from climate to climate (De Oliveira et al., 2009). furthermore, crop growth and second yield are not possible without irrigation after the final grape product (Martin and Gilley, 1993; Williams and Matthews, 1990). Meanwhile Saayman and Lambrechts (1995) observed that WUE can be improved by drip irrigation system which was more effective than sprinkler irrigation. Moreover, saving of WUE of about 25% may be due to a reduced wetted soil volume under sandy soil. The optimum response was obtained when irrigation of about 90 mm at veraison in Barlinka grapes. Also Caswel and Zilbernian (1985), Zhang et al. (2004) and De la Hera et al. (2007) noted that drip irrigation systems often achieve over 90% uniformity with proper design, installation and maintenance. This is in contrast to typical uniformities of 40-60 for gravity systems and 50-75% for sprinkler systems. In this respect Teixeira et al. (2007) they revealed that the accumulated actual Evapotranspiration (ET) from pruning to harvest in wine grape was 438 and 517 mm for the first and second Growing cycles, respectively. In addition, table grape consumed less water than wine grape (393 and 352 mm) for the first and second growing seasons, respectively. This result was due to the shorter crop stages.

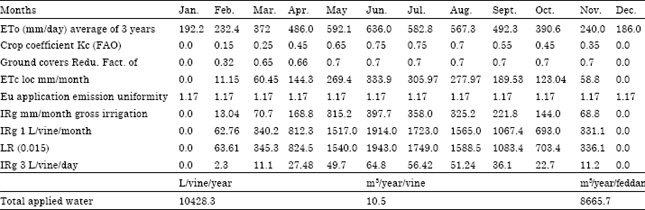

Table 6: Average vineyard evapotranspiration ETo and water use for Qena region from 2006 to 2008
Image for - Promoting Irrigation Water Utilization Efficiency in Superior Vineyards

On the other hand, these results were not in agreement with those obtained by Cuevas et al. (2007) which observed that flowering was advancement under low water irrigation. This result may be due to modifications in the plant hormonal balance due to root signal which eventually led to earlier flower induction.

According to these results, using drip irrigation system were studied using amount of water of 8665.7 m3 year-1 on eight year's old Superior grapevines grown at 1.75x2.75 m apart in sandy loam soil under Qena conditions. The number of laterals and emitters per vine ranged from one to two and from two to six/vine, respectively. The merit was enhancing irrigation water utilization efficiency in Superior vineyards.

Leaf area and its content from N, P, K, Mg, S, Zn, Fe and Mn in the leaves: Data in Table 7 clearly show that leaf area significant differs with respect to number of laterals and emitters per vine and its content of N, P, K, Mg, S, Zn, Fe and Mn. Increasing frequencies of laterals from one to two and at the same time number of emitters from two to four significantly affect the leaf area. In this respect, the highest value was observed in (T5) using irrigation treatment, double laterals and six emitters/vine with 87.0 and 79.5 cm2 in the first and second seasons, respectively. At the same time (T4) of Double laterals and four emitters/vine were less effective but not significantly different from (T5) during the successive seasons. Meanwhile the lowest values in leaf area were obtained in (T1) with One lateral and two emitters/vine which recorded 71.1 and 72.2 cm2 in the first and second seasons, respectively. However, T3 recorded the intermediate value of 74.5 and 77.5 cm2 under drip irrigation with Double laterals and two emitters/vine it recorded during the first and second seasons, respectively.

From the above mentioned results it could be concluded that the optimum release of water under wetted area that saved their surely reflected on supplying the vines with their requirements from water and nutrients at different stages of growth and grape development and these explain the present effects of increasing number of laterals and emitters for each vine (Caswel and Zilbernian, 1985). These results are in agreement with those obtained by Hepner et al. (1985), McCarthy et al. (1997), Zhang et al. (2004), El-Hady and Abd El-Kader (2003), De la Hera et al. (2007), Teixeira et al. (2007), Stevens et al. (2008) and De Oliveira et al. (2009).

Also the data in Table 7 shows considerable differences in main shoot length as well as leaf content of N, P, K, Mg, S, Zn, Fe and Mn. Considering the number of laterals and emitters per vine. The results reveal that main shoot length gradually increased by increasing the laterals and emitters per vine.

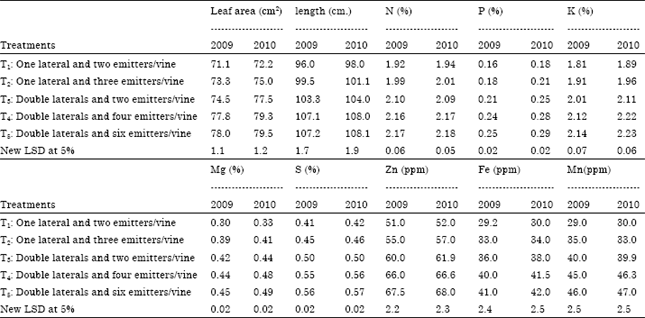

Table 7: Influence of laterals and emitters frequency on the leaf area, main shoot length and mineral content of Superior grapevines during 2009 and 2010 seasons
Image for - Promoting Irrigation Water Utilization Efficiency in Superior Vineyards

Therefore, the best result was observed when Superior vineyards irrigated by using Double laterals and six emitters/vine (T5) the values are 107.2 and 108.1 cm during the first and second seasons respectively. Under these conditions main shoot length was less than (T5) and no significant under drip irrigation by using (T4) Double laterals and four emitters/vine. Meanwhile the lowest value of main shoot length was observed with (T1) were 69.0 and 98.0 (cm) as well as (T2) which gives 99.5 and 101.1 (cm) in the first and second seasons. Intermediate main shoot length 103.3 and 104 (cm) was recorded in the Double laterals and two emitters/ vine (T3) during both seasons.

The leaf content of N, P, K, Mg, S, Zn, Fe and Mn. Table 7 Gave the same trend as in the leaf area and main shoot length. Thus, the use of double laterals with two emitters significantly enhance these parameters when compared to the application of one lateral with two emitter. Increasing the number of emitters from four to six on double laterals did not show significant effect on growth characters and the nutrients. The least values were recorded on the vines that received water as one lateral with two emitters/vine (T1). It gives the lowest macro nutrients (N%, P% and K%) in leaf (1.92 and 1.94% N), (0.16 and 0.18% P) and (1.81 and 1.89% K) during the first and second seasons, respectively, was also observed under this treatment. However, using double laterals and six emitters/vine(T6) gave the highest values of leaf mineral content which were 2.17 and 2.18% N, 0.25 and 0.29% P) and (2.14 and 2.23% K), for the two seasons, respectively. On the other hand, the immediate values were recorded in the same trend was also observed in the (Mg, S, Zn, Fe and Mn).

The differences between treatments may be attributed to increasing the number of laterals and emitters per vine which increased the wetted area, that helps on supplying the vines with their requirements from water and different nutrients elements by rooting system consequently, increased macro and micro elements and plant hormone accumulation during growth and grape development (Caswel and Zilbernian, 1985).

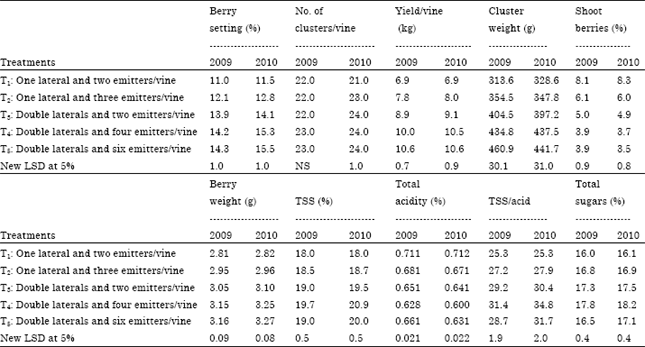

Table 8: Influence of laterals and emitters’ frequency on berry setting, yield, cluster weight, shoot berries as well as some physical and chemical characteristics of berries of Superior grapevines during 2009 and 2010 seasons
Image for - Promoting Irrigation Water Utilization Efficiency in Superior Vineyards

The present results agree with those of (Peacock et al., 1977; Hepner et al., 1985; McCarthy et al., 1997; Teixeira et al., 2007; Stevens et al., 2008).

Berry setting: The percentage berry settings is presented in Table 8. which showed that there was a gradual and significant increase in berry setting (%) of Superior grapevines with increase in number of laterals from one to two as well as increase in the frequency of emitters per vine from two to six. Berry setting (%) was significantly maximized with the use of two emitters per vine on double laterals as compared with using the same number of emitters with one lateral. The results varied significantly (LEVEL OF PROBABILITY) among treatments except the last two (Table 8) (four or six emitters situated on double laterals). In this study, the maximum values were recorded on vines that were irrigated drip using double laterals with six emitters (T5) conversely, using one lateral and two emitters/vine (T1) gave the lowest values of 11.0% and 11.5%) berry setting during the first and second seasons respectively, while the treatment T3 gave intermediate berry setting of Superior grapevines under Double laterals and two emitters/vine (13.9 and 14.1).

The beneficial effect of adjusting drip irrigation (selecting two laterals and four to six emitters/vine) on berry setting might be attributed to its positive effect on stimulating growth and vine nutritional status in favour of producing more berry on each cluster. Similar results were recorded by Hepner et al. (1985), Martin and Gilley (1993), Williams and Matthews (1990) and Stevens et al. (2008).

Number of clusters/vine: Response of the number of clusters/vine to the number of laterals and emitters per vine ranged from one to two and from two to six/vine, respectively. In Table 8 no significant differences on number of cluster/vine were observed among the five drip irrigation treatments during the first seasons. However, the two treatments (T4) and (T5) (four or six emitters situated on double laterals) recorded the highest values in this respect (23 and 23) clusters/vine in the first seasons. While the same comparison in the second season the significant clearly showed between laterals. The positive effective response was recorded in (T5), (T4) and (T3) they recorded (24 cluster/vine) per each treatments. On the other hand the lowest response was observed on in (T1) One lateral and two emitters/vine (21 cluster/vine). It would appear that the positive effect of increasing laterals and emitters per vine was more effective in increasing the supplying vines with their requirements from water and different nutrients elements observation lead to increased macro and micro elements and plant hormone accumulation during growth and grape development (Caswel and Zilbernian, 1985).

These results corroborated the findings of Hepner et al. (1985), Martin and Gilley (1993), Williams and Matthews (1990) and Stevens et al. (2008).

Yield and cluster weight: Varying the number of laterals and emitters per vine in drip irrigation system had significant effect on yield as expressed in yield/vine and cluster weight (Table 8). Increasing the number of laterals (from one to two) and emitters per vine (from two to six) had a significant and gradual increase on yield and cluster weight. Thus, the best results were observed in (T5) with double laterals and six emitters (10.6 kg vine-1) in both seasons. This was followed but (not significantly different) by (T4) with double laterals with four emitters (10.0 and 10.5 kg vine-1) during the first and second seasons, respectively. In this respect, the intermediate effect on yield and significant differences were noticed with (T3) double laterals with two emitters per vine (8.9 and 9.1 kg vine-1) during the first and second seasons, respectively. So, using double laterals/vine was preferable than using one lateral which recorded (6.9 and 6.9 kg vine-1) and (7.8 and 8.0 kg vine-1) under two and three emitters per vine during the first and second seasons, respectively. Increasing the number of emitters per vine from four to six on double laterals did not give appreciable increase in yield and cluster weight.

Cluster weight (g) in Table 8 presented that the application of double laterals with four emitters/vine (T4) reached (434.8 and 437.5 g cluster-1) during the two studied seasons, respectively. However, the best results was noticed in (T5) double laterals with six emitters reached (460.9 and 441.7 g cluster-1). In this respect, vines subjected to drip irrigation through one lateral and two emitters/vine (T1) gave significantly minimum cluster weight (g) of 313.6 and 328.6 during the two studied seasons, respectively intermediate values of 404.5 and 397.2 were recorded in T3 while T2 and three emitters/vine gave the highest values of 354.5 and 347.8 and significantly cluster weight (g) was noticed in (T3) Double laterals and two emitters/vine ()followed by (T2) One lateral and three emitters/vine (354.5 and 347.8) during the first and second seasons, respectively.

These results can be attributed to the positive action of adjusting drip irrigation system on berry setting, cluster weight and cluster number previously mentioned. This is supported by many earlier research findings Peacock et al. (1977), Hepner et al. (1985), Martin and Gilley (1993), Williams and Matthews (1990), Teixeira et al. (2007), Donaire et al. (1977), Stevens et al. (2008) and McCarthy et al. (1997). Also Glenn (2000) reported that when only a portion of the root zone is wetted, the water absorption by the wetted roots increases relative to the amount absorbed by the portion when the whole root systems is wetted thereby increasing the efficiency of water uptake. Conversely, these results are not in agreement with those obtained by Cuevas et al. (2007) which stated that flowering was advanced under low water irrigation. The result may be due to modifications in the plant.

Percent shoot berries: Percentage shoot berries gradually reduced with increasing laterals and emitters frequency. Using double laterals with six emitters per vine (T5) gave the lowest values in Shoot berries (3.9 and 3.5) while there was no significant reduction in %shoot berries when the number of emitters per vine increased from four (T4) to six (T5) on Table 8. These results were consistent in both seasons. In this respect, the highest values in shoot berries were recorded in one lateral and two emitters/vine (T1) with 8.1 and 8.3 during the first and second studied seasons, respectively. The enhancement in %shoot berries had a moderate but non-significant reduction in (T3) with double laterals and two emitters/vine. This was followed by (T2) (one lateral and three emitters/vine) during the two seasons.

The benefit of selecting the best system of drip irrigation on the availability of water to all plant organs at specific stage of berries development surely reflected on the reduction of shoot berries phenomenon. The findings of Weaver (1976), Williams and Matthews (1990), McCarthy et al. (1997), Glenn (2000) and Stevens et al. (2008) supported these results.

Physical and chemical characteristics of the berries: It is clear from the data in Table 8 that carrying out drip irrigation by increasing number of laterals from one to two as well as number of emitters from two to six per vine was significantly accompanied by higher quality of berries in terms of increase in berry weight (g). However, there was no significant response to influence of emitters frequency on the berry weight on (T5) and (T4) in descending order they recorded (3.16 and 3.26) and (3.15 and 3.25 g) in both treatments during the first and second seasons, respectively. In contrast statistical significant response was found in single lateral (T1 and T2) in ascending order which recorded (2.81 and 2.82 g) and (2.95 and 2.96 g) in both treatments during the tow studied seasons, respectively. On the other hand, a moderate effect was noticed in (T3) which registered (3.05 and 3/1 g) during the two studied seasons.

A look at total soluble solids, TSS/acid, total sugars and decreasing total acidity shows a slight insignificant promotion of both physical and chemical characteristics of the grapes with increasing number of emitters from four to six at double laterals. Thus, the carrying out of drip irrigation by using (T4) double laterals and four emitters per vine was the best treatments for total soluble solids. Furthermore, intermediate values in total soluble solids was recorded in (T5) and (T3) with (19.0 and 20.0) and (19.7 and 20.0) during the first and second seasons, respectively. In all the treatments, (T2) and (T1) recorded the lowest values in descending order both for 2009 and 2010 seasons.

The TSS/acid, total sugars and decreasing total acidity data are presented in Table 7. The best results of the TSS/acid and total sugars and decreasing total acidity, in Superior grapevines obtained by using drip irrigation with four emitters per vine on double laterals (T4) comparing with using any other treatments. At the same time, the total acidity was higher under (T1) followed by (T2) in descending order. Medium effects on total acidity were observed in (T3) and (T5) in ascending order. Similar trend was also observed in TSS/acid. On the other hand, total sugars recorded the average effects using (T3) and (T5) in descending order. In this regard, the lowest value was obtained in T1 followed by T2 in decreasing order. The results may be due to the beneficial effect of adjusting the method of drip irrigation by enhancing the availability of water especially during critical levels of plant development thereby enhancing the biosynthesis of carbohydrates and encouraging cell division (Winkler et al., 1974).

The results were in agreement with those by Weaver (1976), Williams and Matthews (1990), McCarthy et al. (1997), Glenn (2000) and Stevens et al. (2008).

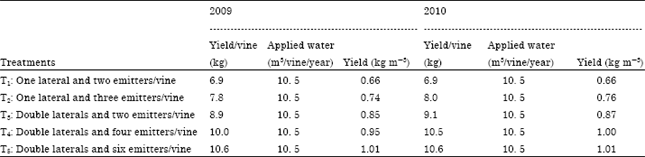

Table 9: Effects of laterals and emitters’ frequency on water utilization efficiency (WUE) in Superior vineyards during 2009 and 2010 growing seasons
Image for - Promoting Irrigation Water Utilization Efficiency in Superior Vineyards

Water utilization efficiency (WUE) on yield (kg m-3) water: Table 9 shows that WUE significantly increased with the increase of laterals from one to two and emitters from two to six per vine. Using (T2) which is one lateral with three emitters/vine significantly improved WUE over using (T1), one lateral with two emitters per vine. No significant promotion on WUE was observed when number of emitters was increased from four to six or double laterals. Therefore, the application of two laterals with six emitters/vine (T5) gave optimum results where WUE reached 1.01 kg yield m-3. The lowest WUE was observed by using (T1) one lateral with two emitters which registered only 0.66 kg yield m-3. Similar results were observed in the two seasons.

The great promotion on the yield and the same time for the reduction of water consumption obtained by (T5) followed by (T4) they leading to the enhance of WUE.

Similar results were reported by Araujo et al. (1995), McCarthy et al. (1997), El-Hady and Abd El-Kader (2003), Gal et al. (2004), De la Hera et al. (2007) and Stevens et al. (2008). In this respect Teixeira et al. (2007) observed that the accumulated actual evapotranspiration (ET) from pruning to harvest in wine grape was 438 and 517 mm for the first and second growing cycles, respectively. In addition, table grape consumed less water than wine grape with 393 and 352 mm for the first and second growing seasons, respectively. These results were however not in agreement with that obtained by Cuevas et al. (2007) which observed that flowering was advanced under low water irrigation. This result may be due to the modifications in the plant hormonal balance due to root signal which eventually led to earlier flower induction.

In conclusion, for the promotion of irrigation water utilization efficiency in Superior vineyards and at the same time improve yield quantitatively and qualitatively, it is suggested to use drip irrigation of double laterals and four or six emitters/vine.

REFERENCES

1:  Ahmed, F.F. and M.H. Morsy, 1999. A New methods for measuring leaf area in different fruit species. Minia J. Agric. Res. Dev., 19: 97-105.

2:  Allen, R.G., L.S. Pereira, D. Raes and M. Smith, 1998. Crop Evapotranspiration Guidelines for Computing Crop Water Requirements. Food and Agriculture Organization, Rome, Italy, pp: 297

3:  Araujo, F., L.E. Williams, D.W. Grimes and M.A. Matthews, 1995. A comparative study of young Thompson Seedless grapevines under drip and furrow irrigation. I. Root and soil water distributions. Sci. Hortic., 60: 235-249.
CrossRef  |

4:  AOAC, 1995. Official Methods of Analysis. 14th Edn., Association of Official Analytical Chemistry, Washington, DC., USA., pp: 490-510

5:  Cuevas, J., M.L. Canete, V. Pinillos, J.Z. Antonio, M.D. Fernadez, M. Gonzalez and J.J. Huso, 2007. Optimal dates for regulated deficit irrigation in Algerie loquat (Eriobortya japonica L.) cultivated in Southeast Spain. Agric. Water Manage., 89: 131-136.
Direct Link  |

6:  De Oliveira, A.S., R. Trezza, E.A. Holzapfel, I. Lorite and V.P.S. Paz, 2009. Irrigation water management in Latin America. Chilean J. Agric. Res., Vol. 69.
Direct Link  |

7:  Doorenbos, J. and W.O. Pruitt, 1984. In crop water requirements. Irrig. & Drain. Paper No. 24, FAO, Rome, Italy.

8:  Beaumont, P., 1993. Drylands Environmental Management and Development. Routledge, New York, USA

9:  Caswel, M. and D. Zilbernian, 1985. The choices of irrigation technologies in California. Am. J. Agric. Econ., 67: 224-234.
Direct Link  |

10:  CAWMA, 2007. Water for Food, Water for Life: A Comprehensive Assessment of Water Management in Agriculture. Earthscan and Colombo: International Water Management Institute, London, UK

11:  El-Hady, O.A. and A.A. Abd El-Kader, 2003. Nutrients uptake and water and fertilizers use efficiency by vine grapes grown on a newly reclaimed sandy area as affected by uniformity of emission. Egypt. J. Soil Sci., 43: 577-588.
Direct Link  |

12:  Ferreyra, R., V. Selles, A. Perlata and B. Valenzuela, 2004. Effect of water stress applied at different development periods of cabenert sauvignon grapevine on Production and wine quality. Acta Hortic., 646: 27-33.

13:  Gal, A., N. Lazorovitch and U. Shani, 2004. Subsurface drip irrigation in Gravel filled cavities. Vadose Zone J., 3: 1407-1413.

14:  Glenn, D.M., 2000. Physiological effects of incomplete root zone wetting on plant growth and their implications for irrigation management. HortScience, 35: 1041-1043.
Direct Link  |

15:  Hassan, M.M., M.A. Salama, Moustafa, M.M. El-Sayed and G.A.A. El-Samad, 1999. Water use, water use efficiency, crop coefficient and yield of olive trees as affected by irrigation regimes. J. King Abdulaziz Univ. Meteorol. Environ. Arid Land Agric. Sci., 10: 45-54.
Direct Link  |

16:  Hepner, Y., B. Bravdo, C. Loinger, S. Cohen and H. Tabacman, 1985. Effect of drip irrigation schedules on growth, yield, must composition and wine quality of Cabernet Sauvignon. Ann. J. Ebol. Vitic., 36: 77-85.
Direct Link  |

17:  Kang, S and J. Zhang, 2004. Controlled alternate partial root- zone irrigation: Its physiological consequences and impact on water use efficiency. J. Exp. Bot., 55: 2437-2446.
Direct Link  |

18:  Loveys, B.R., P.R. Dry, M. Stoll and M.G. Mccarthy, 2005. Using plant physiology to improve the water use efficiency of horticultural crops. Acta Hortic., 537: 187-197.

19:  De la Hera, M.L., P. Romero, E. Gomez-Plaza and A. Martinez, 2007. Is partial root-zone drying an effective irrigation technique to improve water use efficiency and fruit quality in field-grown field-grown winegrapes under semiarid conditions?. Agric. Water Manage., 87: 261-274.
Direct Link  |

20:  Martin, D.L. and J.R. Gilley, 1993. Irrigation Water Requirements. In: National Engineering Handbook: Section 15, Irrigation, USDA (Ed.). Chapter 2. USDA-Soil Conservation Service (SCS), Washington, DC., USA

21:  McCarthy, M.G., R.M. Cirami and D.G. Furkalicy, 1997. Rootstock response of Shiraz (Vitis vinifera L.) grapevines to dry and drip irrigated conditions. Aust. J. Grape Wine Res., 3: 95-98.
Direct Link  |

22:  Mead, R., R.N. Currnow and A.M. Harted, 1993. Statistical Methods in Agricultural and Experimental Biology. 2nd Edn., Chapman and Hall, London, UK., pp: 54-60

23:  Richards, L.A., 1954. Diagnosis and Improvement of Saline and Alkali Soils. Regional Salinity Laboratory, Washington, DC., USA

24:  Saayman, D. and J.J.N. Lambrechts, 1995. The effect of irrigation system and crop load on the vigour of Barlinka Table Grapes on a sandy soil, Hex River valley. S. Afr. J. Enol. Vitic., 16: 26-34.
Direct Link  |

25:  Seif, S.A., G.A. Abd-El Samad, M.E. Morsi and H.R. Hussein, 2007. Effects of different irrigation regimes on some grapevine cultivars grown under new reclaimed land conditions. 1-Water consumptive use, crop coefficient, water use efficiency and productivity. Ann. Agric. Sci. Moshtohor, 45: 353-368.

26:  Serman, F.V., M. Liotta and C. Parera, 2004. Effects of Irrigation deficit on Table grape Cv. Superior Seedless Production. Acta Hortic., 646: 183-186.
Direct Link  |

27:  Stevens, R.M., G. Harvey and D. Apsinall, 2008. Grapevines growth of shoots and fruit linearly correlate with water stress indices based on root- weighted soil metric potential. Aust. J. Grape. Wine Res., 1: 58-66.

28:  Teixeira, A.H.D.C., W.G.M. Bastiaanssen and L.H. Bassoi, 2007. Crop water parameters of irrigated wine and table grapes to support water productivity analysis in the Sao Francisco river basin, Brazil. Agric. Water Manage., 94: 31-42.
CrossRef  |

29:  Walker, R. and R. Stevens, 2004. Recent Developments in the Understanding of the Effects of Salinity on Grapevines. In: Salinity Impact on Lower Murray Horticulture- Milestone, Schrale, G. and T.K. Biswas (Eds.). Water Resources and Irrigation, SARDI, Adelaide, Australia, pp: 1-16

30:  Wilde, S.A., R.B. Corey, J.G. Layer and G.K. Voigt, 1985. Soils and Plant Analysis for Tree Culture. Oxford and IBH Publishing Co., New Delhi, India

31:  Williams, L.E. and M.A. Matthews, 1990. Grapevine. In: Irrigation of Agricultural Crops-Agronomy Monograph, Stewart, B.A. and D.R. Nielson (Eds.). ASA-CSSA-SSSA, Madison, WI, USA., pp: 1019-1059

32:  Zhang, Y., E. Kendy, Y. Qiang, L. Changming, S. Yanjun and S. Hongyong, 2004. Effect of soil water deficit on evapotranspiration, crop yield and water use efficiency in the North China Plain. Agric. Water Manage., 64: 107-122.
CrossRef  |  Direct Link  |

33:  Donaire, J., A.J. Sanchez-Raya, J.L. Lopez-George and L. Recalde, 1977. Studies physiological and biochemestry in olivier: I.variation in concentration de divers metabolites pendant son cycle evolutif. Agrochim, 21: 311-321.

34:  Weaver, R.J., 1976. Grape Growing. John Wiley and Davis, New York, London, Sydney, Tronto, pp: 160-175

35:  Peacock, W.L., D.E. Rolston, F.K. Aljibury and R.S. Rauschkolb, 1977. Evaluating drip flood and sprinkler irrigation of wine grapes. Am. Soc. Enol. Vitic., 28: 193-195.
Direct Link  |

36:  Winkler, A.J., A.J. Cook, W.M. Kliewer and L.A. Lider, 1974. General Viticulture. California University Press, Berkley Los Anglos, London, pp: 10-200
